Eaton PDG4XPXR30800B2N | 800A PXR10 LSI Power Defense Trip Unit

PDG4XPXR30800B2N

Eaton PDG4XPXR30800B2N Power Defense Trip Unit, 800A PXR10 LSI

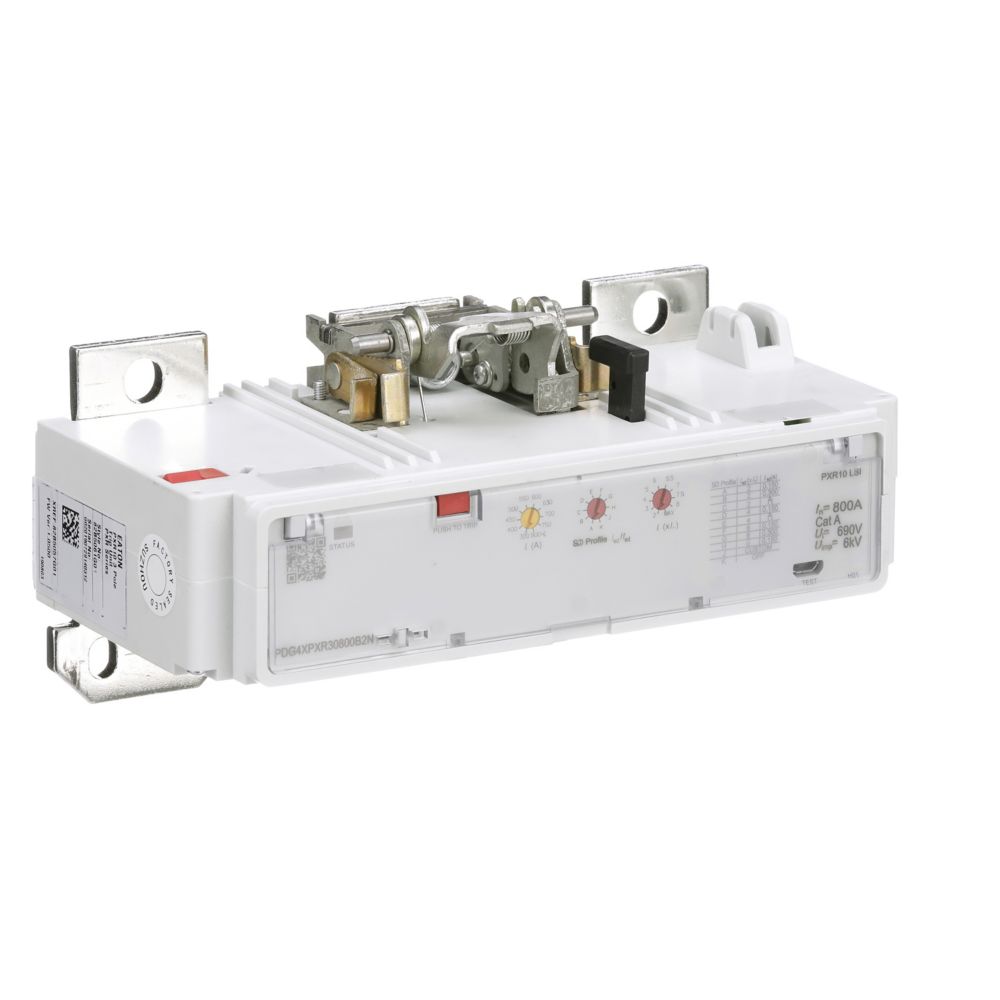

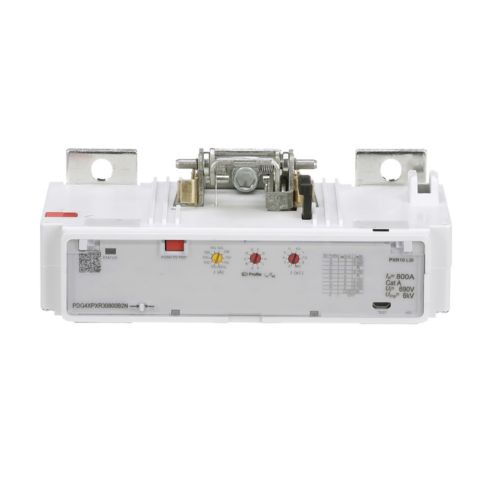

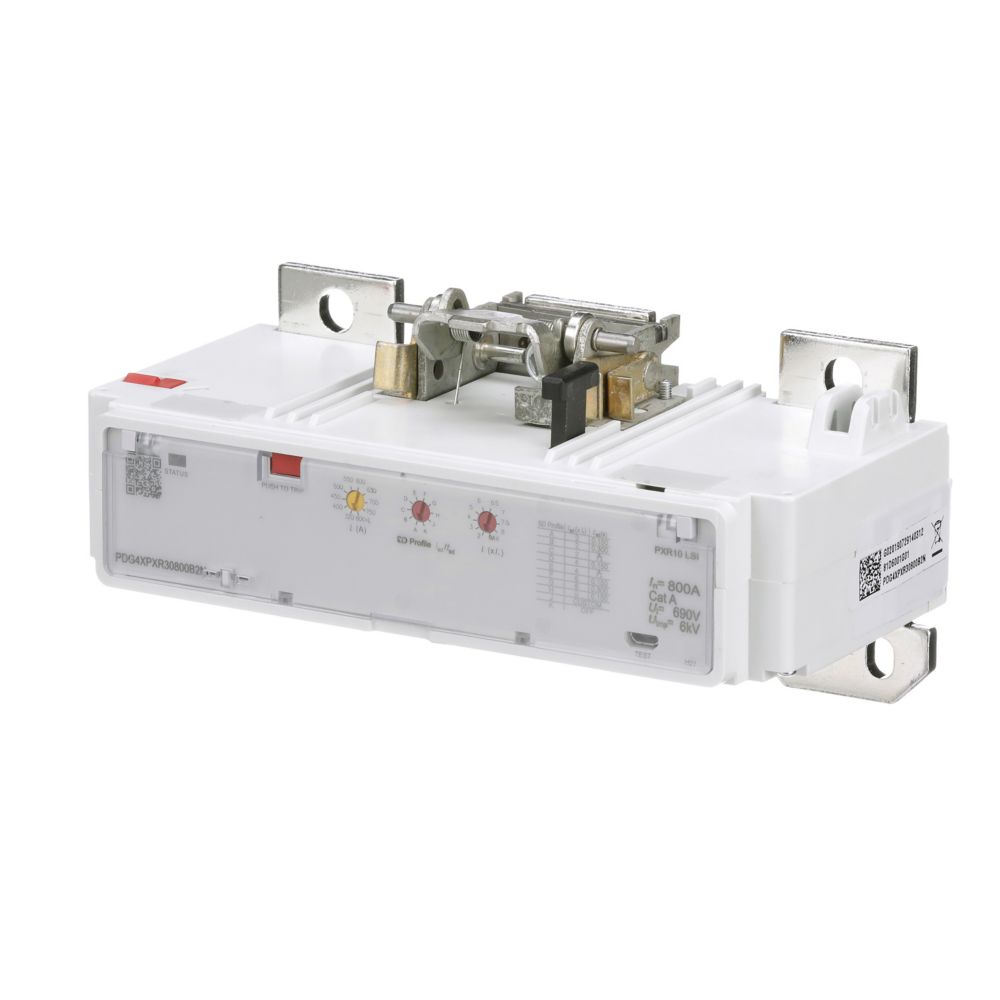

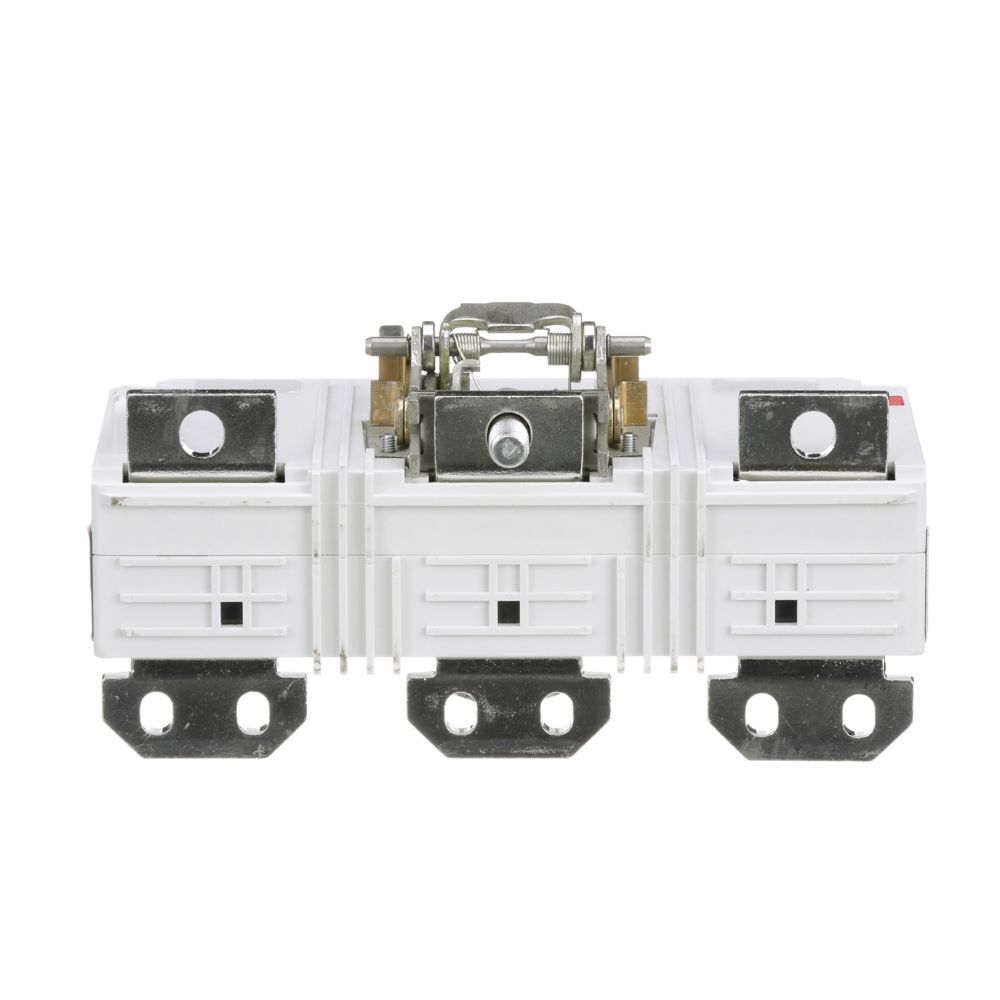

The Eaton PDG4XPXR30800B2N is an 800-amp, three-pole electronic trip unit from the Power Defense series. It is a Power Xpert Release (PXR10) module providing adjustable LSI (Long-time, Short-time, Instantaneous) protection for Power Defense Frame 4 (PD4 Global) molded case circuit breakers. This is a field-installable accessory trip unit, not a complete breaker, designed to standardize protection and simplify inventory across industrial and commercial distribution applications.

Key Specifications

• Manufacturer: Eaton
• Catalog Number: PDG4XPXR30800B2N
• UPC: 786679592434
• Product Type: Power Defense accessory trip unit (electronic release)
• Amperage Rating: 800 A
• Poles: Three-pole
• Voltage Rating: 600 V
• Trip Type: PXR10 LSI (Long-time, Short-time, Instantaneous)
• Frame: Power Defense Frame 4 (Frame J-K), PD4 Global
• Dimensions: 222.3 mm L x 139.7 mm H x 136.5 mm W (8.75 x 5.5 x 5.37 in)
• Weight: 1 kg (approx. 2.2 lbs)
• Certifications: UL 489, CSA, IEC 60947-2, CCC Marked
• Compliance: RoHS Compliant

Applications

This trip unit supports power distribution and equipment protection across manufacturing facilities, commercial buildings, data centers, and infrastructure projects. Its field-installable design allows distributors and facility teams to configure or upgrade Power Defense Frame 4 breakers without replacing the entire device, reducing required inventory and simplifying procurement.

Frequently Asked Questions

What is the Eaton PDG4XPXR30800B2N?

The PDG4XPXR30800B2N is an Eaton Power Defense electronic trip unit rated 800A, three-pole, with PXR10 LSI protection. It installs into a Power Defense Frame 4 molded case circuit breaker.

Is the PDG4XPXR30800B2N a complete circuit breaker?

No. It is an accessory trip unit (electronic release) for Power Defense Frame 4 breakers. It is not a standalone circuit breaker and requires a compatible PD4 breaker frame.

What does PXR10 LSI mean?

PXR10 refers to Eaton's Power Xpert Release electronic trip unit. LSI indicates the protection functions provided: Long-time, Short-time, and Instantaneous. This unit does not include integral ground fault (LSIG) protection.

What certifications does the PDG4XPXR30800B2N carry?

It is certified to UL 489, CSA, and IEC 60947-2, is CCC Marked, and is RoHS compliant.

What is the amperage and voltage rating?

The trip unit is rated for 800 amps at 600 volts, three-pole.

What is the warranty?

Eaton's standard selling policy applies: one year from the date of installation or eighteen months from the date of shipment, whichever occurs first.

Specifications

• Part Number: PDG4XPXR30800B2N
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Poles : 3
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Protection : Solid State
• Compatible Frames : PDG,PDG Frame 4

Product Data

• UPC : 786679592434
• GTIN : 00786679592434
• Dimensions : 222.3 mm x 139.7 mm x 136.5 mm (Length/Depth x Height x Width)
• Weight : 2.23 lb
• Certification : CCC Marked CSA IEC 60947-2 UL 489
