Eaton

PDG3X3TA400

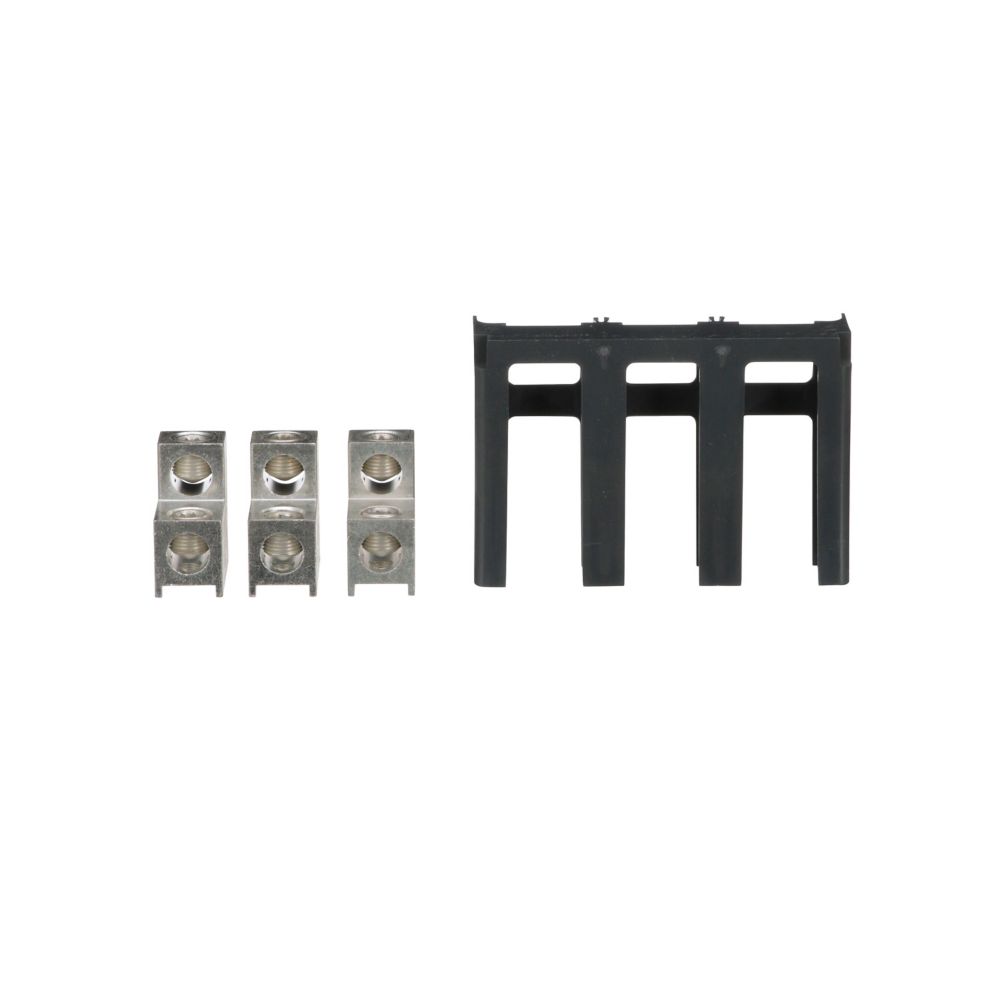

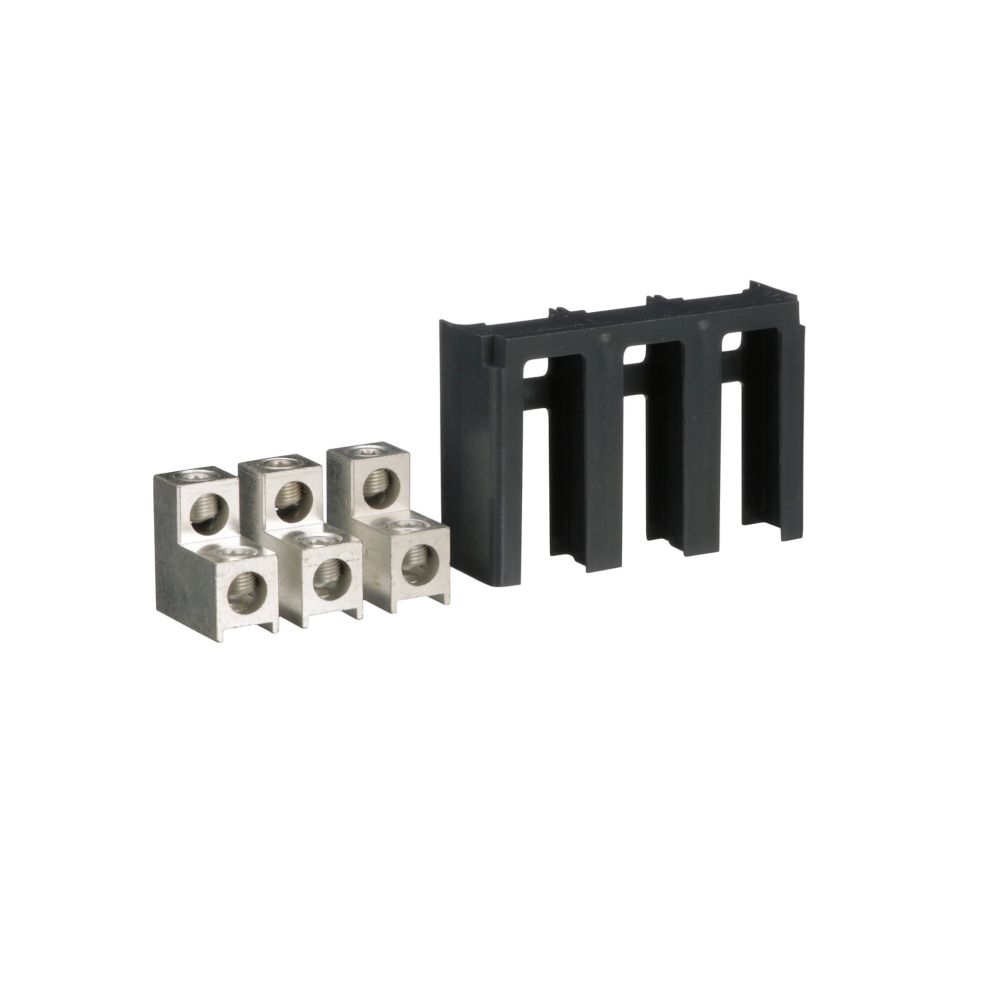

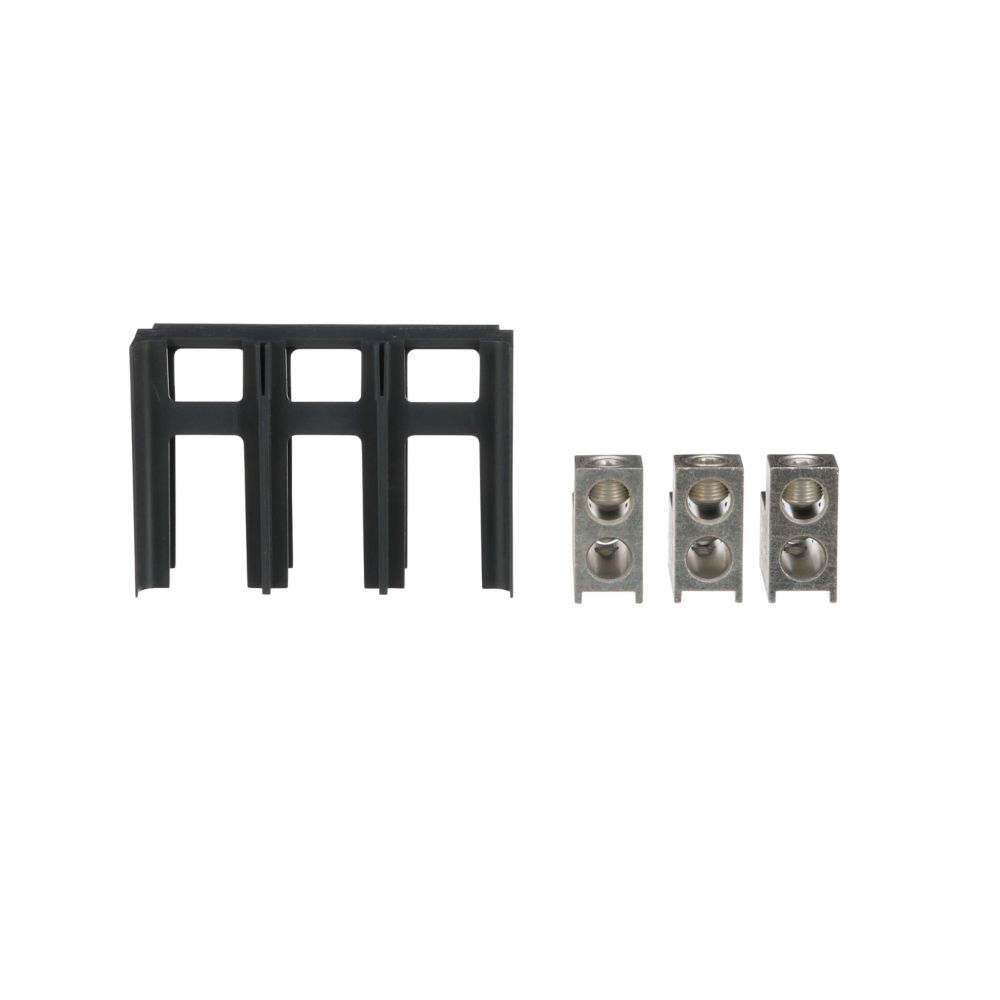

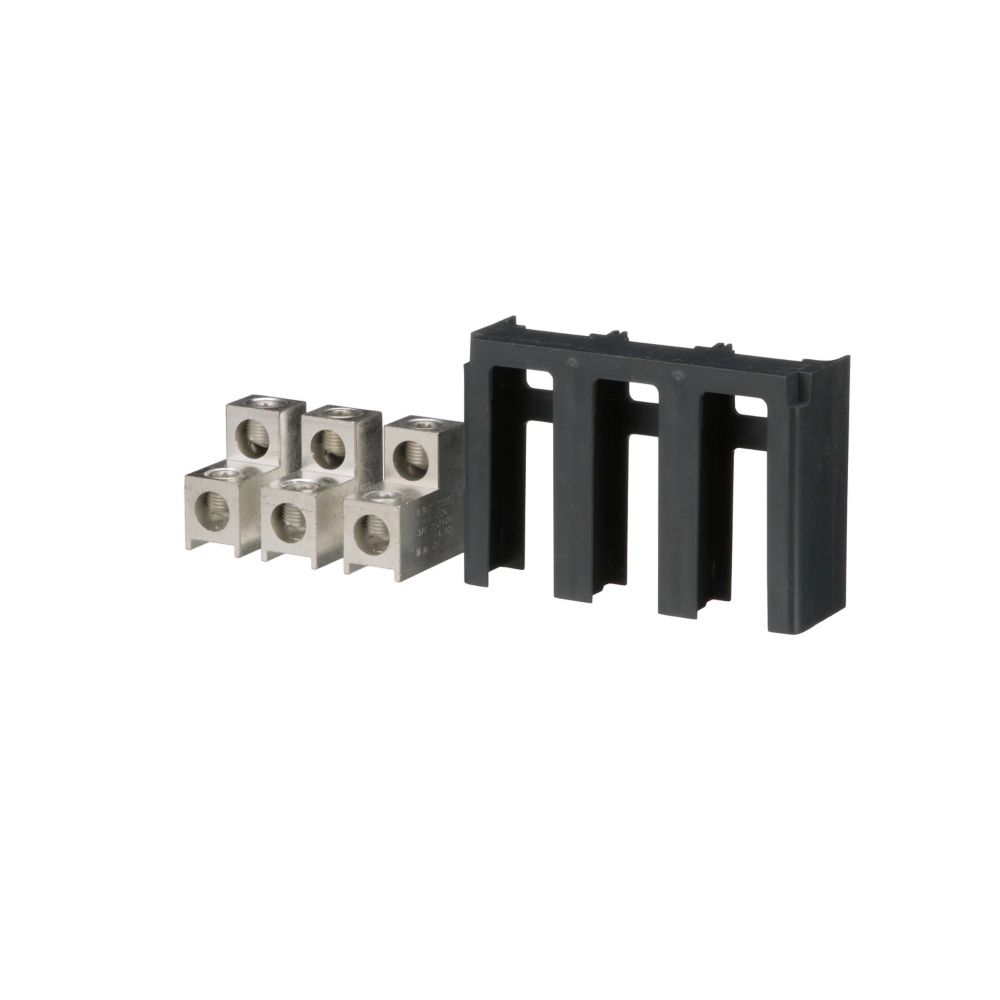

Eaton 400A Power Defense Terminal, Frame 3, Tunnel Terminal, Aluminum, Class A

Current: 400Poles: 3Voltage: 600V
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$306.50
Low inventory, please call (866) 377-3532 for stock check
Factory Lead Time: 69 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Eaton
Sub-Category
Lug Terminal Kit
Series
Power Defense Series
Frame
PDG
Rated current
400
Voltage
600V
Poles
3
Barrels
2
Standards
RoHS
Temp Rating
-13°F to 158°F (-25°C to 70°C)
MCM Size
250
Metal Type
Aluminum
Compatible Frames
PDG
UPC
786689318284
Show all specifications (4 more)
Dimensions
101.6 mm x 114.3 mm x 101.6 mm (Length/Depth x Height x Width)
Weight
1.1475896
Certification
UL, CSA, IEC, CCC
Wire Size
2x AWG 3/0 to 250KCmil
Product description & additional details

PDG3X3TA400


PDG3X3TA400 is an Eaton Power Defense terminal designed for 400A applications with a Frame 3 size and tunnel terminal type.This Eaton circuit breaker accessory features a Power Defense Frame J-K design compatible with PD3 Global breakers. It supports (2) AWG 3/0-250 aluminum wire connections and is rated Class A. The terminal is RoHS compliant and certified to CCC Marked IEC 60947-2, UL 489, and CSA standards.
    Key Specifications
    • Amperage Rating: 400 A
    • Frame Size: 3 (Frame J-K)
    • Wire Size: (2) AWG 3/0-250 Aluminum
    • Terminal Type: Tunnel Terminal
    • Series: Power Defense
    • Circuit Breaker Type: PD3 Global
    • Class: Class A
    • Certifications: CCC Marked IEC 60947-2, UL 489, CSA
    • Material: Aluminum
    • Mounting Type: Fixed/Plug-In/Drawout Compatible
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: PDG3X3TA400
  • Manufacturer : Eaton
  • Brand : Eaton
  • Category : Circuit Breaker
  • Item Subcategory : Lug Terminal Kit
  • Family : Power Defense Series
  • Type : PDG
  • Voltage : 600
  • Amperage : 400
  • Poles : 3
  • Temp Rating : -13°F to 158°F (-25°C to 70°C)
  • MCM Size : 250
  • Barrels : 2
  • Metal Type : Aluminum
  • Compatible Frames : PDG

Product Data

  • UPC : 786689318284
  • Dimensions : 101.6 mm x 114.3 mm x 101.6 mm (Length/Depth x Height x Width)
  • Weight : 1.1475896
  • Standards : RoHS
  • Certification : UL, CSA, IEC, CCC
  • Wire Size : 2x AWG 3/0 to 250KCmil
