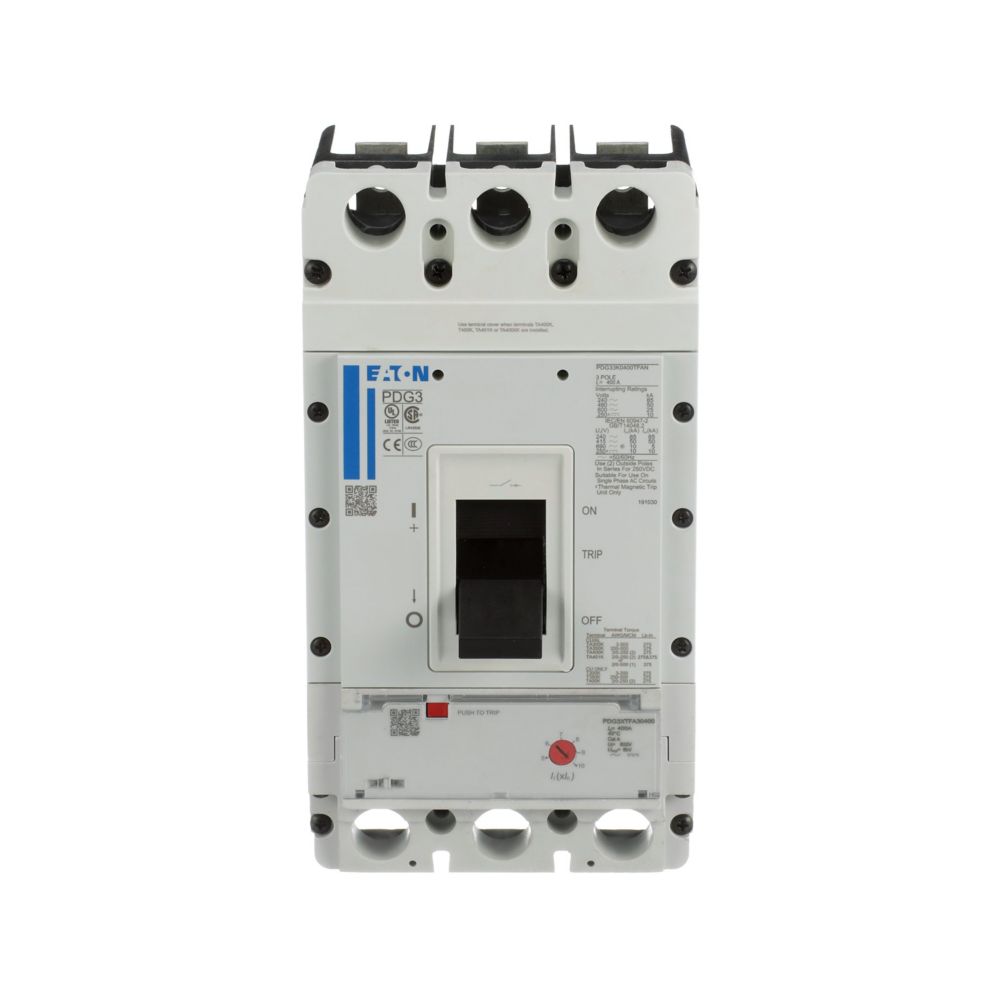

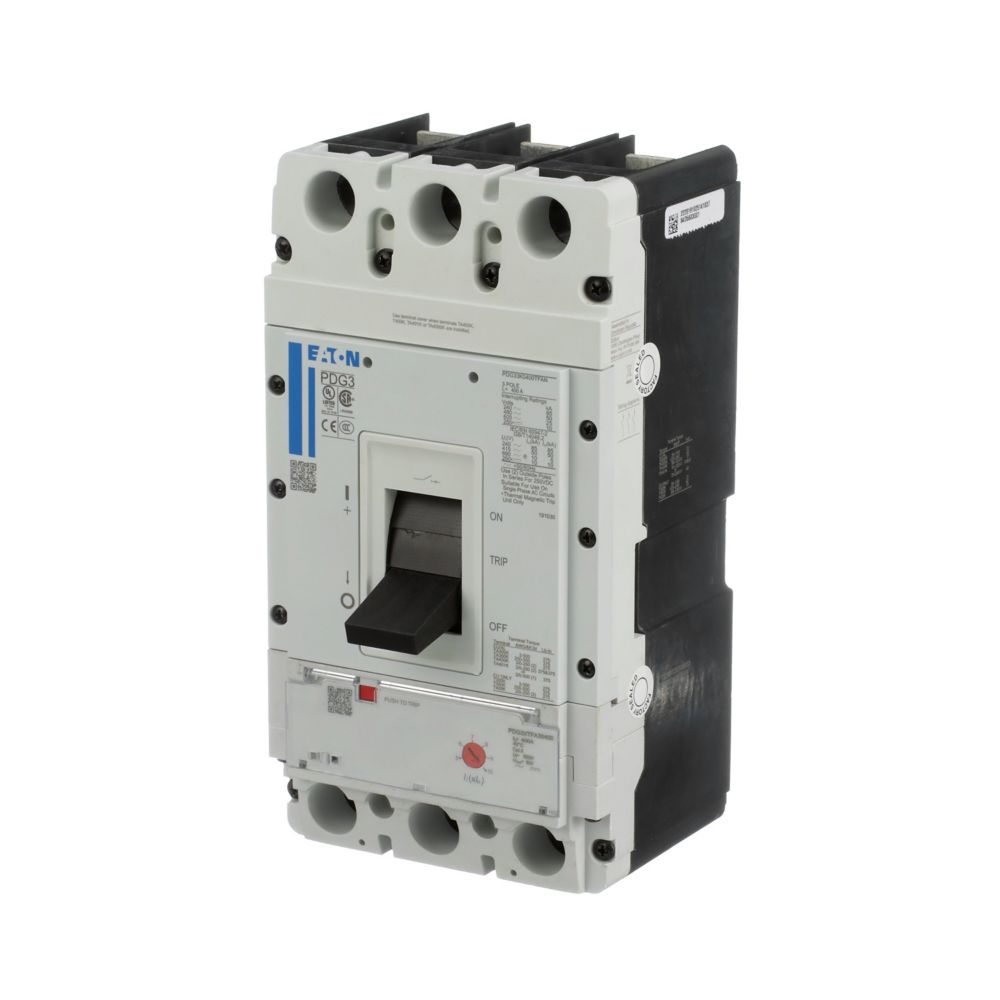

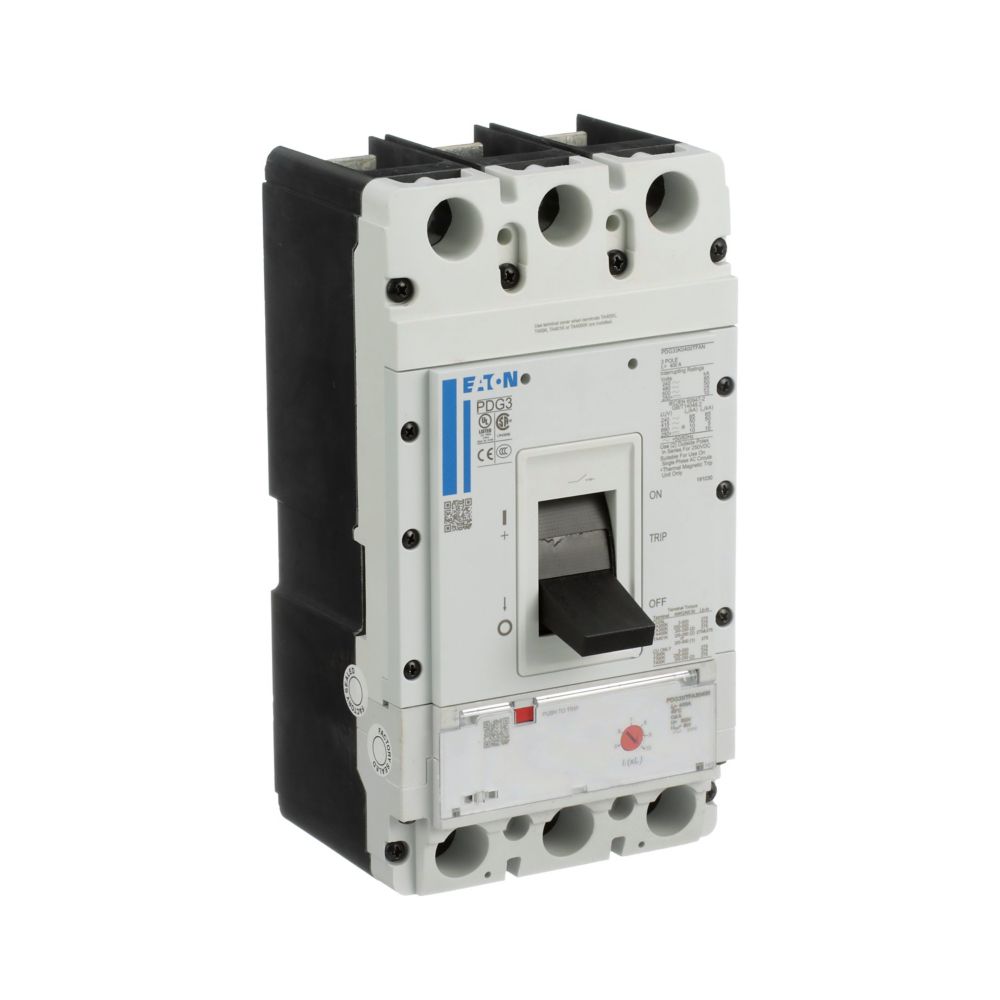

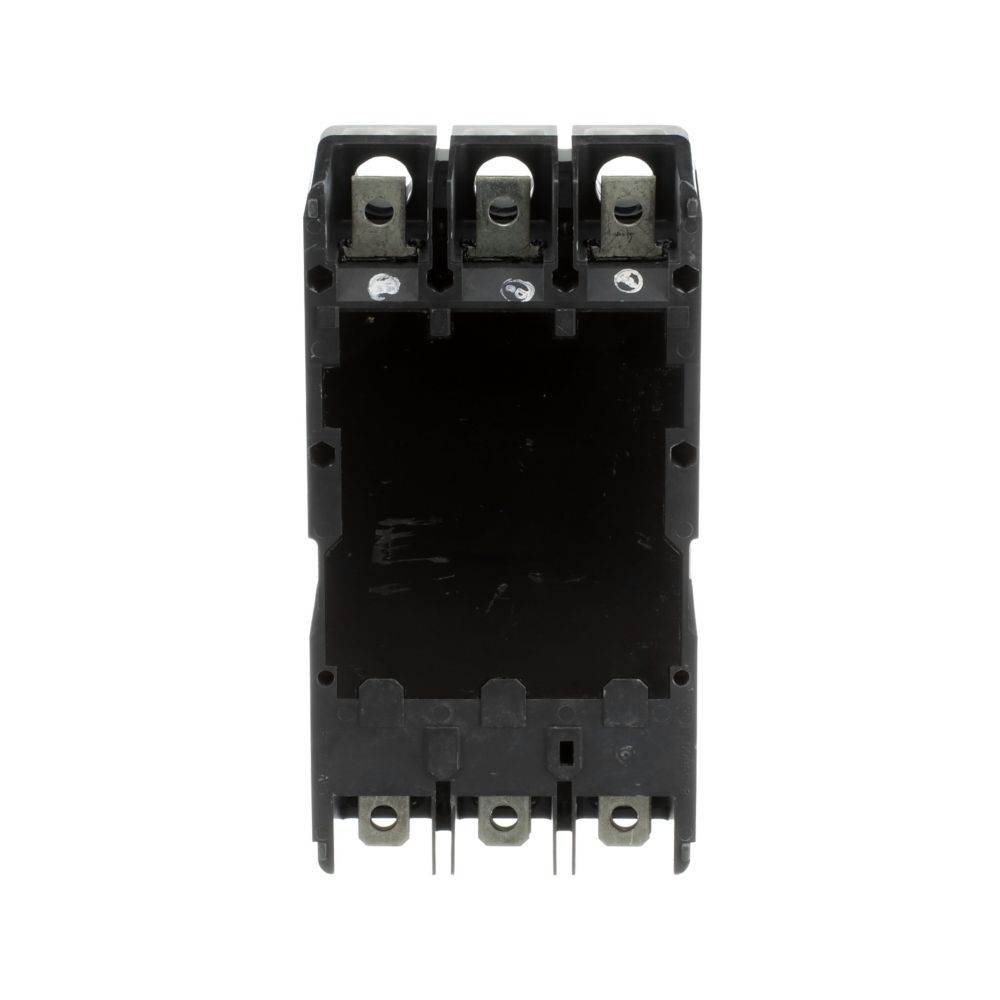

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Sub-Category
- Molded Case
- Series
- Power Defense Series
- Frame
- PDG
- Rated current
- 350
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 35kA@480V
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Terminals
- Standard Line and Load Side Lug
- Country of origin
- Dominican Republic
Show all specifications (5 more)
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- UPC
- 786679224014
- Dimensions
- 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
- Weight
- 12.5103
- Certification
- CCC, CSA, IEC 60947-2, RoHS, UL 489
Product description & additional details
PDG33G0350TFAN
PDG33G0350TFAN is a Power Defense molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This Eaton breaker features a 350A amperage rating, 600V AC voltage rating, and a three-pole configuration in a Frame 3 design. It is globally rated and suitable for fixed, plug-in, or drawout mounting with a thermal-magnetic fixed-adjustable trip unit. The breaker is RoHS compliant and meets Class A standards for safety and performance. This circuit breaker is engineered for durability and safety, with a robust interrupt rating and versatile mounting options. It is ideal for applications requiring dependable overcurrent protection and compliance with international standards. The Power Defense series offers advanced features for demanding environments, ensuring long-term reliability and ease of installation.
- Part Number: PDG33G0350TFAN
- Manufacturer: Eaton
- Series: Power Defense PD3 Global
- Frame: Frame 3
- Poles: Three Pole
- Amperage Rating: 350A
- Voltage Rating: 600V AC
- Interrupt Rating: 35kA at 480V
- Mounting Type: Fixed/Plug-In/Drawout
- Enclosure Type: IP2X
- Trip Unit: Thermal-Magnetic Fixed-Adjustable
- Certifications: RoHS Compliant, Class A
Specifications
- Part Number: PDG33G0350TFAN
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 350
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679224014
- Country of Origin : Dominican Republic
- Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
- Weight : 12.5103
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
