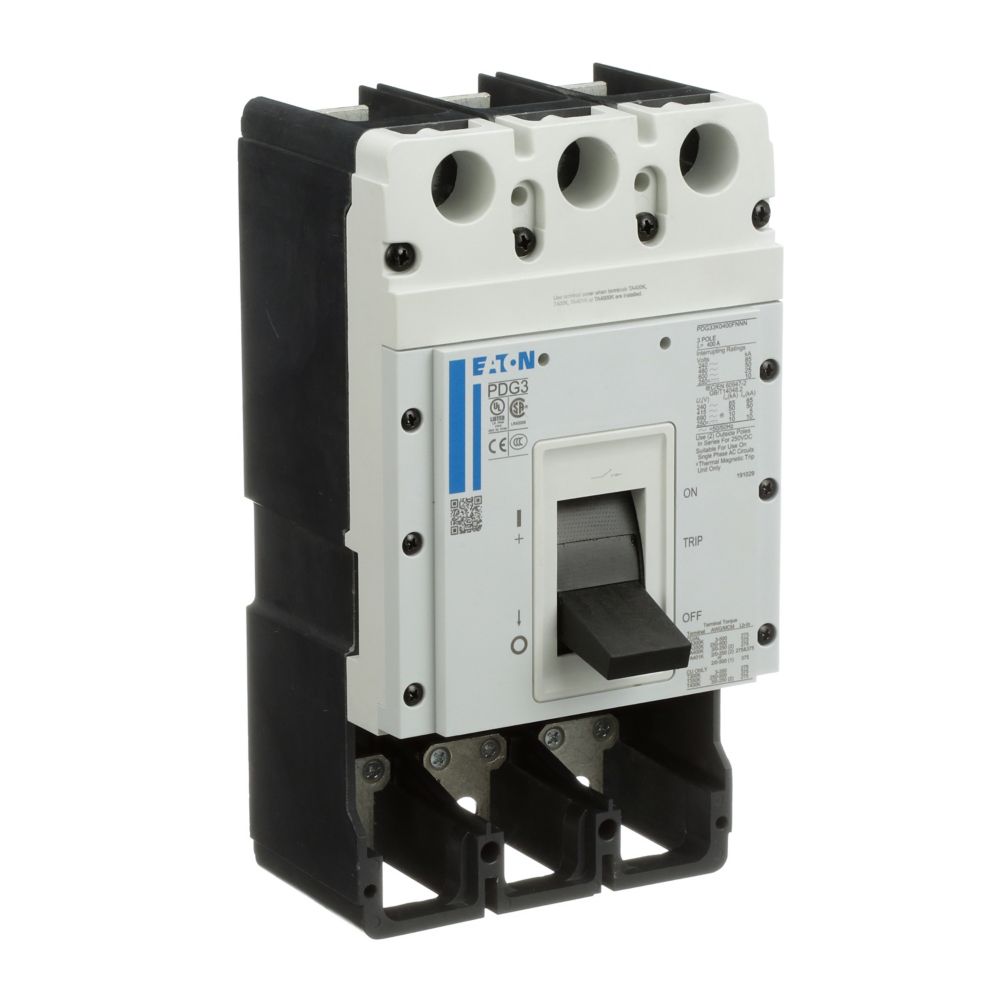

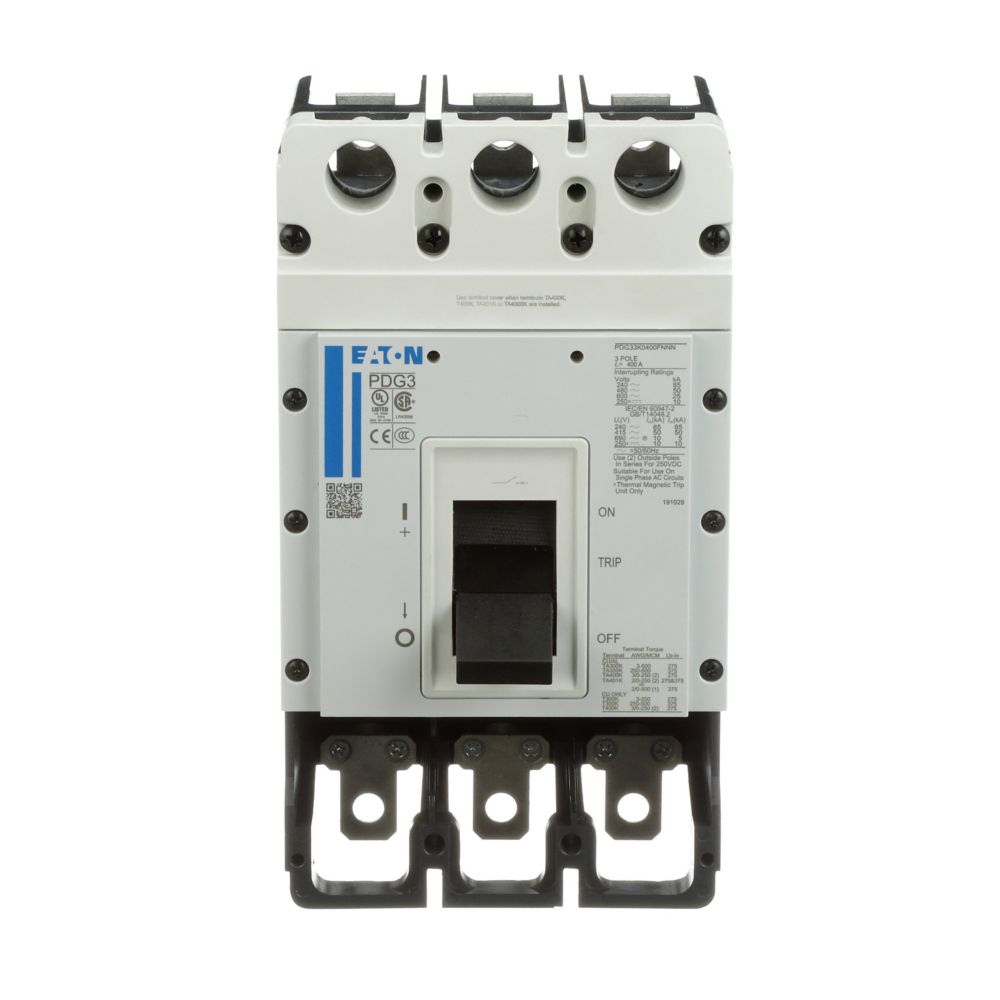

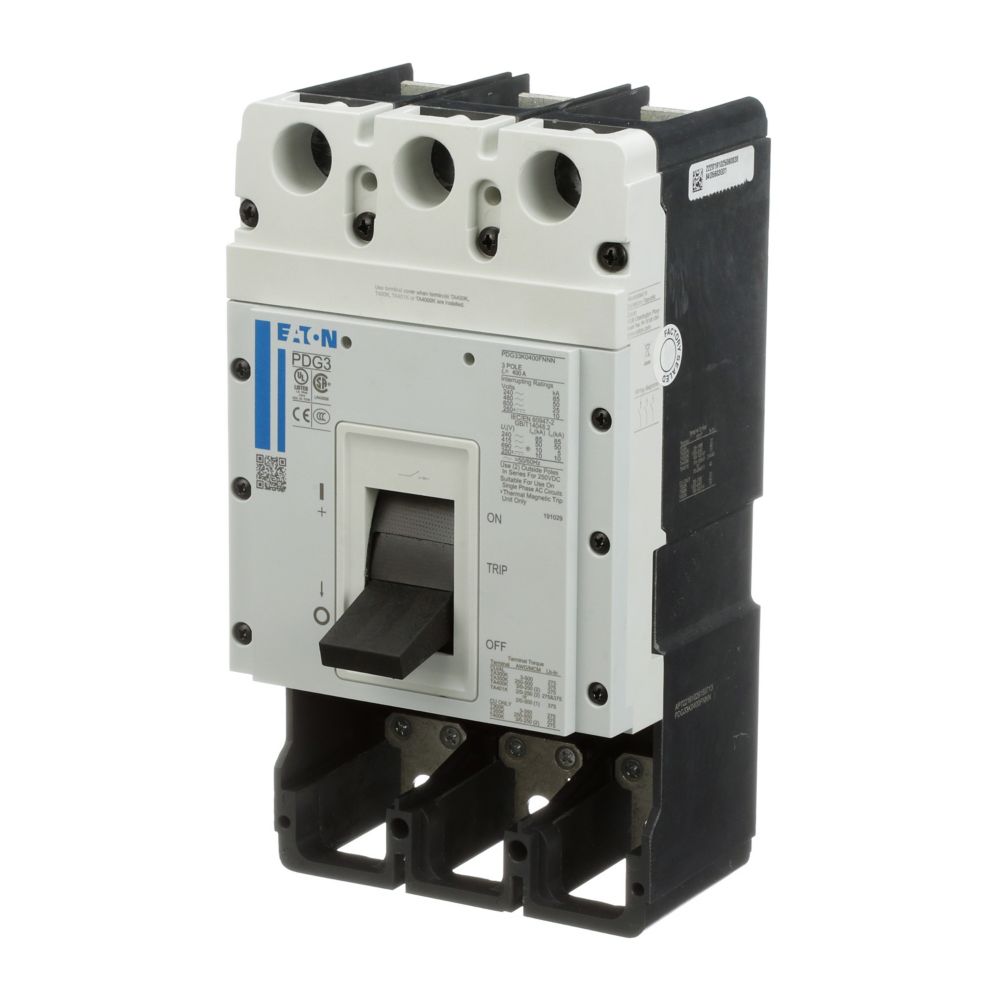

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Sub-Category
- Molded Case
- Series
- Power Defense Series
- Frame
- PDG
- Rated current
- 300
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 35kA@480V
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Feed-Thru
- Terminals
- Standard Line and Load Side Lug
- Country of origin
- Dominican Republic
Show all specifications (6 more)
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- UPC
- 78667957131
- GTIN
- 00786679571316
- Dimensions
- 4.29 in x 7 in x 5.46 in (Length/Depth x Height x Width)
- Weight
- 12.36
- Certification
- CCC, CSA, IEC 60947-2, RoHS, UL 489
Product description & additional details
PDG33G0300TFAJ
PDG33G0300TFAJ is an Eaton Power Defense molded case circuit breaker designed for robust electrical protection in commercial and industrial applications.
This 3-pole, thermal magnetic circuit breaker features a 300A current rating, 600VAC voltage rating, and a 35kA interrupt rating at 480VAC. It is part of the PD3 Global series, equipped with a T297 trip unit, and is certified for panel mounting. The breaker is engineered for reliable performance and safety in demanding environments.
-
Key Specifications
- Part Number: PDG33G0300TFAJ
- Manufacturer: Eaton
- Amperage: 300A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Panel
- Interrupt Rating: 35kA at 480VAC
- Series/Frame: PD3 Global
- Trip Unit: T297 (Thermal Magnetic, Fixed-Adjustable)
- Certifications: UL Listed
- Breaker Type: Molded Case
- Status: Active
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: PDG33G0300TFAJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Protection : Thermal Magnetic
Product Data
- UPC : 78667957131
- GTIN : 00786679571316
- Country of Origin : Dominican Republic
- Dimensions : 4.29 in x 7 in x 5.46 in (Length/Depth x Height x Width)
- Weight : 12.36
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
