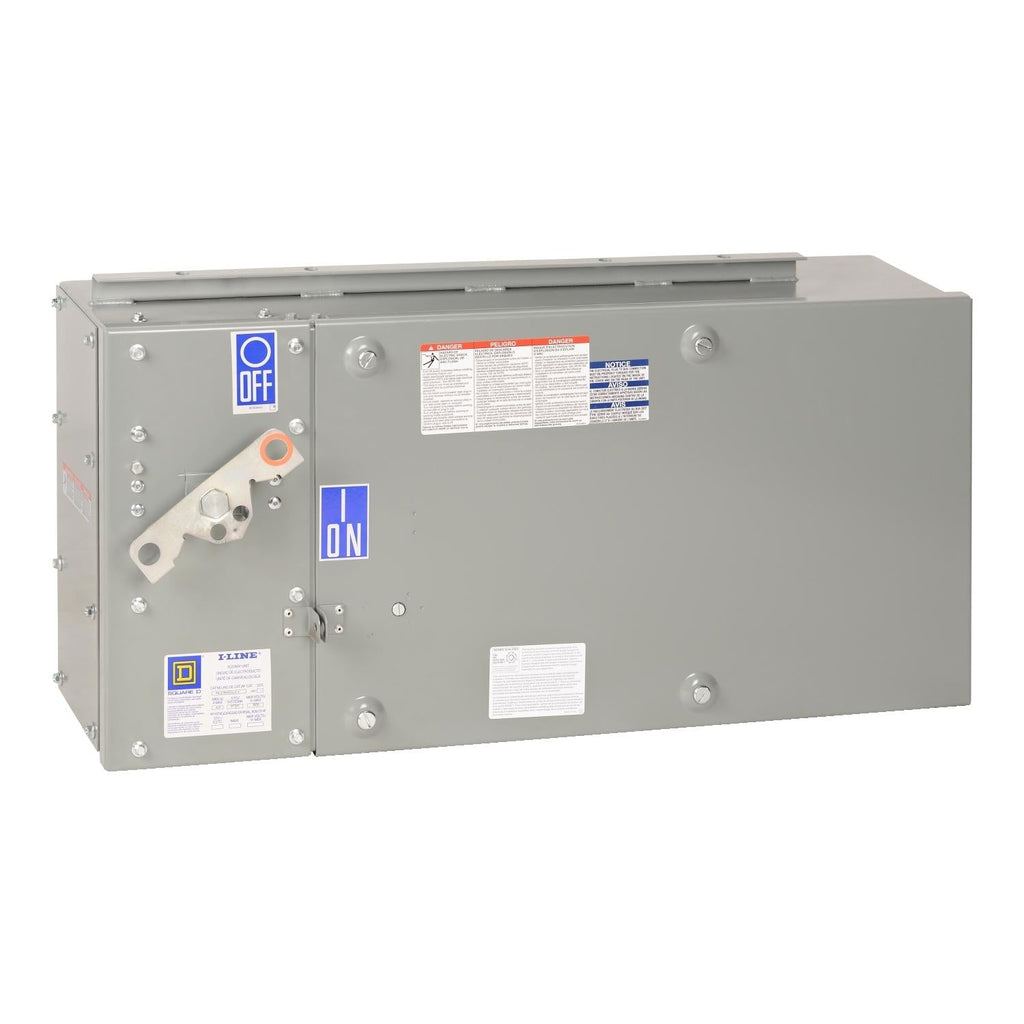

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Breaker Type
- Series
- I-Line
- Frame
- PBLG
- Rated current
- 400
- Voltage
- 600V
- Phases
- 3
- Interrupting rating
- 35kA@480V
- Wires
- 4
- Dimensions
- 17.4 in (442 mm) x 36.5 in (926 mm) x 14.4 in (367 mm) (Height x Width x Depth)
- Weight
- 121.001
Product description & additional details
PBLG36400GNU31X
PBLG36400GNU31X is a 400A, 600V, 3-phase, 4-wire L-frame bus plug designed for I-Line busway systems. This breaker-type plug-in unit features a MicroLogic 3.3 trip unit for reliable circuit protection and easy integration into industrial and commercial power distribution setups. Engineered for high performance, the PBLG36400GNU31X offers robust protection with a 18kA interrupt rating and supports flexible wiring configurations. Its L-frame design ensures compatibility with a wide range of I-Line busway accessories and fittings, making it ideal for scalable and modular installations.
- Part Number: PBLG36400GNU31X
- Manufacturer: Square D
- Amperage: 400A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Busway Plug-In
- Interrupt Rating: 18kA
- Series/Frame: L-Frame
- Trip Unit: MicroLogic 3.3
- Wiring: 3-Phase, 4-Wire
- Ground/Neutral: Yes
- Certifications: UL Listed
Specifications
- Part Number: PBLG36400GNU31X
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PBLG
- Voltage : 600
- Amperage : 400
- Phase : 3
- AIC rating : 35kA@480V
- Wire : 4
Product Data
- Dimensions : 17.4 in (442 mm) x 36.5 in (926 mm) x 14.4 in (367 mm) (Height x Width x Depth)
- Weight : 121.001
