Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Breaker Type
- Series
- I-Line
- Frame
- PJD
- Rated current
- 225
- Voltage
- 600V
- Phases
- 3
- Interrupting rating
- 18kA@480V
- Wires
- 4
- Country of origin
- United States
- Compatible Frames
- JDP
- UPC
- 785901725909
- GTIN
- 00785901725909
Show all specifications (2 more)
- Dimensions
- Depth 18.33 in (465.58 mm) Width 34.19 in (868.43 mm) Height 70.05 in (1779.27 mm)
- Weight
- 32.01
Product description & additional details
PJD36225GN

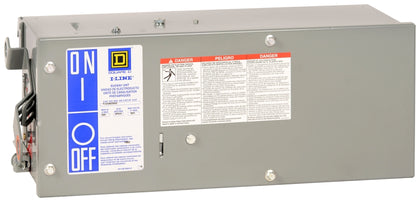

PJD36225GN is a 3 phase, 4 wire, 225A, 600V breaker type bus plug from the Square D I-Line series, designed for use with J-frame busway systems. This Square D PJD36225GN bus plug features a J-frame breaker, 3 poles, and is rated for 225 amps at 600 volts AC. It is a plug-in style unit compatible with I-Line busway systems, providing reliable circuit protection for industrial and commercial applications.
- Manufacturer: Square D
- Series/Frame: I-Line, J-Frame
- Amperage Rating: 225A
- Voltage Rating: 600V AC
- Poles: 3
- Mounting Type: Plug-In
- Interrupt Rating: 14kA @ 600V
- Wire Configuration: 3 Phase, 4 Wire
- Neutral Type: 200% Neutral
- Ground Type: 50% Integral
- Trip Unit: Thermal Magnetic
- Certifications: UL, CSA
Specifications
- Part Number: PJD36225GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PJD
- Voltage : 600
- Amperage : 225
- Phase : 3
- AIC rating : 18kA@480V
- Wire : 4
- Compatible Frames : JDP
Product Data
- UPC : 785901725909
- GTIN : 00785901725909
- Country of Origin : United States
- Dimensions : Depth 18.33 in (465.58 mm) Width 34.19 in (868.43 mm) Height 70.05 in (1779.27 mm)
- Weight : 32.01
Technical Documents
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
