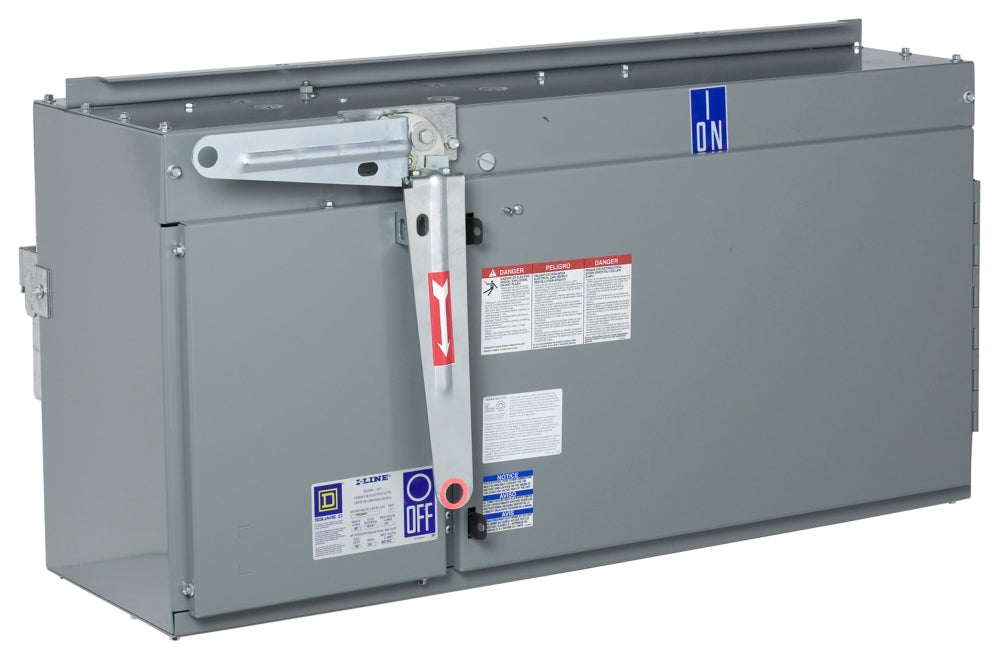

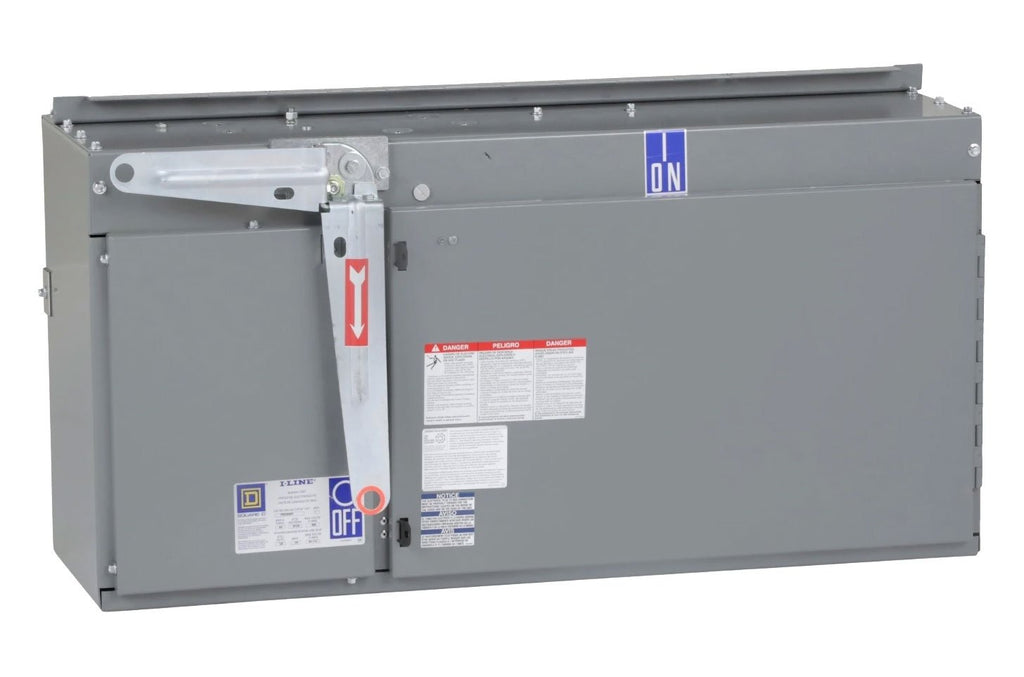

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Fusible
- Series
- I-Line
- Frame
- PBQ
- Rated current
- 400
- Voltage
- 240/600 AC
- Phases
- 3
- Interrupting rating
- 200kA@480V
- Wires
- 3
- Fuse class
- H,K,R
- Country of origin
- Mexico
- UPC
- 785901040255
- GTIN
- 00785901040255
Show all specifications (3 more)
- Dimensions
- 21 in x 42 in
- Weight
- 196 lb
- Certification
- CSA Certified, UL Listed
Product description & additional details
PBQ3640G
PBQ3640G is a 400 amp, 600 volt, 3-pole fusible bus plug designed for Square D I-Line busway systems.This plug-in unit features a bolt-on connection and is compatible with Class H, K, J, or R fuses for overcurrent protection. It supports 3-wire plus ground configurations and is suitable for use with both aluminum and copper bus ducts. The unit has a 200kA interrupt rating at 480V, NEMA 1 enclosure, FS frame, and hook swing mounting for easy installation.
- Amperage: 400 A
- Voltage: 600 V max
- Poles: 3
- Wire: 3-wire plus ground
- Fuse Type: Fusible, accepts Class H, K, J, R fuses
- Interrupt Rating: 200 kA at 480 V
- Series/Frame: I-Line, FS frame
- Mounting Type: Hook swing
- Enclosure: NEMA 1
- Phase: 3-phase
- Connection: Bolt-on plug-in
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: PBQ3640G
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PBQ
- Voltage : 240/600 AC
- Amperage : 400
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H,K,R
- Wire : 3
Product Data
- UPC : 785901040255
- GTIN : 00785901040255
- Country of Origin : Mexico
- Dimensions : 21 in x 42 in
- Weight : 196 lb
- Certification : CSA Certified, UL Listed
