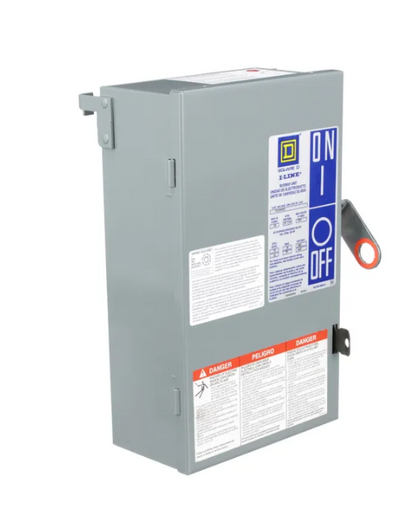

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Fusible
- Series
- I-Line
- Frame
- PQ
- Rated current
- 60
- Voltage
- 600 AC
- Phases
- 3
- Interrupting rating
- 200kA@480V
- Wires
- 3
- Fuse class
- H, K, J, R
- Country of origin
- Mexico
- UPC
- 078590126391
- GTIN
- 00785901263913
Show all specifications (3 more)
- Dimensions
- 15 in x 8-7/8 in
- Weight
- 13.067
- Certification
- CSA Certified, UL Listed
Product description & additional details
PQ3606G
PQ3606G is a Square D 3 pole fusible bus plug rated at 60 amps and 600 volts, designed for use with I-Line busway systems.This fusible bus plug features a 3-phase, 3-wire configuration with integral ground, hook-swing mounting, and H fuse type for reliable circuit protection. It is UL Listed and CSA Certified, suitable for aluminum and copper busway applications, and provides a fusible disconnect with plug-in fixing mode.
- Key Specifications
- Amperage: 60A
- Voltage: 600V AC
- Poles: 3
- Phase: 3
- Mounting Type: Hook-swing
- Fuse Type: H fuse
- Enclosure: NEMA 1
- Approvals: UL Listed, CSA Certified
- Series: I-Line II PQ Series
- Integral Ground Bus Included
- Interrupt Rating: 200 kA
- Wiring: 4-wire with ground, no neutral
Specifications
- Part Number: PQ3606G
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 600 AC
- Amperage : 60
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H, K, J, R
- Wire : 3
Product Data
- UPC : 078590126391
- GTIN : 00785901263913
- Country of Origin : Mexico
- Dimensions : 15 in x 8-7/8 in
- Weight : 13.067
- Certification : CSA Certified, UL Listed
