NGH312036E - Eaton Cutler-Hammer Circuit Breaker 1200A 600V 3P

NGH312036E

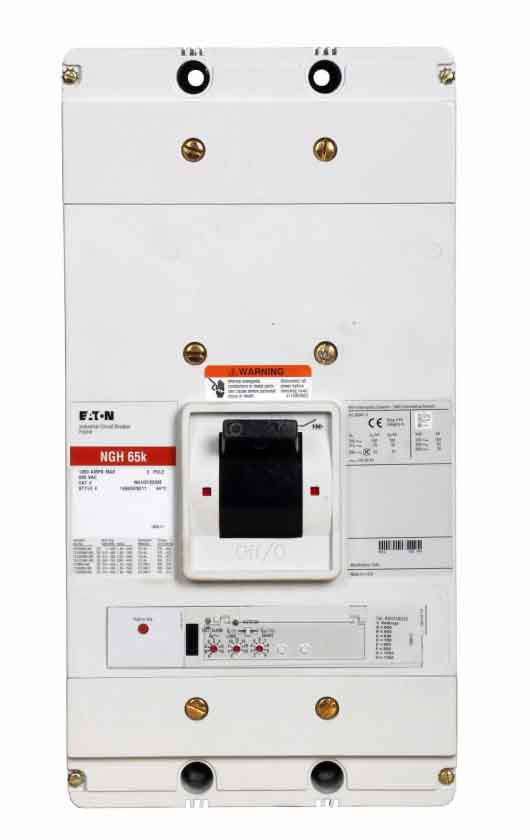

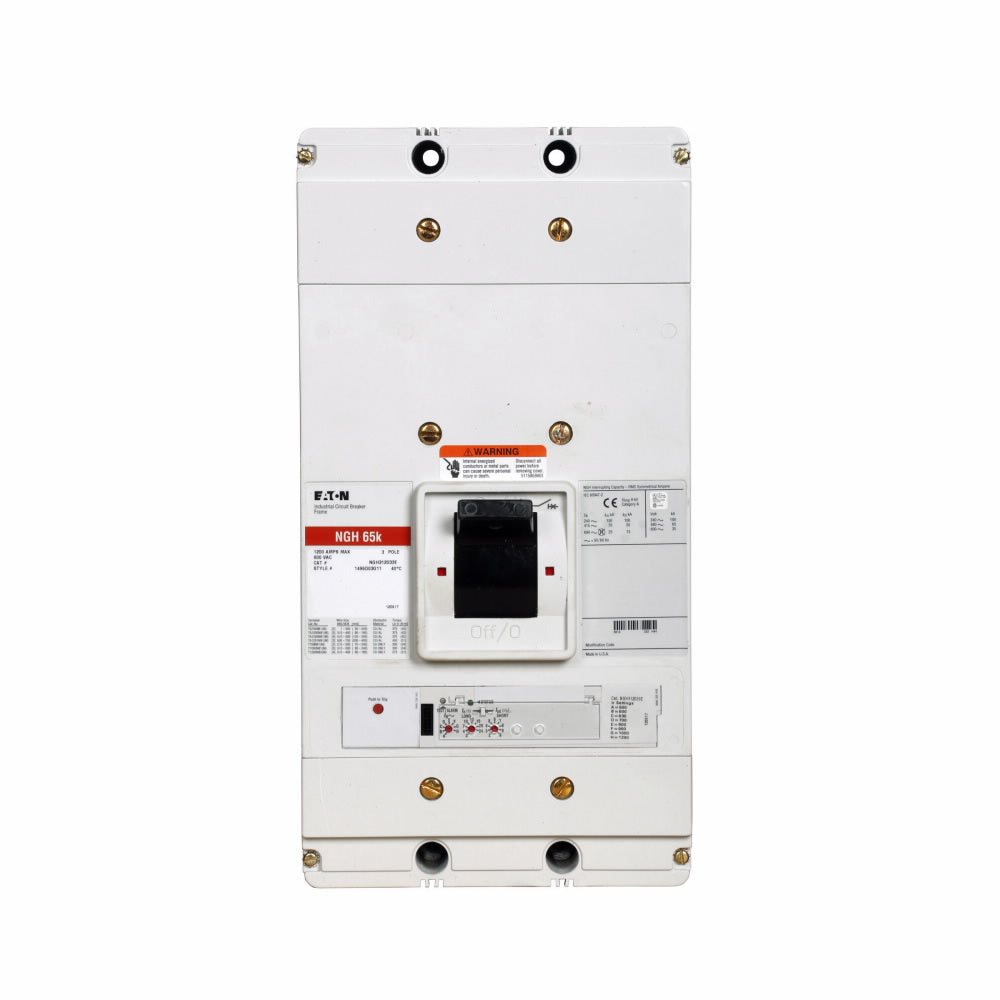

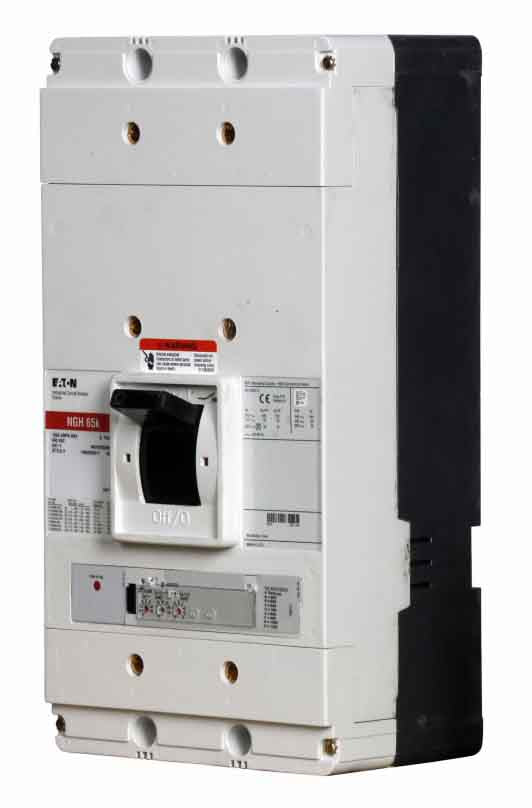

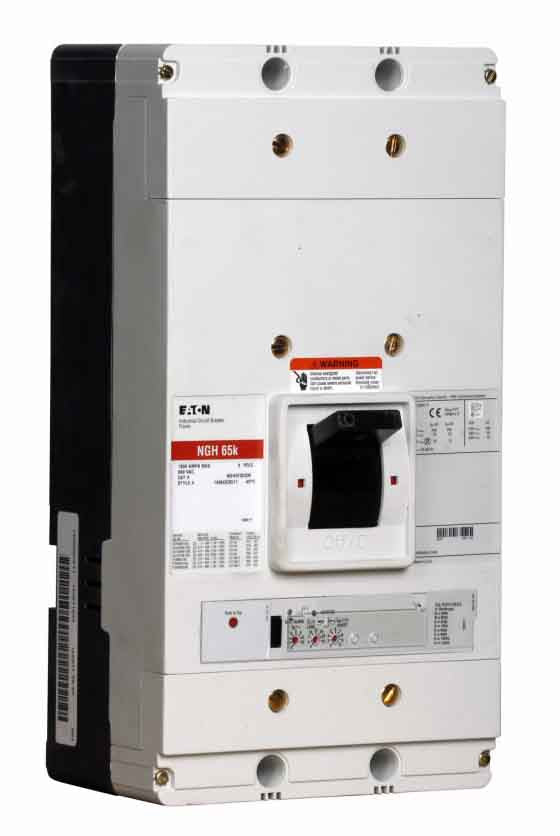

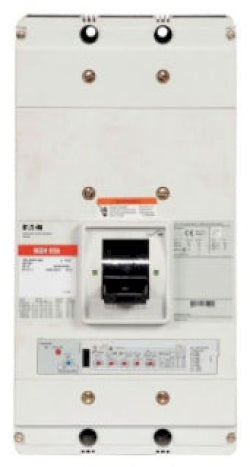

NGH312036E is an Eaton Cutler-Hammer Series G electronic molded case circuit breaker designed for high-capacity power distribution protection in commercial and industrial systems.This NG-frame NGH312036E breaker features a 1200 A current rating, three-pole configuration, up to 600 V rating, and electronic LSIG trip for long-time, short-time, instantaneous, and ground fault protection, with solid-state protection and bolt-on connection for secure installation.Key Specifications

• Part Number: NGH312036E
• Manufacturer: Cutler Hammer
• Voltage: 600 V
• Amperage: 1200 A
• Phase: 3
• Poles: 3
• AIC Rating: 65 kA
• Connection: Bolt-On
• Frame Size: NG
• Breaker Type: Molded Case
• Protection: Solid State
• Trip Type: Electronic LSIG
• Frequency: 50-60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: NGH312036E
• Manufacturer : Eaton Cutler-Hammer
• Brand : Eaton Cutler-Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : NGH
• Voltage : 600 V
• Amperage : 1200 A
• Phase : 3
• Poles : 3
• AIC rating : 65 kA
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : Line/Load Lug
• Frame Size : NG
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 500 MCM
• Breaker Type : Molded Case
• Hz : 50-60 Hz
• Protection : Solid State
• Phase Connection : ABC
• Trip Type : Electronic LSIG

Product Data

• UPC : 786685379289
• GTIN : 00786685379289
• Country of Origin : United States
• Dimensions : 6 in x 9 in x 9 in (Length/Depth x Height x Width)
• Weight : 48 lb
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
