NGH312035E - Eaton Series G NG Frame 1200A 3 Pole 600V Circuit Breaker

NGH312035E

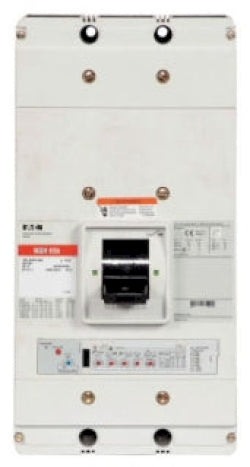

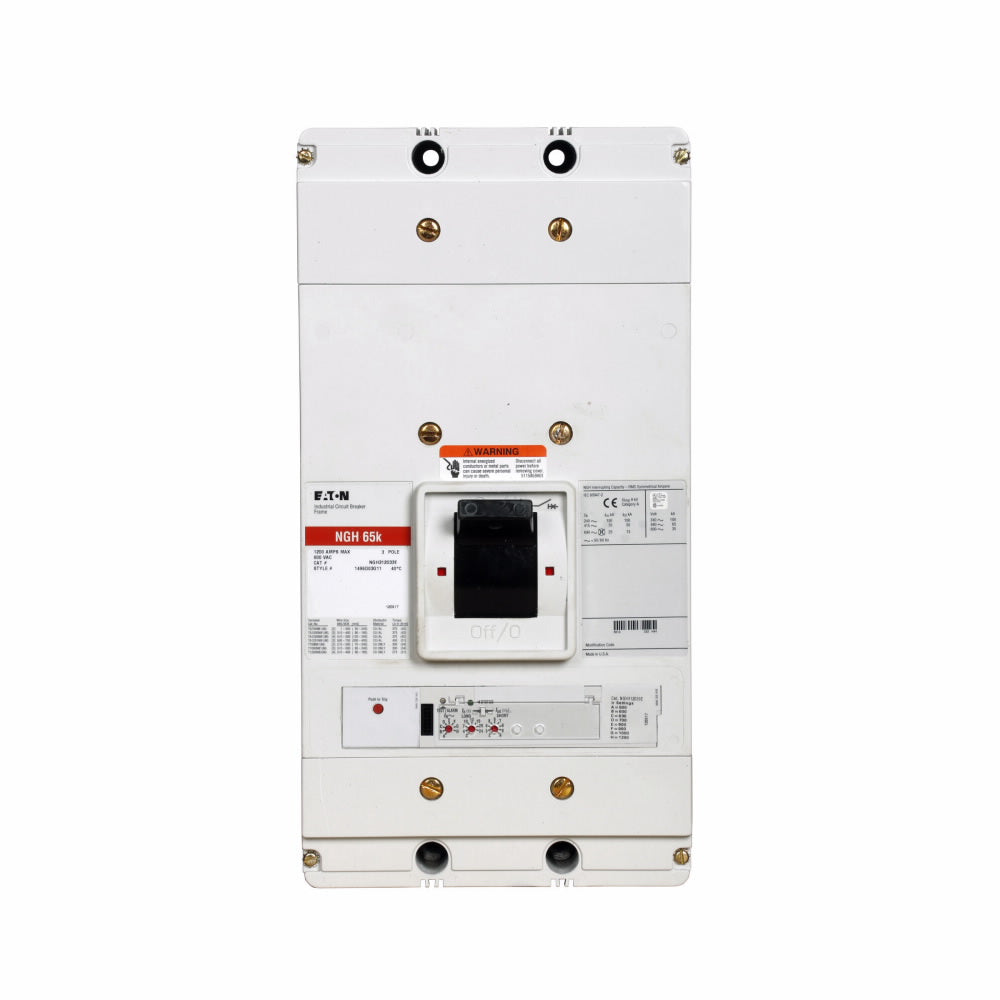

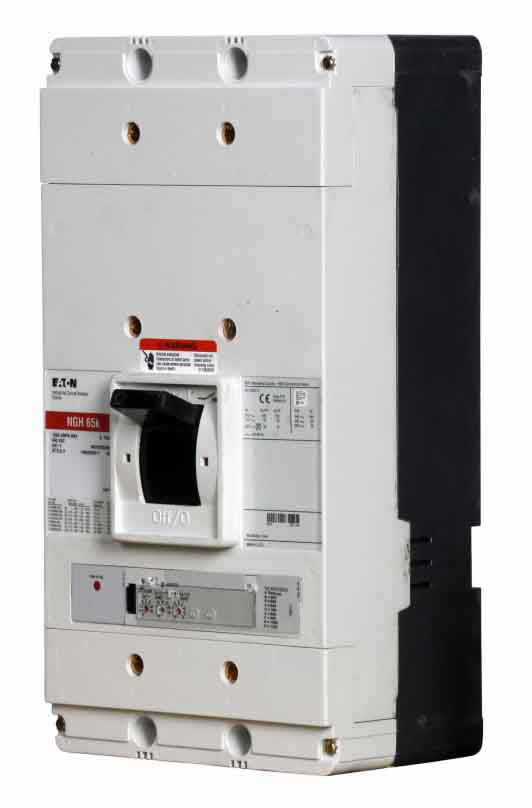

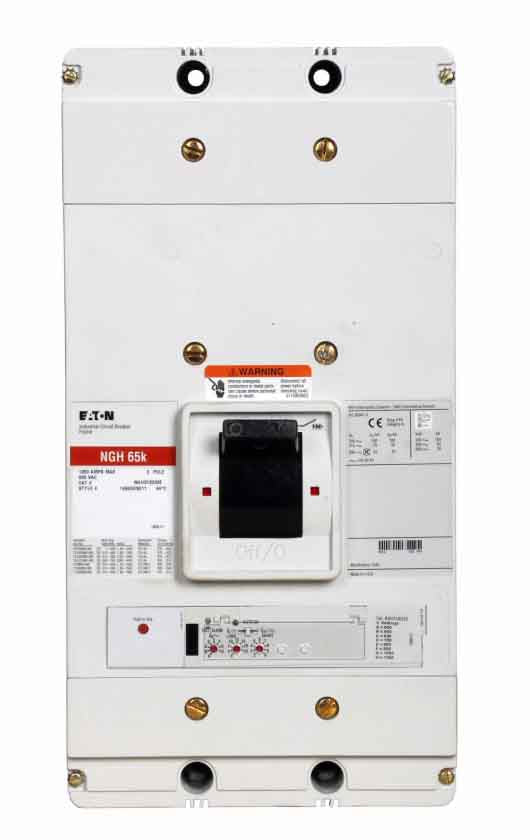

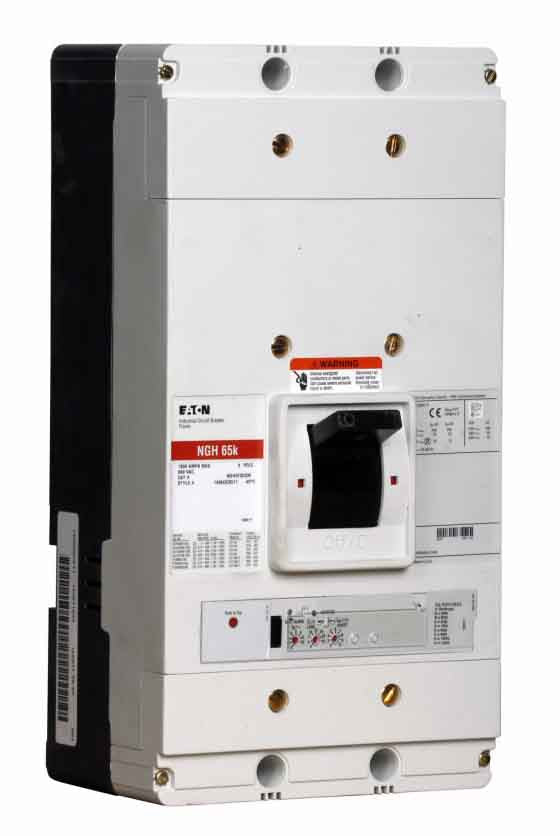

NGH312035E is an Eaton Series G NG frame electronic molded case circuit breaker engineered to deliver reliable overcurrent protection in commercial and industrial power distribution systems. It is rated for 1200 amps, configured in 3 poles, and suitable for three-phase electrical service. [oai_citation:0‡Eaton](https://www.eaton.com/us/en-us/skuPage.NGH312035E.html?utm_source=chatgpt.com) This breaker features an electronic LSG trip unit with Eaton Digitrip RMS 310+ technology for long-time, short-time, and instantaneous protection. It offers high interrupting capacity with 100 kAIC at 240 V AC and 65 kAIC at 480 V AC ratings, and it includes a bolt-on connection for secure installation. [oai_citation:1‡Eaton](https://www.eaton.com/us/en-us/skuPage.NGH312035E.html?utm_source=chatgpt.com)

• Manufacturer: Eaton
• Series: Series G
• Frame Size: NG-Frame
• Poles: 3
• Amperage Rating: 1200 A
• Voltage Rating: 600 V AC
• Trip Unit: Electronic LSG with Digitrip RMS 310+
• Interrupt Rating: 100 kAIC @ 240 V AC, 65 kAIC @ 480 V AC
• Connection Type: Bolt-On

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.It provides dependable protection and integrates easily in commercial and industrial distribution systems.

• Family: PowerPact NG (NGH)
• Poles: 3
• Amperage: 35 A
• Voltage: 600 Vac
• Mounting: I-Line plug-on (line) / lugs (load)
• Trip Unit: Micrologic electronic (per suffix)
• Certifications: UL 489 Listed, CSA Certified

Suffix meanings in this catalog number

• Micrologic electronic trip unit

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: NGH312035E
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : NGH
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 1200A/N
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 500 MCM
• Breaker Type : LSG Functionality
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 786685379265
• GTIN : 00786685379265
• Country of Origin : United States
• Dimensions : 6 in x 9 in x 9 in (Length/Depth x Height x Width)
• Weight : 48 lb
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
