Product Info
- Manufacturer:Federal Pacific
- Sub-Category:Molded Case
Description
NA250

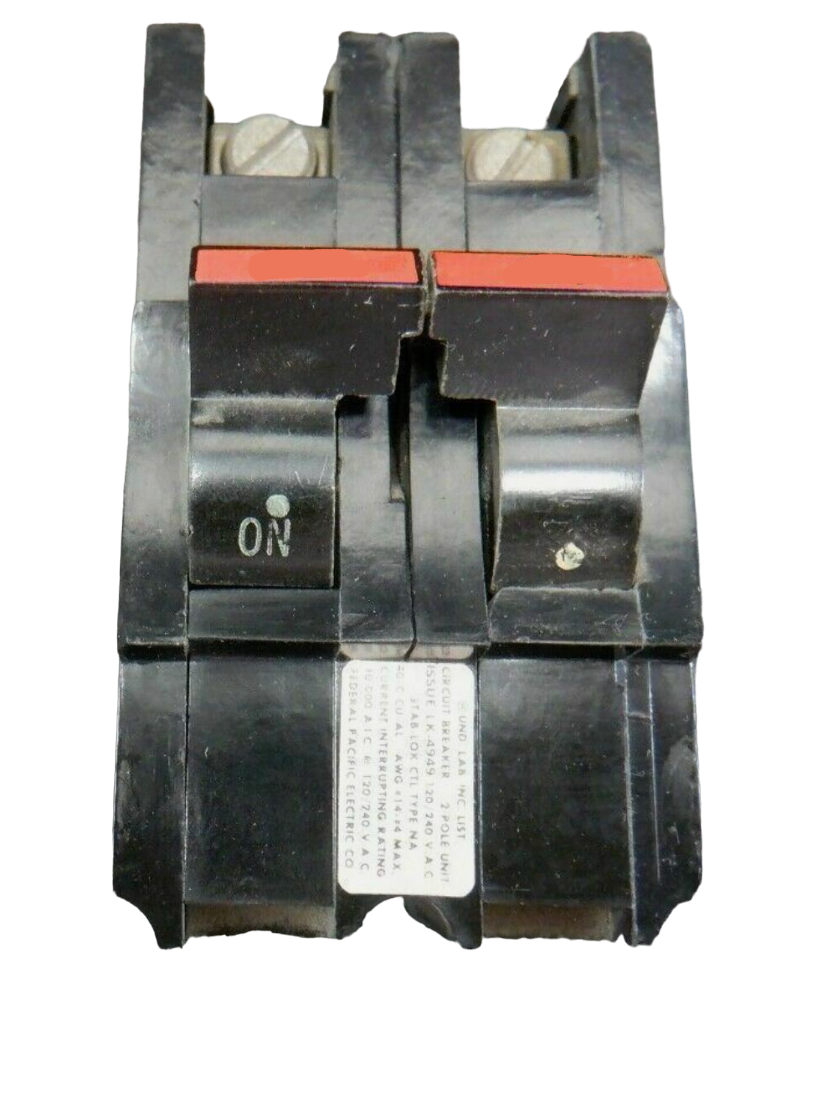

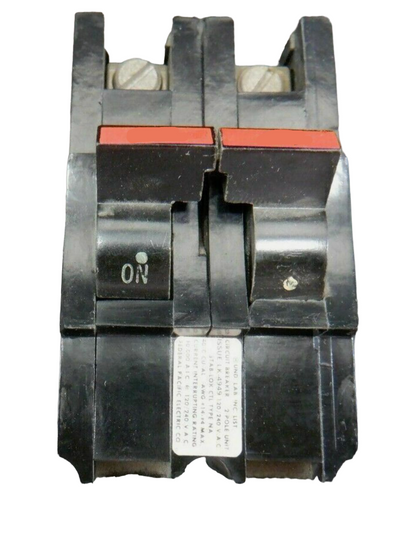

NA250 is a Federal Pacific 50 Amp 2 Pole molded case circuit breaker designed for 240 Volt electrical systems.This NA type circuit breaker features a 50 Amp current rating, 2 poles, and a 10kA interrupt rating at 240 Volts. It is a plug-in style breaker suitable for residential and commercial applications, providing reliable overcurrent protection with a Type A trip unit characteristic. The breaker is UL listed and CSA certified, ensuring compliance with industry safety standards.
- Manufacturer: Federal Pacific
- Part Number: NA250
- Amperage: 50 Amps
- Poles: 2
- Voltage: 240 Volts
- Interrupt Rating: 10kA at 240V
- Type: NA Molded Case Circuit Breaker
- Mounting Type: Plug-In
- Trip Unit: Type A
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: NA250
- Manufacturer : Federal Pacific
- Brand : Federal Pacific
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Stab-Lok
- Type : NA
- Voltage : 240
- Amperage : 50
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 662324952429
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 3
- Certification : CSA
- Wire Size : AWG 14...AWG 2 copper
