Product Info
- Manufacturer:American/Federal Pacific
- Sub-Category:Molded Case
Description
NC015

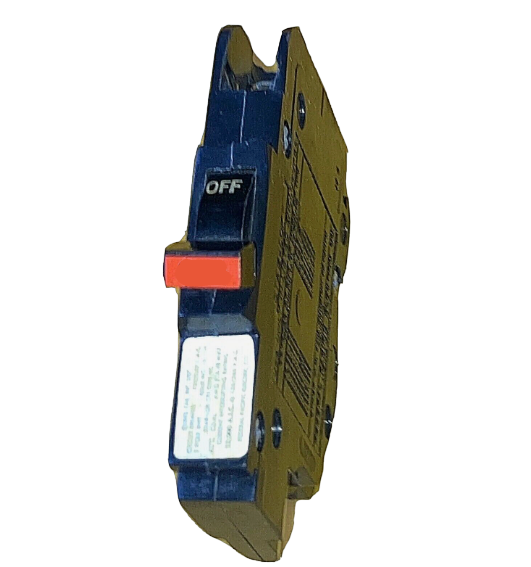

NC015 is a 1 pole, 15 amp, 120 volt plug-in circuit breaker designed for Federal Pacific load centers. This NC series breaker features a thin profile, thermal magnetic trip unit, and is rated for 10,000 AIC at 120 volts. It is ideal for residential and light commercial applications requiring reliable overcurrent protection. This Federal Pacific NC015 breaker is a molded case, plug-on type with a line side stab connection and trip free operation. It provides both long time and instantaneous trip functions for enhanced circuit protection. The breaker is compatible with Federal Pacific Stab-Lok panels and is commonly used in single phase systems.
- Part Number: NC015
- Manufacturer: Federal Pacific
- Amperage: 15A
- Voltage: 120V AC
- Poles: 1
- Mounting Type: Plug-In (NC)
- Interrupt Rating: 10,000 AIC @ 120V
- Series/Frame: NC
- Body Size: Thin (0.5 inch)
- Trip Unit: Thermal Magnetic
- Connection: Line Side Stab
- Operation: Trip Free
Specifications
- Part Number: NC015
- Manufacturer : American/Federal Pacific
- Brand : American/Federal Pacific
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Stab-Lok
- Type : NC
- Voltage : 120
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 30047569388720
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.2
- Certification : CSA
- Wire Size : AWG 14...AWG 6 copper
