Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
MJP36500YP
MJP36500YP is a Schneider Electric PowerPact M series circuit breaker designed for reliable power distribution protection.This 3-pole, 500 amp circuit breaker features a bolt-on mounting type and an electronic trip unit for precise and responsive protection. It is rated for 600 VAC operation with an interrupt rating of 25 kA at 600 V and 65 kA at 480 V. The breaker is part of the PowerPact M frame series, suitable for industrial and commercial electrical applications requiring robust circuit protection.
- Manufacturer: Schneider Electric
- Series/Frame: PowerPact M
- Amperage: 500 A
- Voltage Rating: 600 VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 25 kA @ 600 V, 65 kA @ 480 V
- Trip Unit: Electronic
- Style: Molded Case Circuit Breaker
Specifications
- Part Number: MJP36500YP
- Manufacturer : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : MJP
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : M Frame
- Protection : Solid State
Product Data

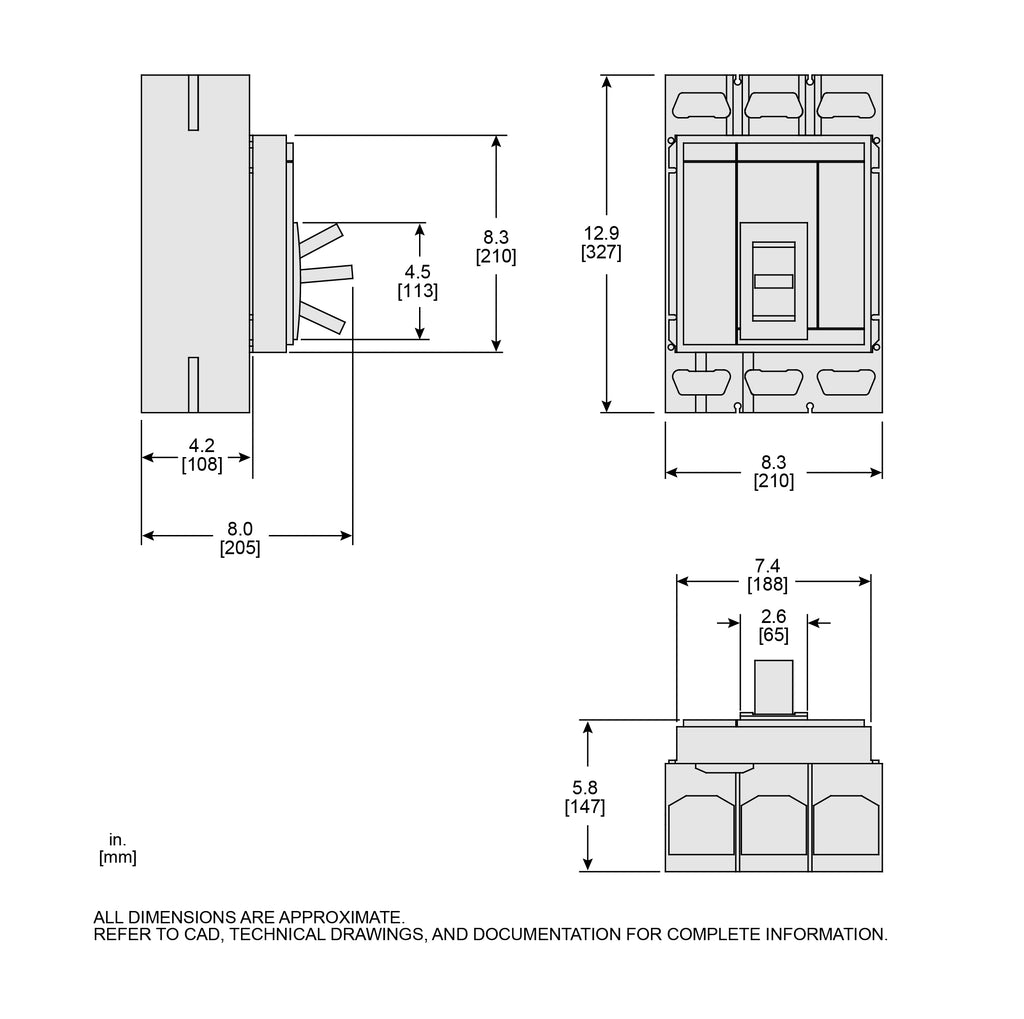

- Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
- Weight : 34
