Description
MJP36500
MJP36500 is a Schneider Electric PowerPact M molded case circuit breaker designed for reliable power distribution protection.
This 3-pole circuit breaker features a 500 ampere rating and operates at 600 volts AC. It includes an electronic trip unit and is unit mount style with lugs off end for easy installation. The breaker has a 25kA interrupting rating at 600 VAC, providing robust fault current protection. It is part of the PowerPact M frame series, known for versatility and proven performance in industrial and commercial applications.
- Key Specifications
- Amperage: 500A
- Voltage: 600 VAC
- Poles: 3
- Mounting Type: Unit Mount
- Interrupt Rating: 25kA @ 600 VAC
- Series/Frame: PowerPact M
- Trip Unit: Electronic Trip Unit
- Lugs: Off End
- Part Number: MJP36500
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : MJP
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : M Frame
- Protection : Solid State

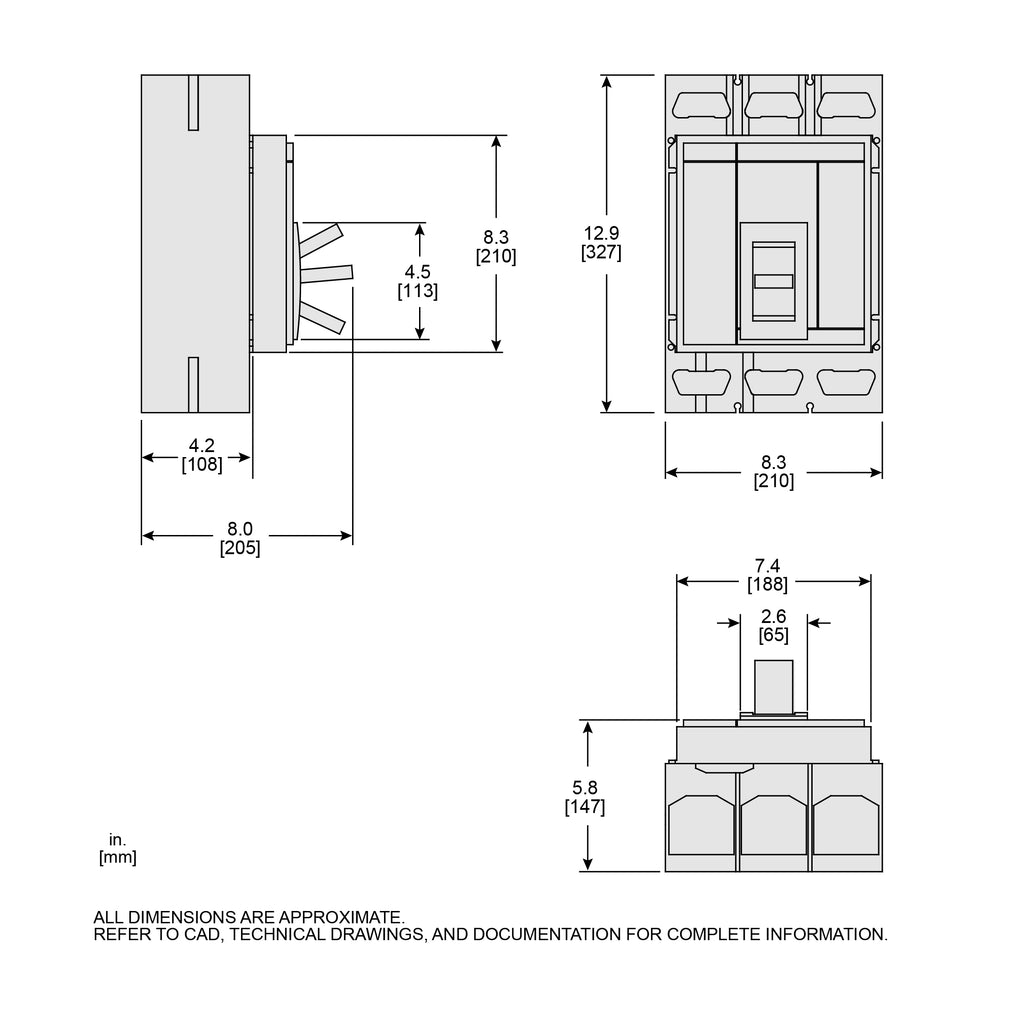

- Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
- Weight : 29.1
