Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
MJP36400YP
MJP36400YP is a 3-pole, 600-volt, 400-amp molded case circuit breaker from Square D designed for industrial and commercial electrical applications. Part Number MJP36400YP features PowerPact M frame construction with I-Line plug-in mounting and electronic trip unit technology for reliable overcurrent protection. This current-limiting circuit breaker delivers an AIC rating of 65kA at 480V and includes long-time and instantaneous trip functions with solid-state electronic protection. The breaker is rated for 80% continuous current and includes padlock handle capability for enhanced safety. Key Specifications
- Amperage: 400A
- Voltage: 600VAC
- Poles: 3
- Frame: PowerPact M
- Connection: I-Line Style Plug-In
- AIC Rating: 65kA at 480V
- Trip Unit: Electronic, ET 1.0
- Continuous Rating: 80%
- Certifications: UL 480, CSA, NMX, IEC
- Type: MJP
- Dimensions: 12.86 inches H x 0.32 inches W x 8.27 inches D
- Weight: 29 lbs
Specifications
- Part Number: MJP36400YP
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : MJP
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : M Frame
- Protection : Solid State
Product Data
- UPC : 782113952840

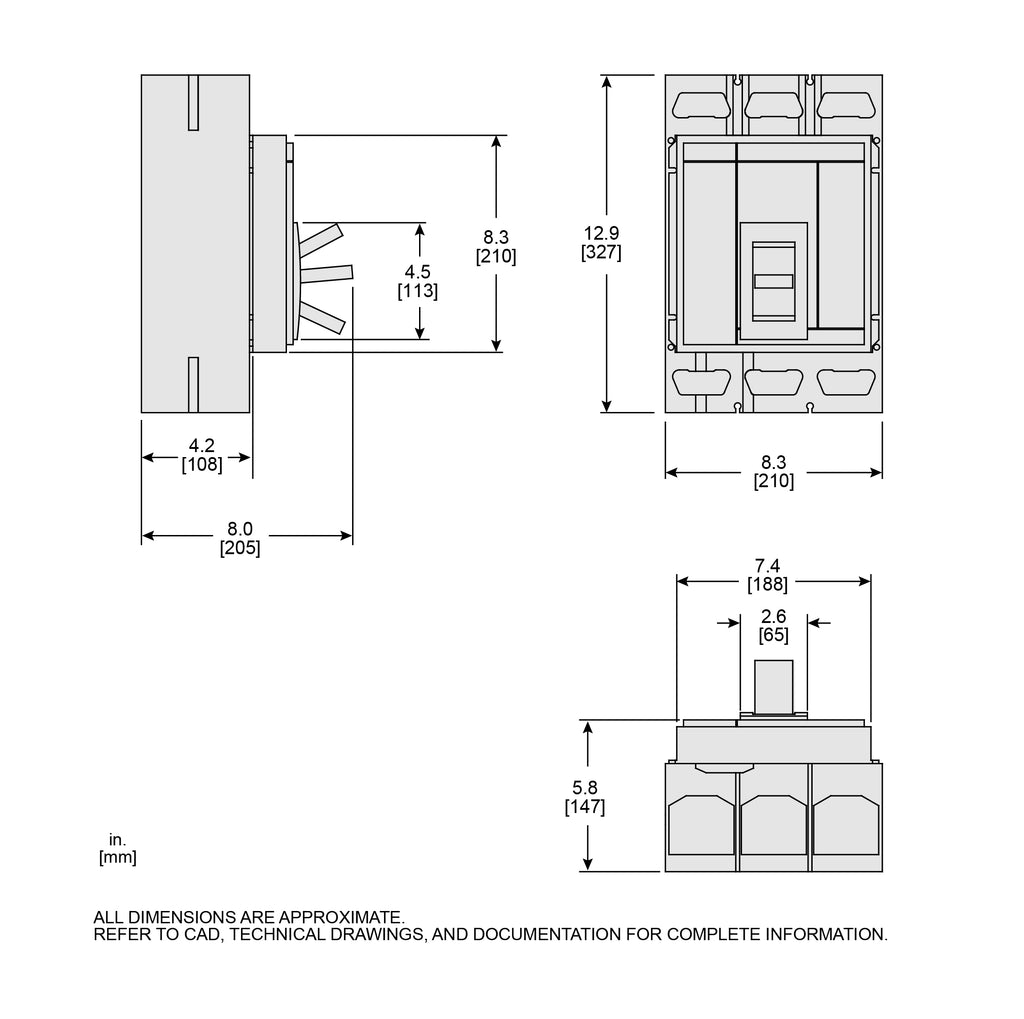

- Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
- Weight : 34
