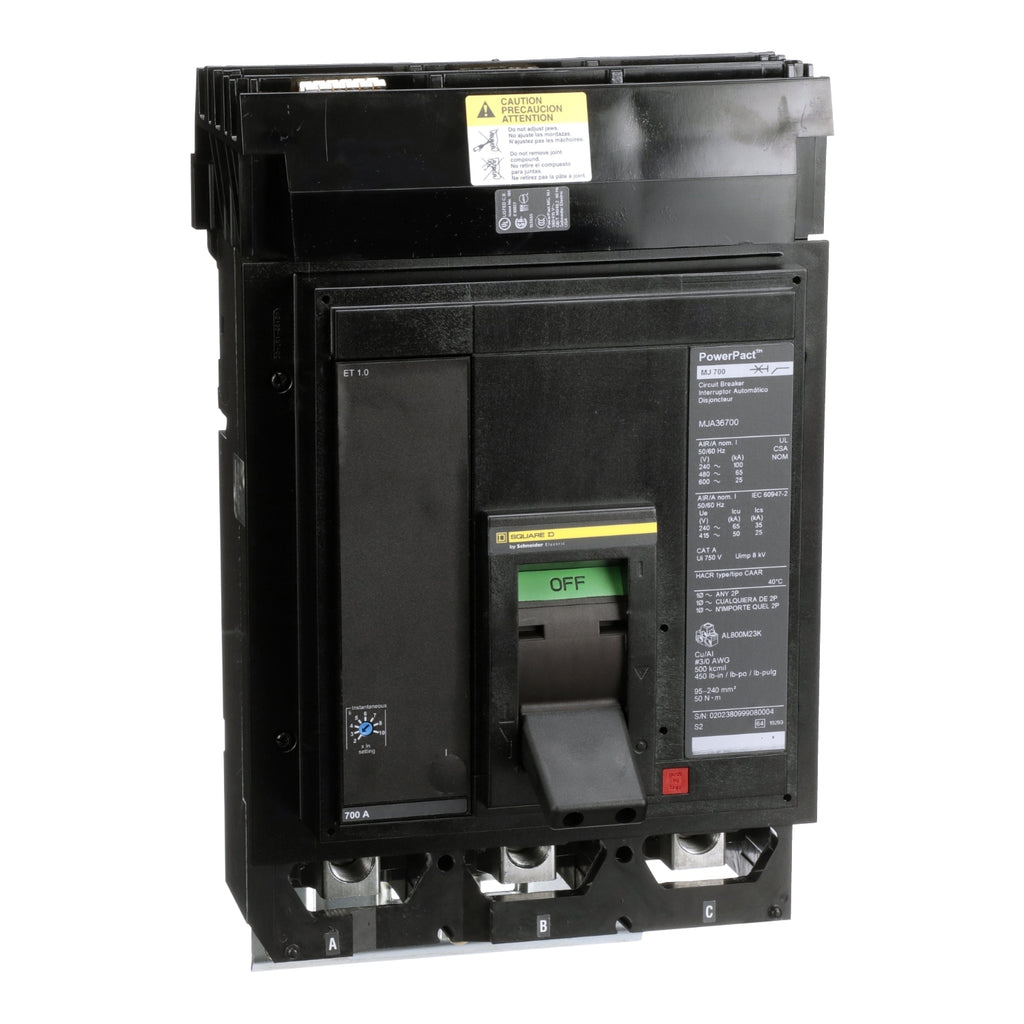

MJA36700YP - Square D PowerPact M 700A 3-Pole 600VAC 25kA Circuit Breaker

MJA36700YP

MJA36700YP is a Square D PowerPact M molded case circuit breaker designed for industrial power distribution and I-Line panelboard applications. This 700-ampere, 3-pole breaker operates at 600VAC and features a 25kA interrupt rating at rated voltage, making it suitable for high-capacity electrical systems requiring reliable overcurrent protection. The breaker incorporates an ET 1.0 trip unit with open protocol capability, allowing operators to optimize installation management. Standard 80% rating provides consistent performance across common mounting configurations with standardized handle locations and trim dimensions.

• Amperage Rating: 700A
• Voltage Rating: 600VAC
• Poles: 3-pole
• Interrupt Rating: 25kA @ 600VAC
• Series: PowerPact M
• Frame Type: MJA
• Trip Unit: ET 1.0
• Mounting: I-Line
• Phase Configuration: ABC
• Certifications: UL 480 Listed, CSA, NMX, IEC
• Rating: 80% Standard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MJA36700YP
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MJA
• Voltage : 600
• Amperage : 700
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : M Frame
• Protection : Solid State

Product Data

• Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
• Weight : 29
