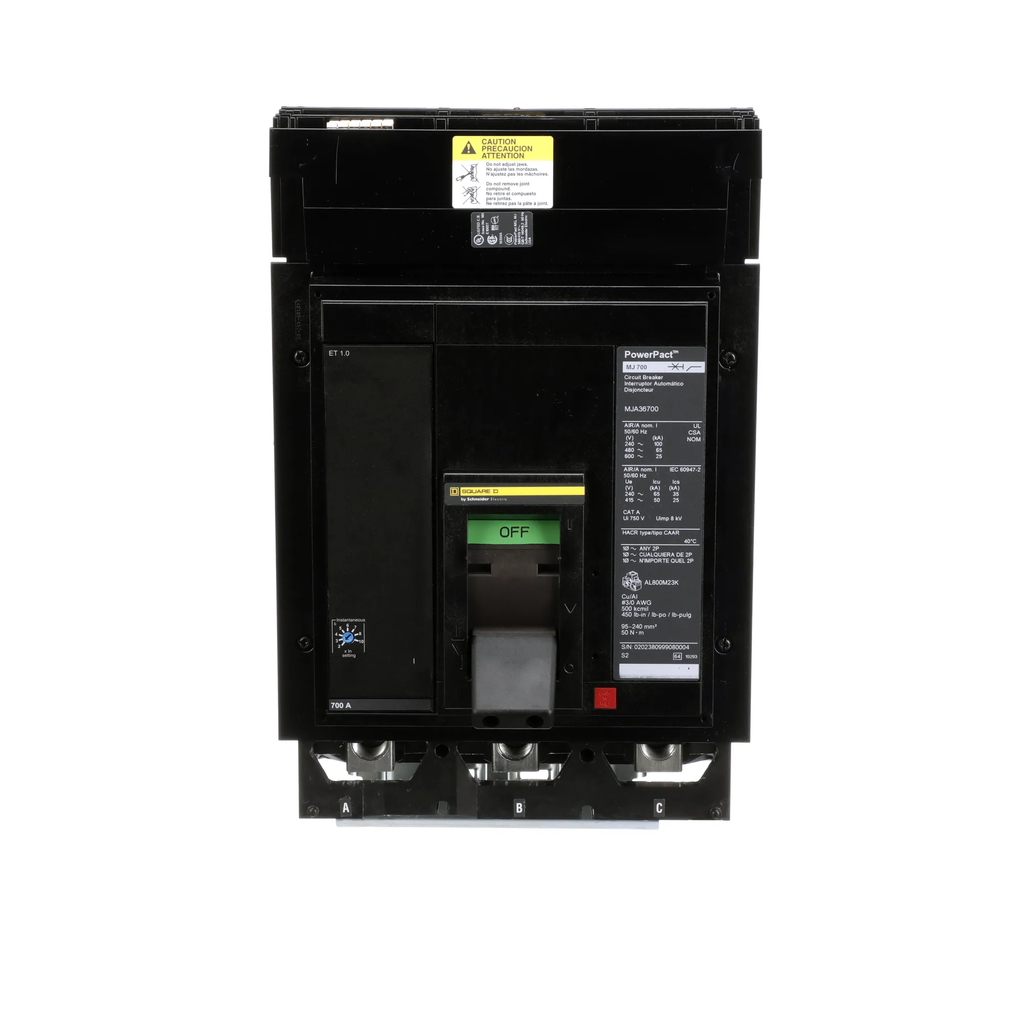

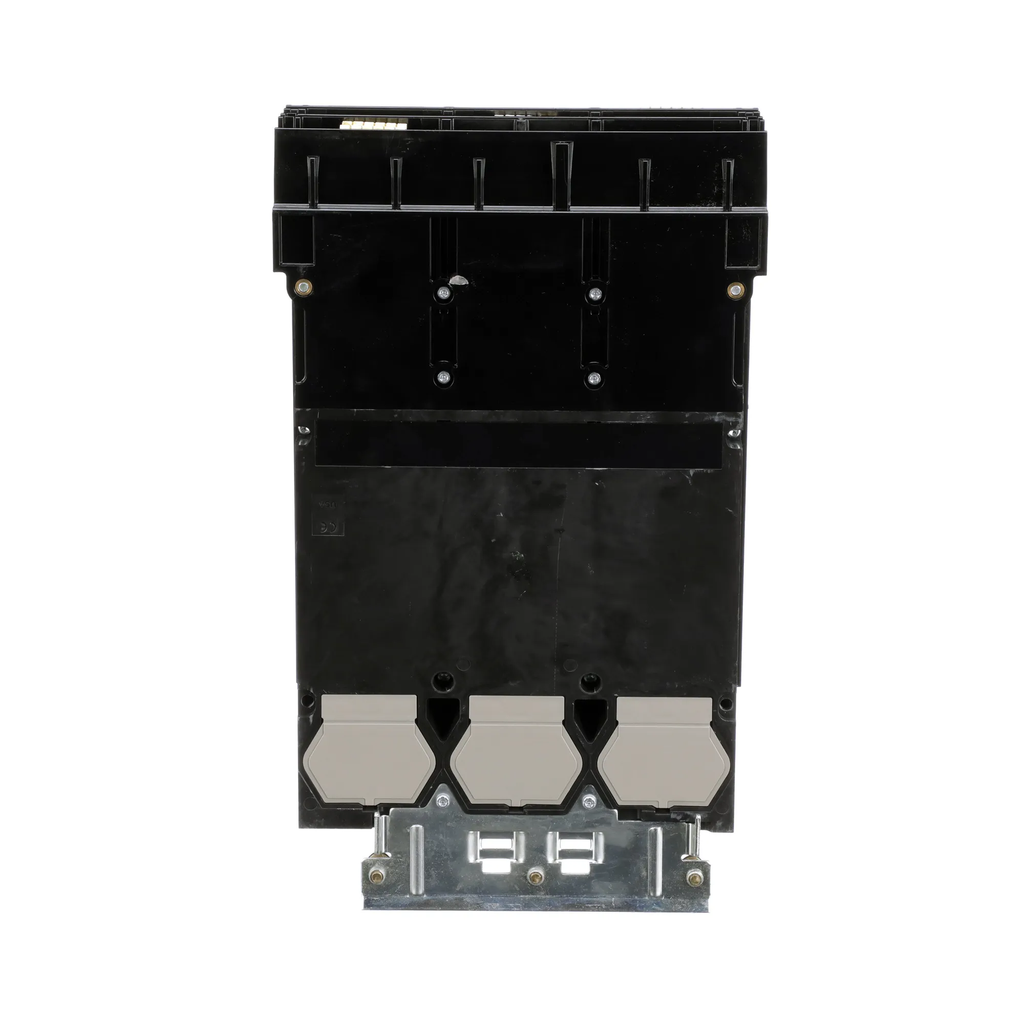

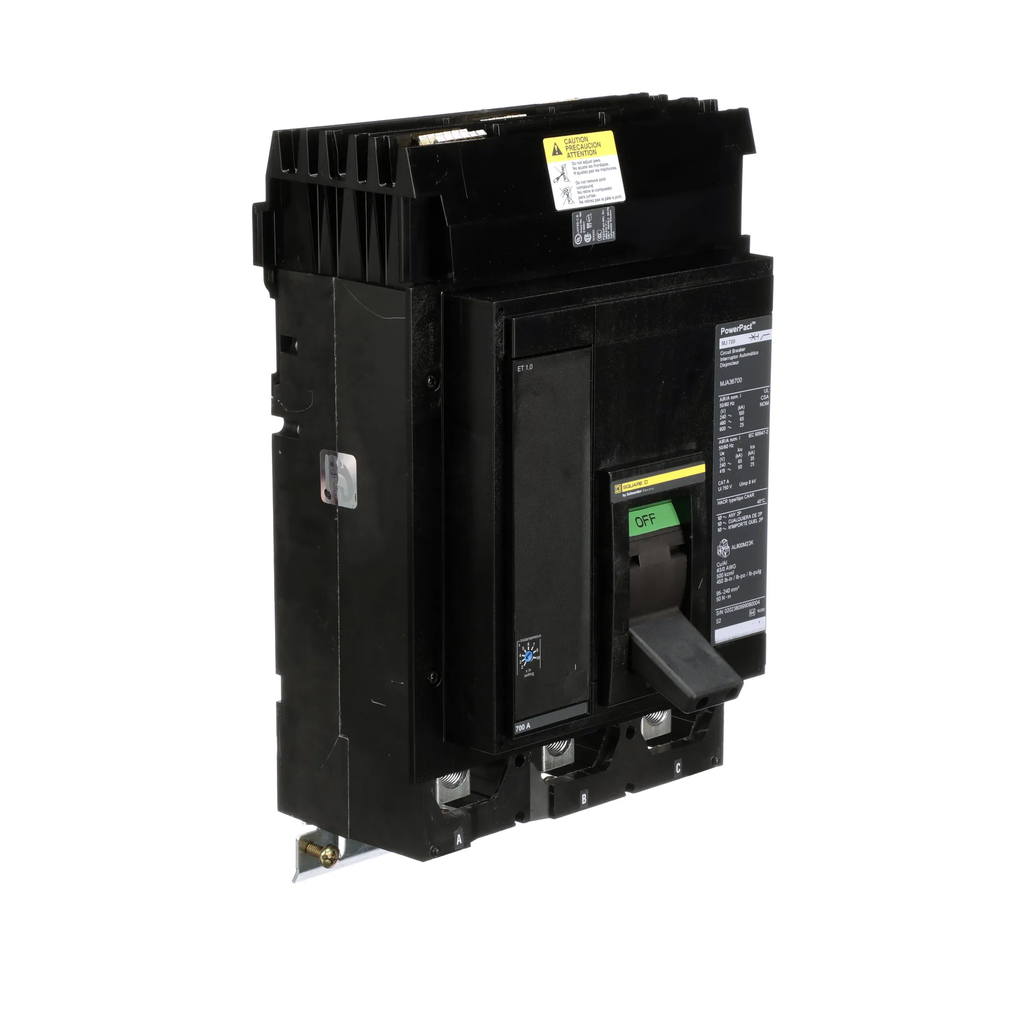

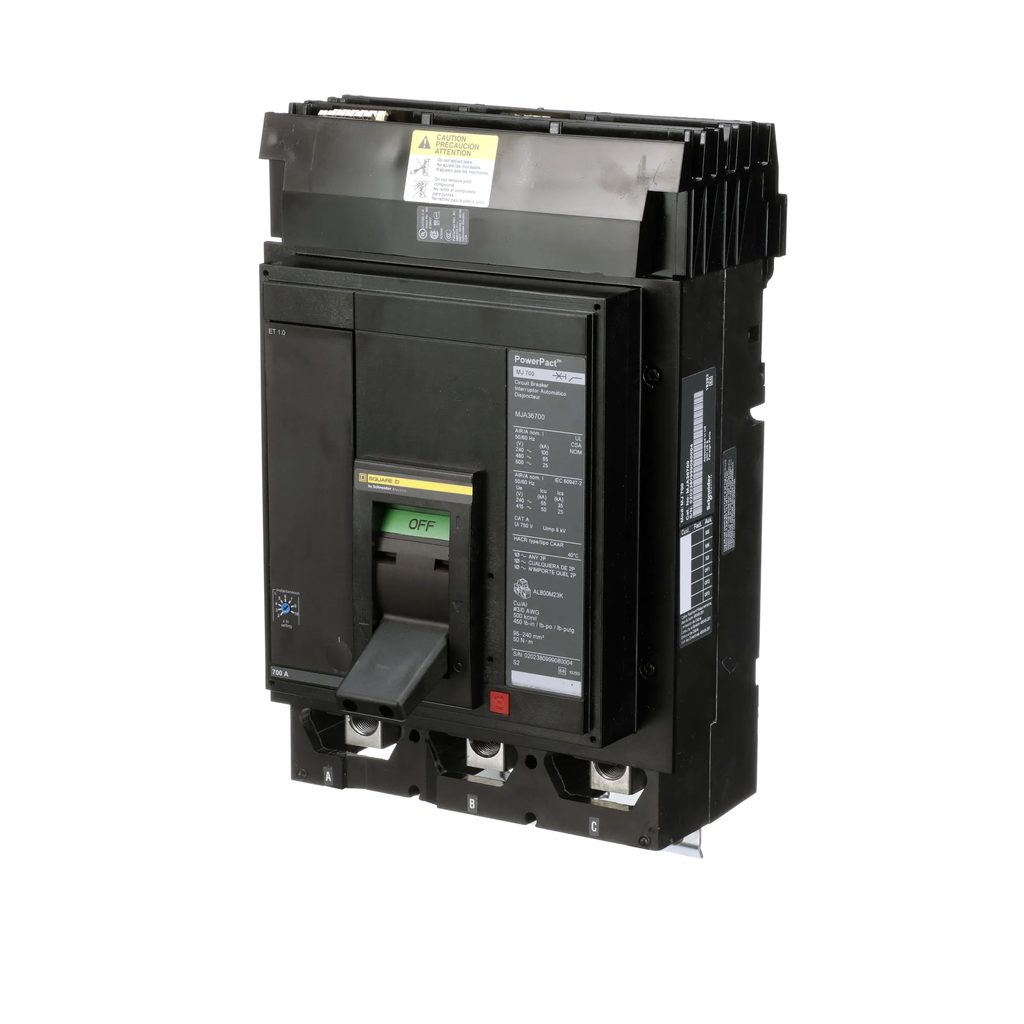

MJA36700 - Square D 700A 600V 3-Pole I-Line PowerPact M Molded Case Circuit Breaker

MJA36700

MJA36700 is a Square D PowerPact M-frame molded case circuit breaker rated for 700 amps, 600 volts, and 3 poles with I-Line mounting.This circuit breaker features an electronic trip unit with a thermal magnetic basic electronic ET 1.0 type trip, designed for power distribution applications. It offers high interrupt ratings of 100 kA at 240 VAC, 65 kA at 480 VAC, and 25 kA at 600 VAC. The breaker is UL 489 and CSA listed, suitable for panelboard and switchboard use, and provides reliable protection with adjustable coordination and true RMS sensing.

Key Specifications
• Amperage: 700 A
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: I-Line
• Frame Type: M (PowerPact M-frame)
• Interrupt Ratings: 100 kA @ 240 VAC, 65 kA @ 480 VAC, 25 kA @ 600 VAC
• Trip Unit: Electronic, Basic ET 1.0
• Certifications: UL 489, CSA Listed
• Frequency: 50/60 Hz
• Dimensions: Approx. 8.1 in L x 8.3 in W x 12.8 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MJA36700
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MJA
• Voltage : 600
• Amperage : 700
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Panel Mount
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Box Lug
• Frame Size : 800A/M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
• Breaker Type : Standard
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901862000
• GTIN : 00785901862000
• Country of Origin : Mexico

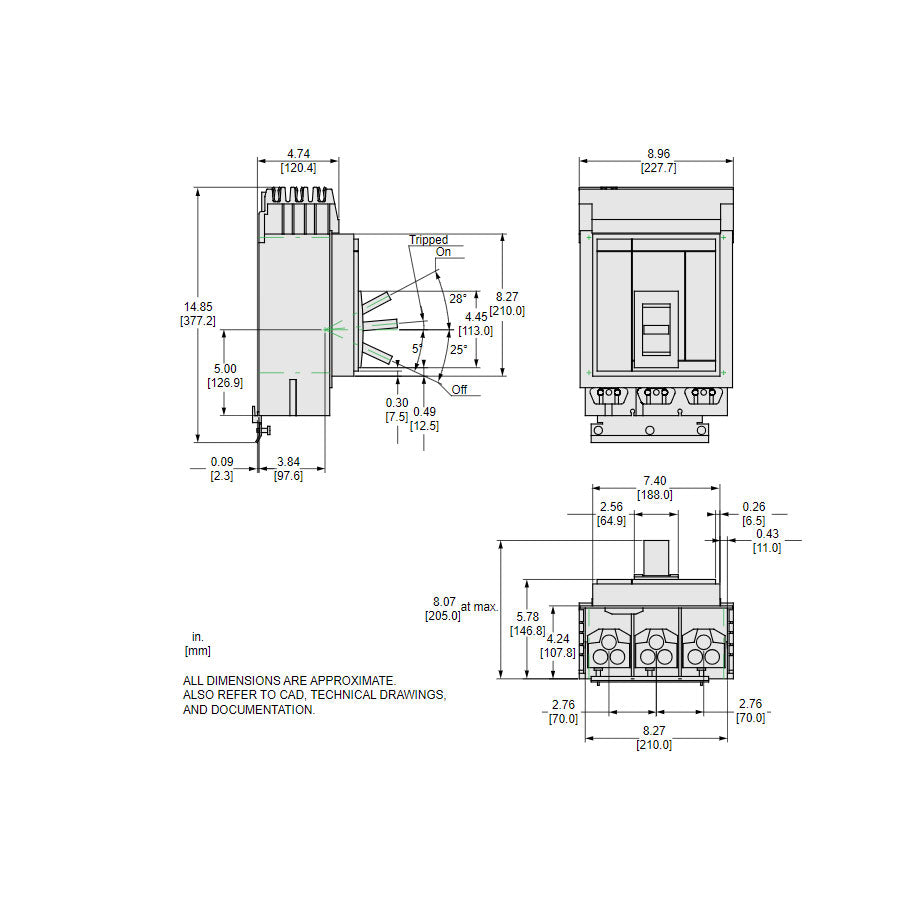

• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 28.731
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
