MJA36500YP - Schneider Electric 500A 600V 3-Pole Powerpact MJA Molded Case Circuit Breaker 65kA AIC I-Line

MJA36500YP

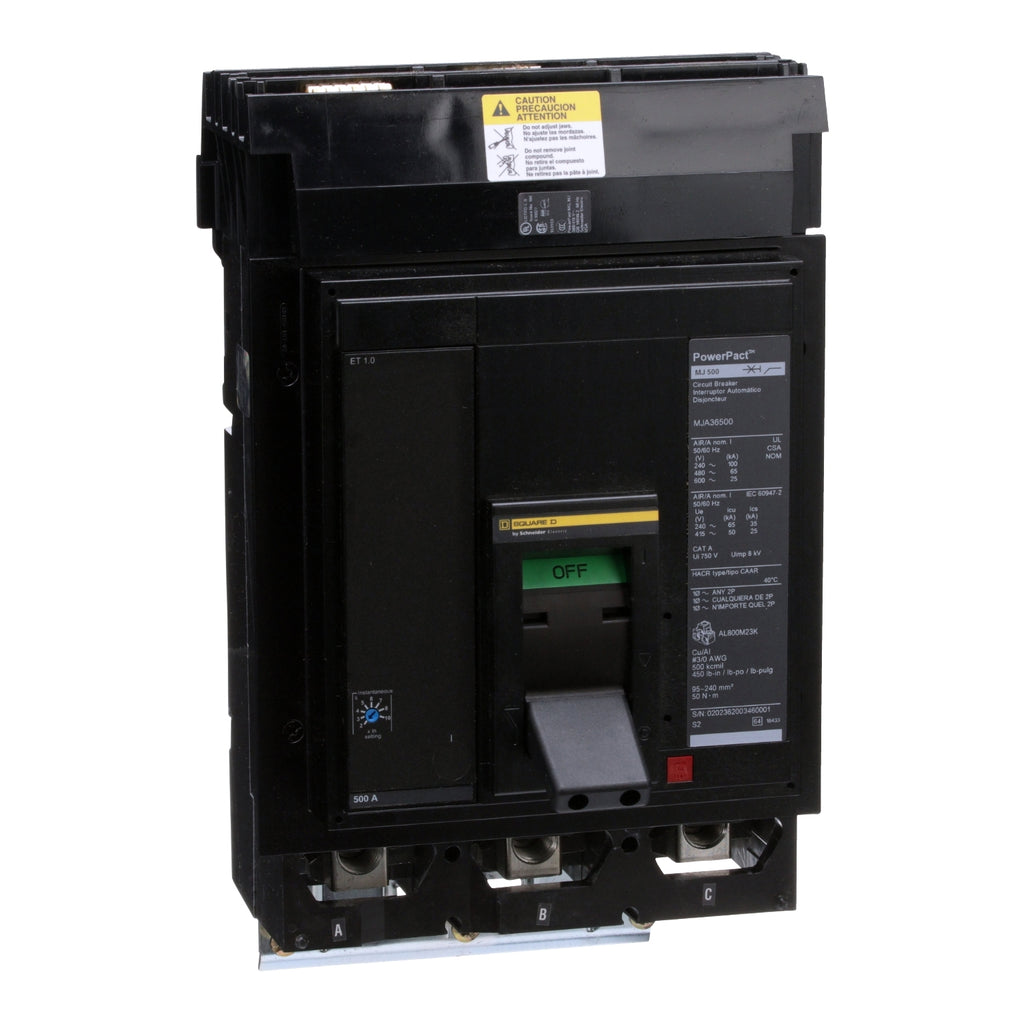

MJA36500YP is a Schneider Electric Powerpact MJA molded case circuit breaker rated for 500 amps and 600 volts with 3 poles and a 65kA interrupting capacity at 480V.

This circuit breaker features an M frame with electronic basic ET 1.0 trip unit technology, providing long-time and instantaneous trip functions. It is designed for I-Line plug-in mounting with load side lug terminals and solid state protection, suitable for three-phase ABC power systems. The breaker is UL listed and offers reliable overload and short circuit protection with a breaking capacity code J.

Key Specifications
• Amperage: 500A
• Voltage Rating: 600V AC
• Poles: 3
• Frame Type: M Frame
• Trip Unit: Electronic, Basic ET 1.0
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 65kA at 480V, 25kA at 600V
• Phase: 3 (ABC)
• Connection: I-Line style plug-in with load side lugs
• Trip Functions: Long-Time and Instantaneous (LI)
• UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MJA36500YP
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MJA
• Voltage : 600
• Amperage : 500
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : M Frame
• Protection : Solid State

Product Data

• Country of Origin : United States
• Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
• Weight : 29
