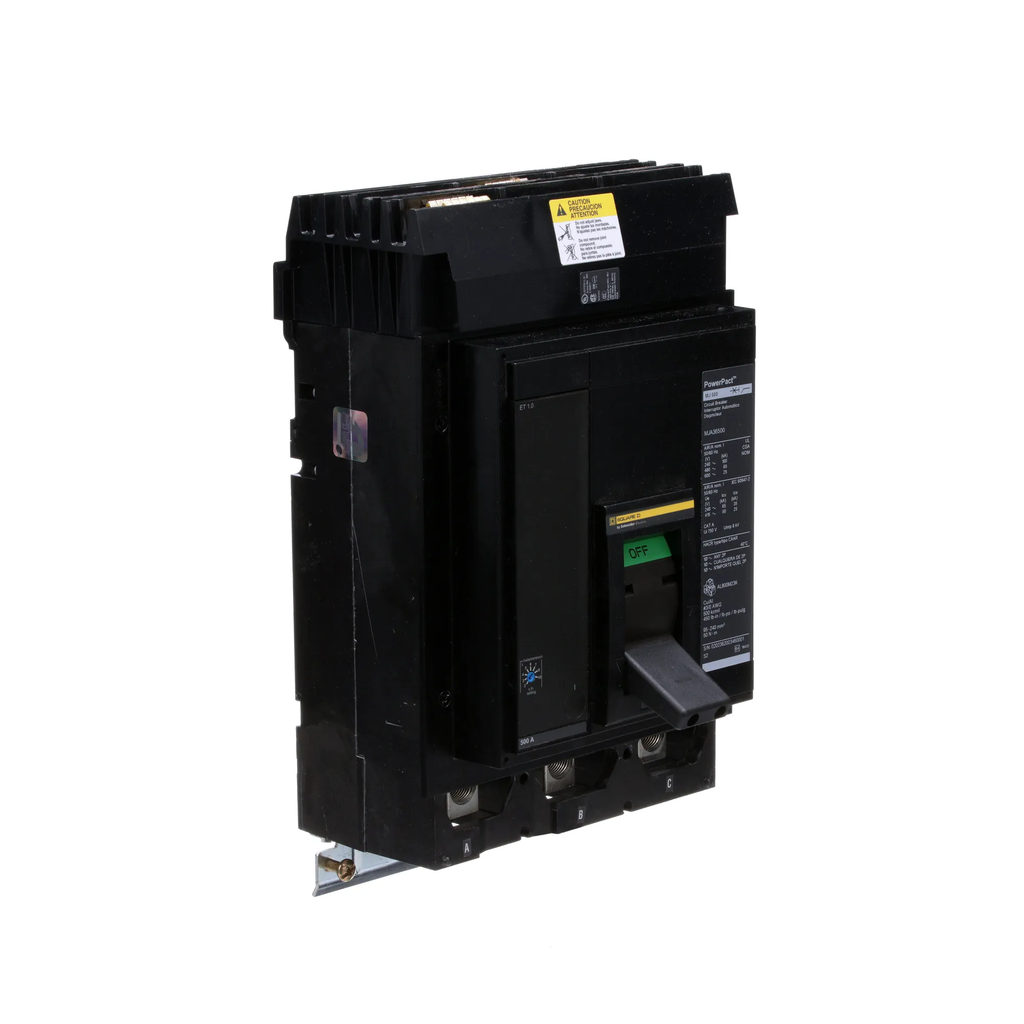

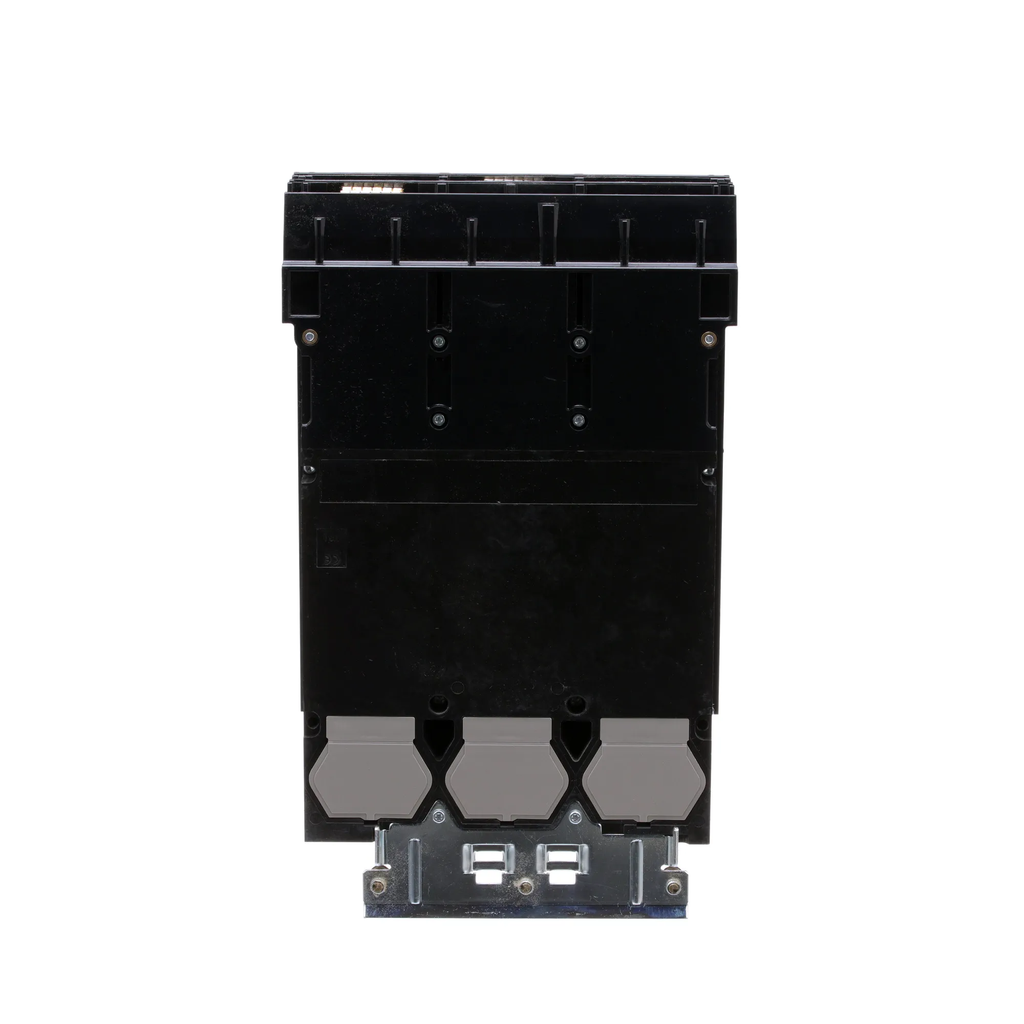

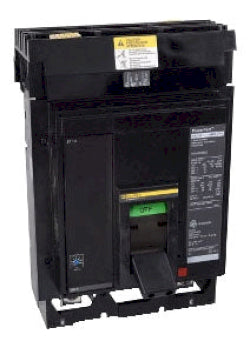

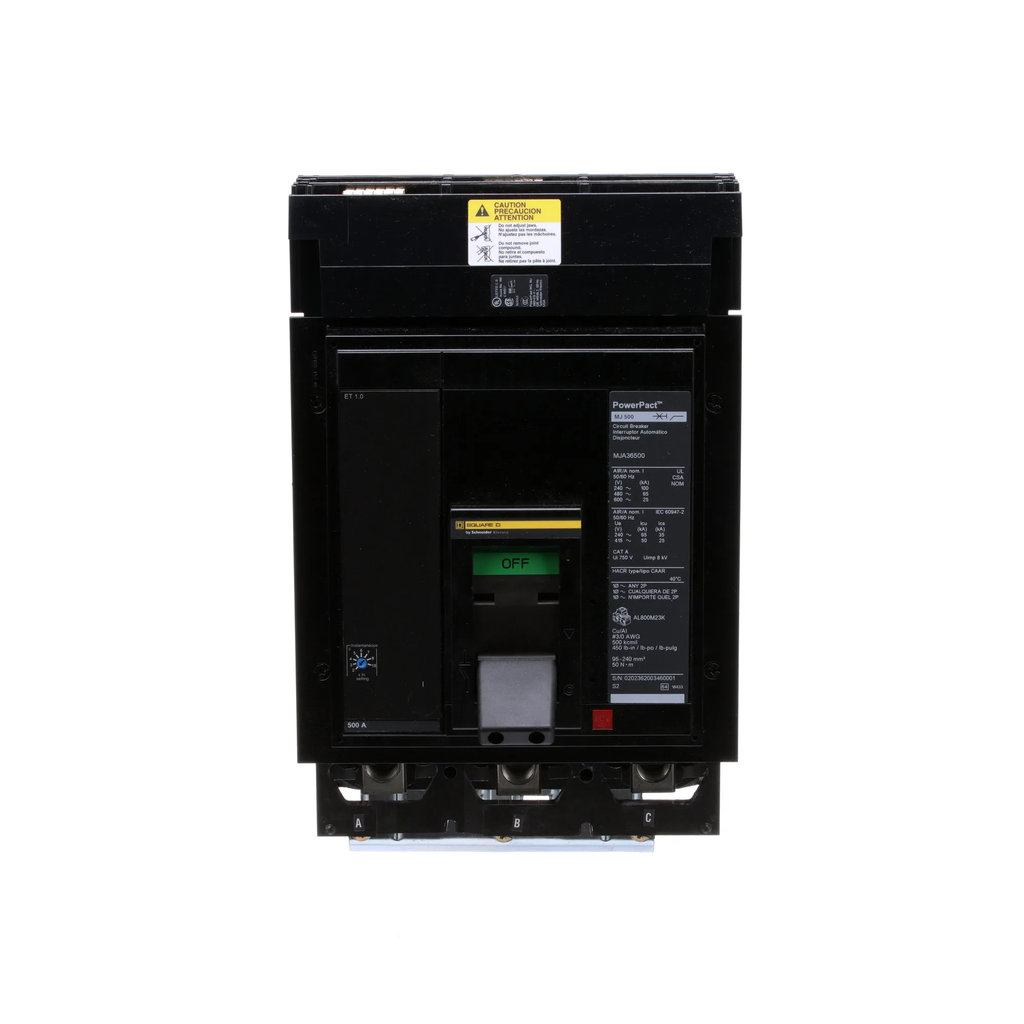

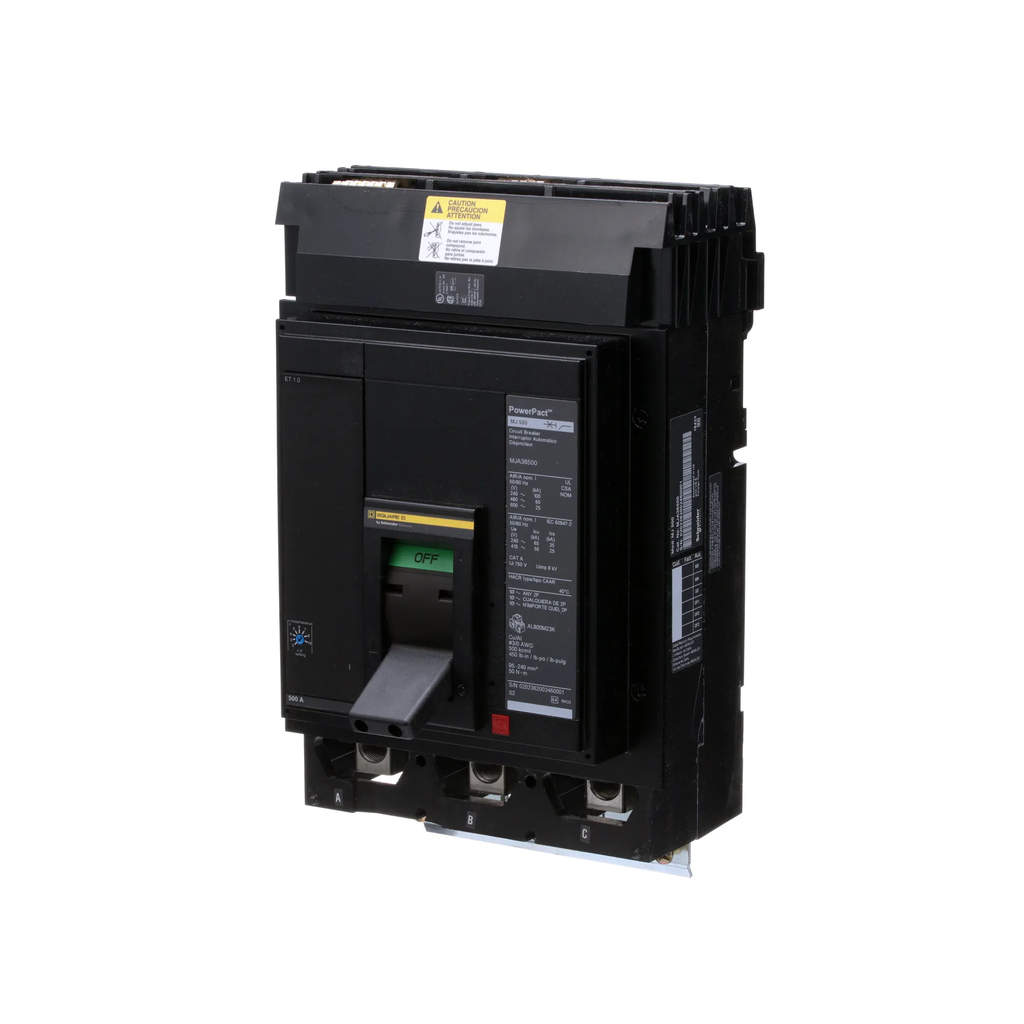

MJA36500 - Square D PowerPact M-Frame 500A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker with Electronic Trip, UL/CSA Listed

Save $5,595.15
SKU: MJA36500-New
Condition: New
Price:
$4,333.85 $9,929.00
Stock:
31 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

MJA36500 - Square D/ Schneider Electric I-Line Style Plug-In 500 Amp 3 Pole Circuit Breaker - Essential Electric Supply
MJA36500 - Square D PowerPact M-Frame 500A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker with Electronic Trip, UL/CSA Listed - Essential Electric Supply
MJA36500 - Square D PowerPact M-Frame 500A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker with Electronic Trip, UL/CSA Listed - Essential Electric Supply
MJA36500 - Square D PowerPact M-Frame 500A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker with Electronic Trip, UL/CSA Listed - Essential Electric Supply
MJA36500 - Square D PowerPact M-Frame 500A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker with Electronic Trip, UL/CSA Listed - Essential Electric Supply
MJA36500 - Square D PowerPact M-Frame 500A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker with Electronic Trip, UL/CSA Listed - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
MJA36500 - Square D/ Schneider Electric I-Line Style Plug-In 500 Amp 3 Pole Circuit Breaker - Essential Electric Supply
MJA36500 - Square D PowerPact M-Frame 500A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker with Electronic Trip, UL/CSA Listed - Essential Electric Supply
MJA36500 - Square D PowerPact M-Frame 500A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker with Electronic Trip, UL/CSA Listed - Essential Electric Supply
MJA36500 - Square D PowerPact M-Frame 500A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker with Electronic Trip, UL/CSA Listed - Essential Electric Supply
MJA36500 - Square D PowerPact M-Frame 500A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker with Electronic Trip, UL/CSA Listed - Essential Electric Supply
MJA36500 - Square D PowerPact M-Frame 500A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker with Electronic Trip, UL/CSA Listed - Essential Electric Supply

Description

MJA36500


MJA36500 is a Square D PowerPact M-Frame molded case circuit breaker designed for robust power distribution applications.

This 3-pole breaker features a 500A continuous current rating, 600VAC voltage rating, and a 25kA interrupting capacity at 600VAC, with additional ratings of 65kA at 480VAC and 100kA at 240VAC. It is equipped with an electronic trip unit (ET 1.0), offers I-Line panelboard and switchboard mounting, and is UL and CSA certified for safety and compliance. The breaker uses an ABC phase connection and is part of the PowerPact M series, known for reliable overload and short circuit protection.

    Key Specifications
  • Part Number: MJA36500
  • Manufacturer: Square D by Schneider Electric
  • Amperage: 500A
  • Voltage: 600VAC (50/60 Hz)
  • Poles: 3
  • Mounting Type: I-Line panelboard/switchboard
  • Interrupt Rating: 25kA @ 600VAC, 65kA @ 480VAC, 100kA @ 240VAC
  • Series/Frame: PowerPact M-Frame
  • Trip Unit: Electronic, ET 1.0
  • Certifications: UL Listed, CSA Approved
  • Connection: ABC phase
  • Application: Power distribution, commercial/industrial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: MJA36500
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : MJA
  • Voltage : 600
  • Amperage : 500
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : Panel Mount
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Box Lug
  • Frame Size : 800A/M
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
  • Breaker Type : Standard
  • Protection : Solid State
  • Phase Connection : CBA

Product Data

  • UPC : 785901575696
  • GTIN : 00785901575696
  • Country of Origin : Mexico

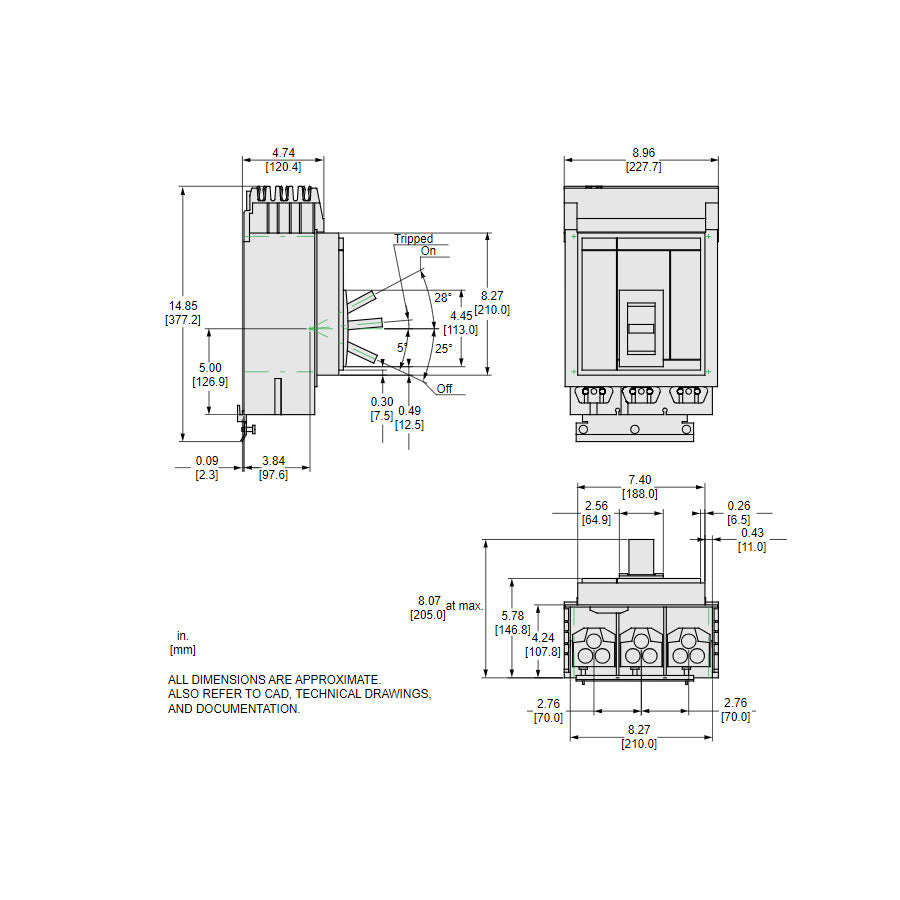

  • Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
  • Weight : 28.9
  • Panel Type : I Line Panelboards
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
