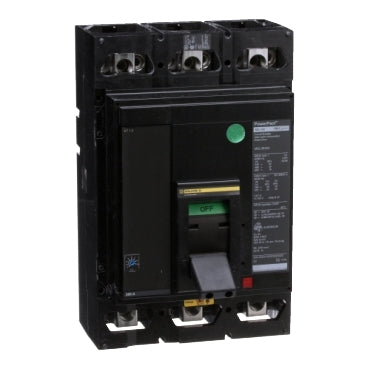

MGL36800SA - Square D Powerpact 800A 600V 3-Pole Molded Case Circuit Breaker

MGL36800SA

MGL36800SA is a 3-pole, 600 volt, 800 amp rated molded case circuit breaker from Square D with an AIC rating of 35kA at 480V and 65kA at 240V. This Powerpact M-Frame circuit breaker features electronic trip unit technology with long-time and instantaneous (LI) protection functions, solid state protection, and feed-thru configuration with line and load side lug terminals. The unit mount lug mounting mode and basic non-interchangeable 1.0 trip unit provide reliable performance for industrial power distribution applications.

• Manufacturer: Square D / Schneider Electric
• Part Number: MGL36800SA
• Poles: 3
• Amperage: 800A
• Voltage: 600V
• Series: Powerpact M-Frame
• Trip Functions: Long-Time and Instantaneous (LI)
• Interrupt Rating: 35kA @ 480V, 65kA @ 240V
• Connection: Feed-Thru with Line and Load Lugs
• Trip Unit: Electronic, Basic, ET 1.0
• Protection Type: Solid State
• Dimensions: 12.86 inches H x 0.32 inches W x 8.27 inches D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 110/130Vac shunt trip

Specifications

• Part Number: MGL36800SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MGL
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : M Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 078590159003
• GTIN : 00785901590033
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 28.99
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
