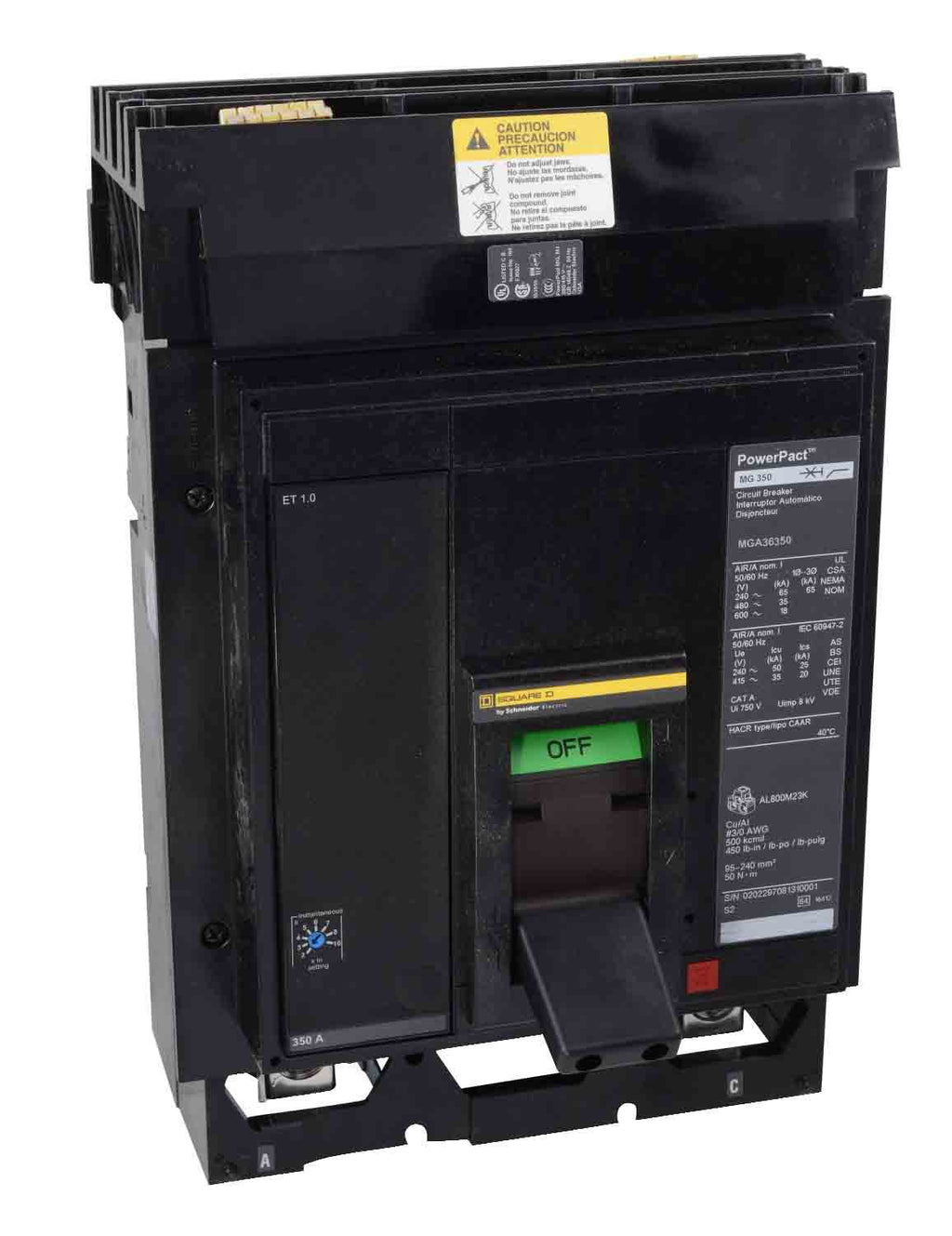

MGA36350 - Square D 350A 600VAC 3-Pole Molded Case Circuit Breaker I-Line Frame

MGA36350

MGA36350 is a Square D molded case circuit breaker designed for industrial power distribution applications.This circuit breaker features a 350 amp trip rating with a 600 volt AC rating and 3 poles. It uses the I-Line plug-in mounting style with an MGA frame and includes electronic trip unit technology (ET 1.0) with long time and instantaneous trip functions. The breaker has an 18kA interrupting rating at 600VAC and is UL, CSA, and IEC certified for safety and reliability.

• Amperage: 350A trip rating
• Voltage: 600VAC
• Poles: 3
• Frame Type: MGA (I-Line style plug-in)
• Interrupt Rating: 18kA at 600VAC
• Trip Unit: Electronic, ET 1.0, long time and instantaneous
• Mounting Type: I-Line plug-in
• Certifications: UL, CSA, IEC
• Continuous Current Rating: 80%
• Non-interchangeable solid state trip
• Load side lug terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MGA36350
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MGA
• Voltage : 600
• Amperage : 350
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size (3) 3/0 AWG (Cu/Al) Max. Wire Size (3) 500 kcmil (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901496090
• GTIN : 00785901496090
• Country of Origin : United States

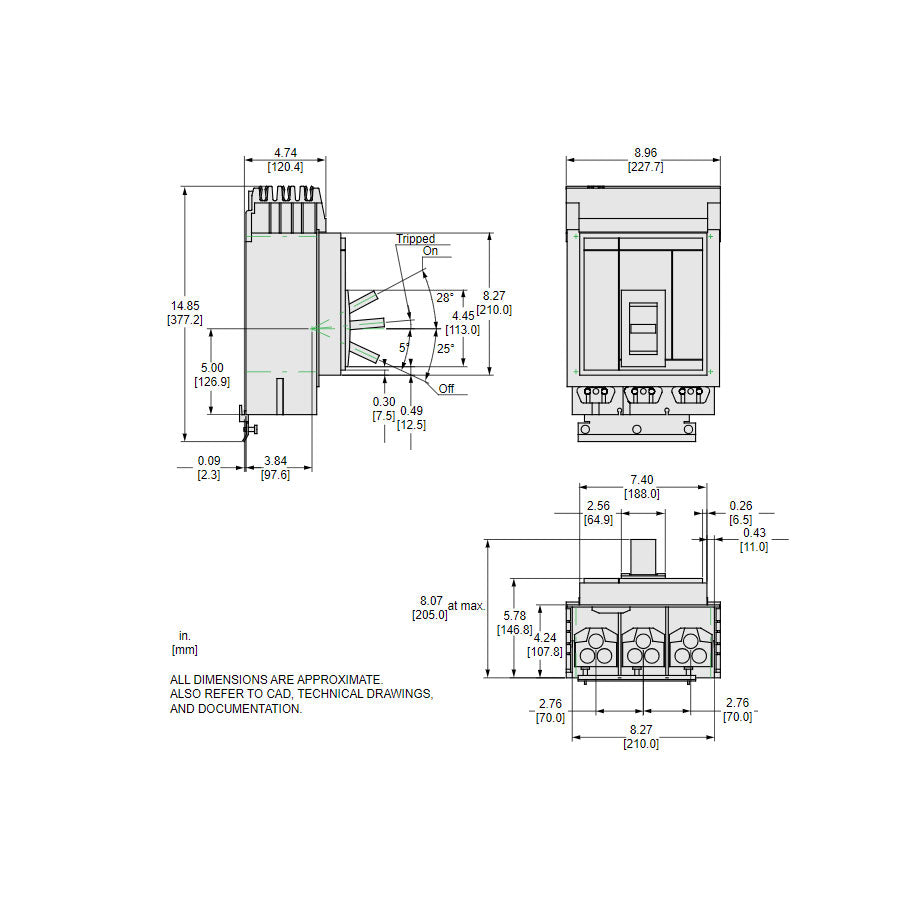

• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 29
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
