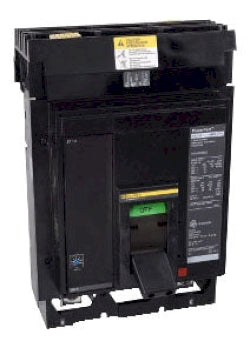

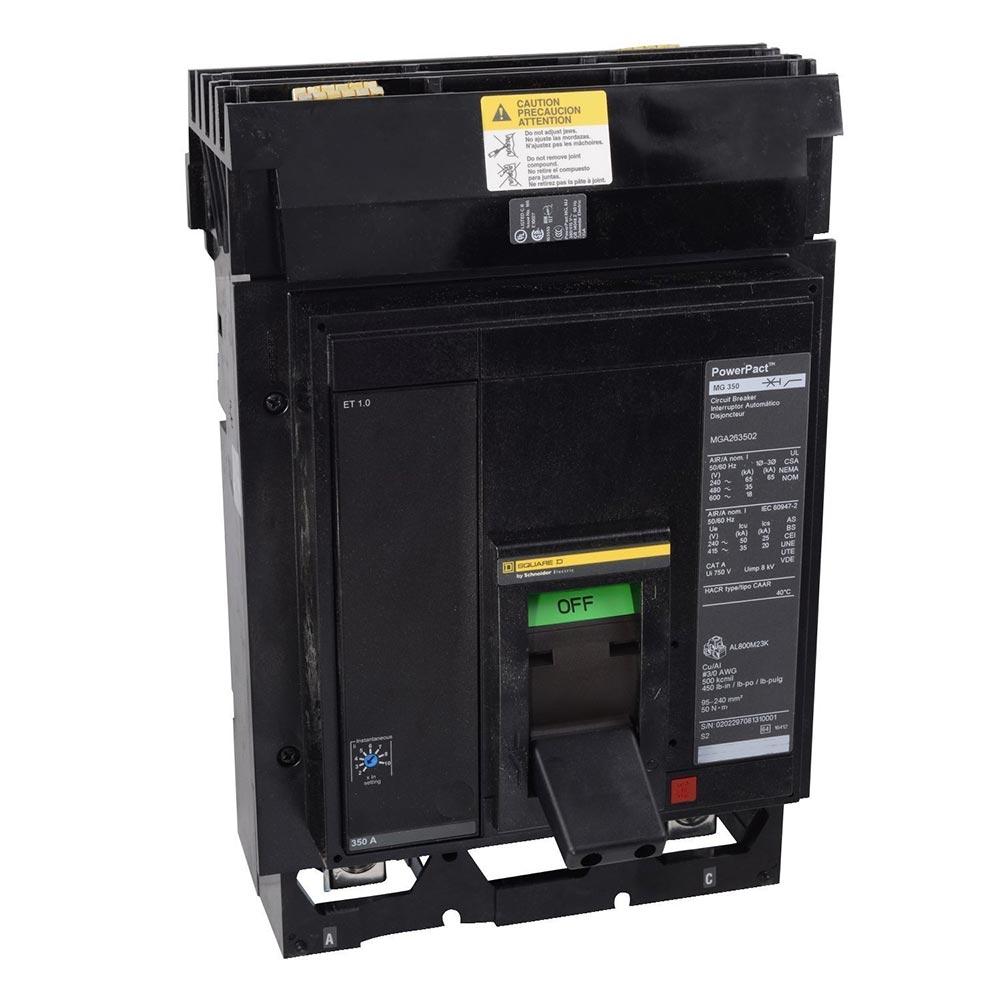

MGA36300 - Square D 300A 600V 3-Pole I-Line Molded Case Circuit Breaker M-Frame Electronic Trip

MGA36300

MGA36300 is a Square D molded case circuit breaker designed for power distribution applications with a 300 amp rating and 600 volt capacity.This 3-pole breaker features an M-frame design with an electronic basic ET 1.0 trip unit and I-Line plug-in mounting. It offers a 35 kA interrupt rating at 480V and is UL and CSA approved for reliable circuit protection.

• Amperage: 300A
• Voltage Rating: 600V AC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupt Rating: 35 kA at 480V AC
• Frame: M-Frame
• Trip Unit: Electronic Basic ET 1.0
• Certifications: UL Listed, CSA Approved
• Application: Power Distribution
• Compatible with Class 216 I-Line Panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MGA36300
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MGA
• Voltage : 600
• Amperage : 300
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size (3) 3/0 AWG (Cu/Al) Max. Wire Size (3) 500 kcmil (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901496038
• GTIN : 00785901496038
• Country of Origin : Mexico

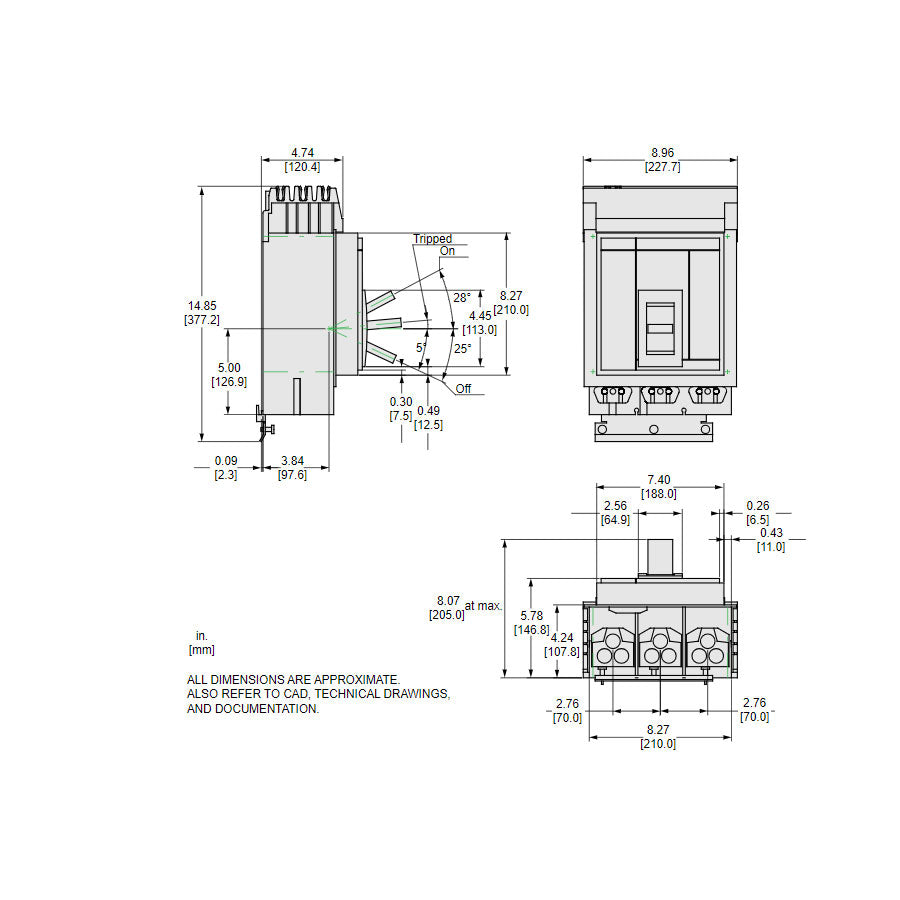

• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 29
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
