Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
MAL36000MV

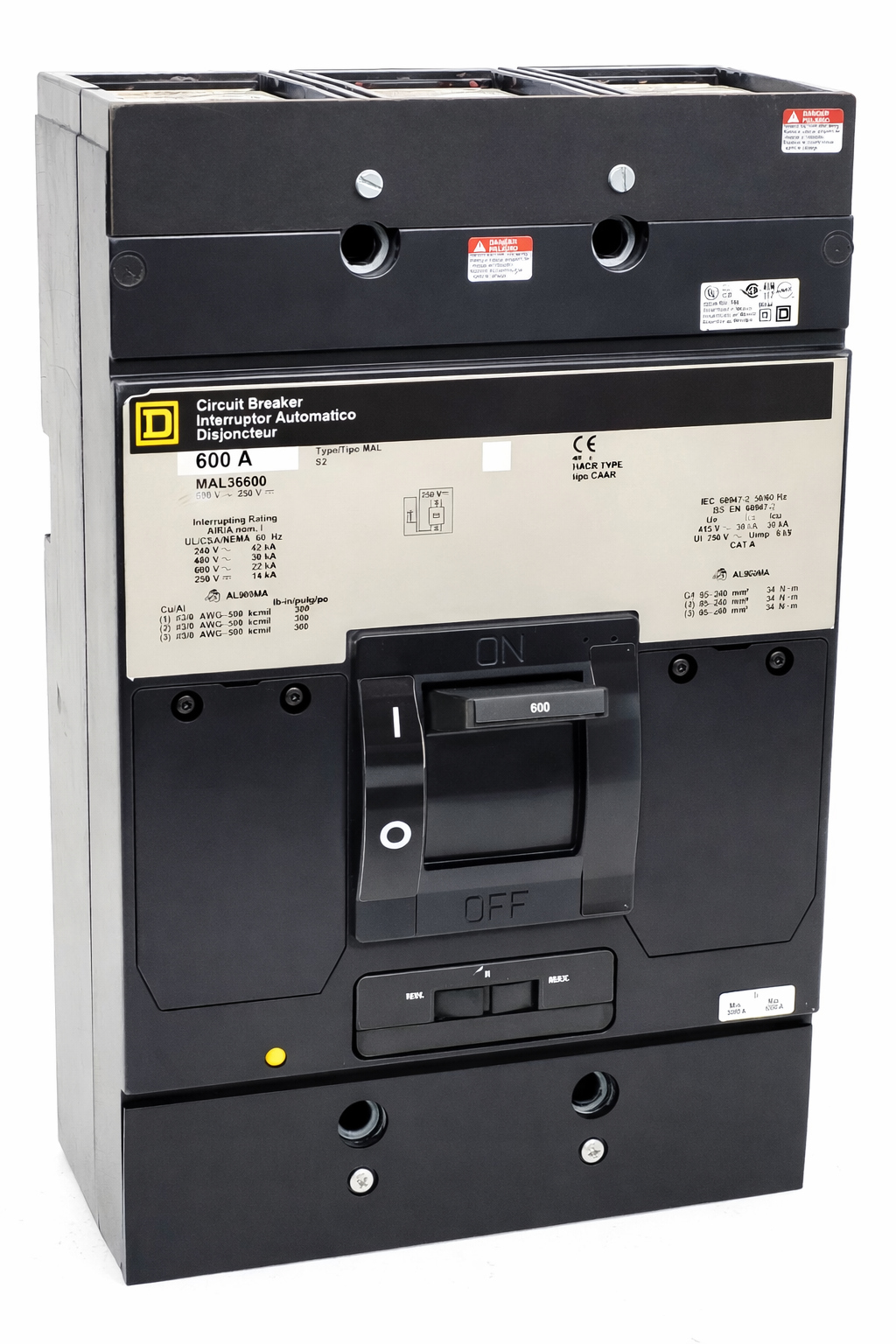

MAL36000MV is a 3-pole thermal magnetic molded case circuit breaker from Square D designed for 600 amps and 600 volts AC applications.This MAL series breaker features a feed-thru connection type with line and load side lug terminals. It provides a 30kA interrupting rating at 480V and includes long time, short time, and instantaneous trip functions for comprehensive protection. The breaker is built on the MAL frame and is suitable for three-phase power distribution systems.
- Manufacturer: Square D
- Series: MAL
- Amperage: 600A
- Voltage: 600VAC
- Poles: 3
- Interrupting Rating: 30kAIC at 480V
- Connection Type: Feed-Thru
- Trip Functions: Long Time, Short Time, Instantaneous
- Terminal Connection: Line and Load Side Lug
- Protection Type: Thermal Magnetic
- Frame Type: MAL
- Phase: 3
Specifications
- Part Number: MAL36000MV
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : MAL Series
- Type : MAL
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : Long Time, Short Time and Instantaneous Trip
- Protection : Magnetic Only
Product Data
- Weight : 40
