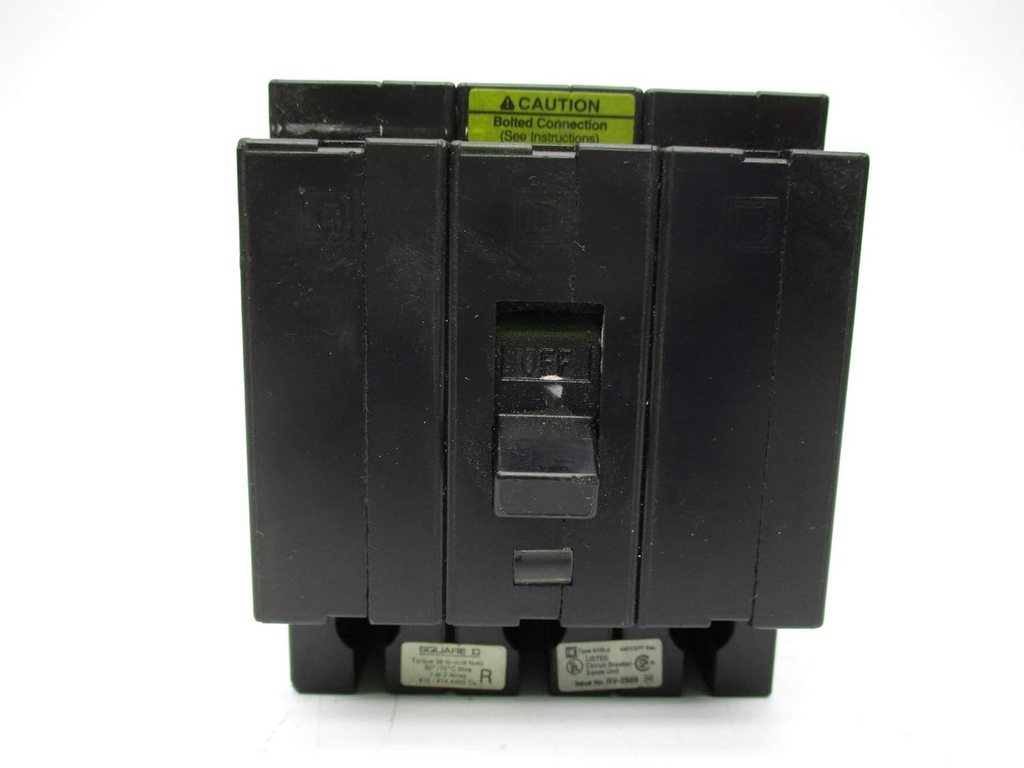

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Square D
- Sub-Category
- Molded Case
- Series
- EHB Series
- Frame
- EHB
- Rated current
- 70
- Voltage
- 480V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 14kA@277V
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- UPC
- 782634808015
- GTIN
- 00782634808015
Show all specifications (1 more)
- Weight
- 1
Product description & additional details
EHB34070
EHB34070 is a 3-pole, 70 amp, 480V bolt-on circuit breaker from Square D, designed for reliable protection in commercial and industrial power distribution systems. This EHB-series molded-case thermal-magnetic breaker features a 14kA interrupting rating at 480Y/277V and is ideal for use in panelboards and switchgear requiring bolt-on mounting. The EHB34070 provides dependable overcurrent protection for three-phase circuits, with a robust design suitable for demanding electrical environments. Its compact frame and bolt-on mounting make installation and replacement quick and secure. The breaker is rated for 480V AC, 70A continuous current, and is UL listed for safety and compliance.
- Part Number: EHB34070
- Manufacturer: Square D
- Series/Frame: EHB
- Amperage: 70A
- Poles: 3
- Voltage Rating: 480V AC
- Interrupting Rating: 14kA@480Y/277V
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic
- Frame Size: 100A
- UL Listed
- Three-Phase Operation
Specifications
- Part Number: EHB34070
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : EHB Series
- Type : EHB
- Voltage : 480
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 14kA@277V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 782634808015
- GTIN : 00782634808015
- Weight : 1
