Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Square D
- Sub-Category
- Magnetic Coil
- Frame
- 310
- Country of origin
- Mexico
- Nema Starter Size
- 2
- Frequency
- 50/60 Hz
- UPC
- 785901484882
- GTIN
- 00785901484882
- Dimensions
- Width 3.98 in (101.1 mm) x Height 2.61 in (66.2 mm) x Depth 2.43 in (61.7 mm)
- Weight
- 0.8
- Certification
- UL, CSA
Product description & additional details
3106340938

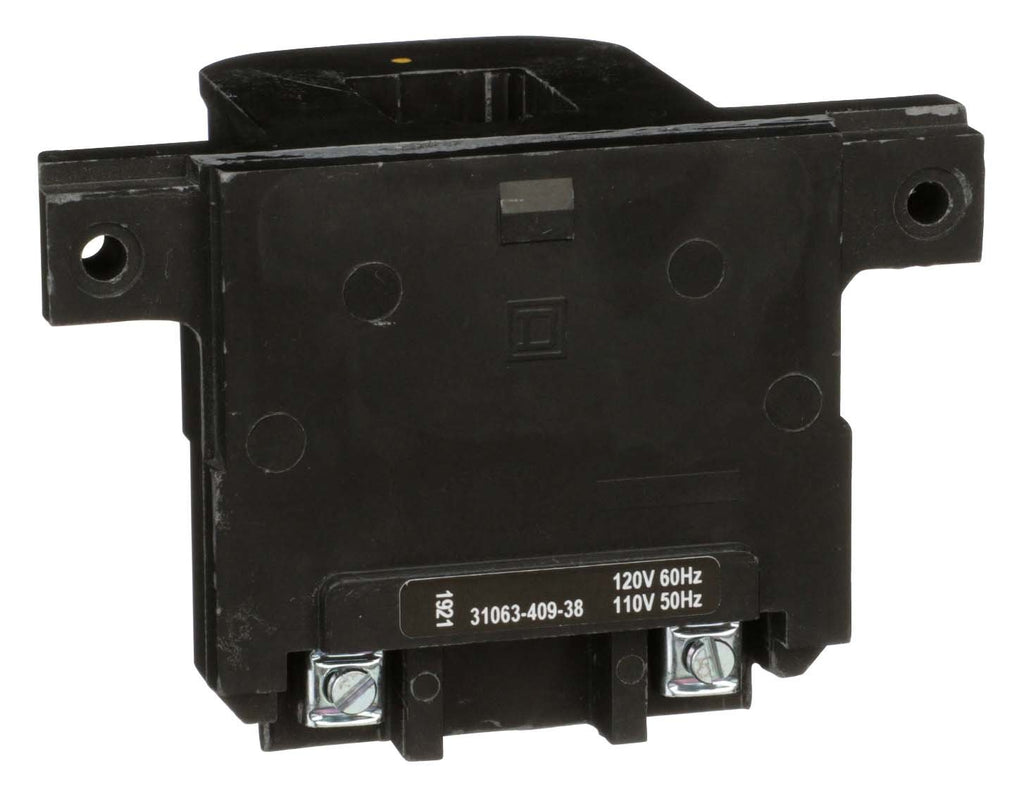

3106340938 is a Schneider Electric / Square D replacement AC magnet coil designed for use with Type S/SD motor starters or 8903SP lighting contactors in NEMA Size 2 frames. This coil operates at 110-120 V AC, 50/60 Hz and supports 2-pole or 3-pole configurations. It is rated for use with up to 60 A NEMA Size 2 (Class “SD”/“SP”) contactors or starters. The inrush power is approximately 296-311 VA and the sealed (holding) power is approximately 36-37 VA. The coil is fully encapsulated for protection, features screw-clamp connection terminals, and its approximate dimensions are 66.2 mm height × 101.1 mm width × 61.7 mm depth (2.6″ × 4.0″ × 2.4″).
- Manufacturer: Schneider Electric / Square D
- Product Type: Magnet (AC) Coil accessory
- Control Voltage: 110-120 V AC, 50/60 Hz
- Full Load Current Rating (on starter): 60 A
- Compatible Frames: NEMA Size 2, Type S/SD motor starters and 8903SP lighting contactors
- Power Consumption: ~311 VA inrush, ~37 VA sealed
- Mounting/Connections: Screw-clamp terminals, 2-pole or 3-pole use
Specifications
- Part Number: 3106340938
- Manufacturer : Square D
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Magnetic Coil
- Type : 310
- Nema Starter Size : 2
- Frequency : 50/60 Hz
Product Data
- UPC : 785901484882
- GTIN : 00785901484882
- Country of Origin : Mexico
- Dimensions : Width 3.98 in (101.1 mm) x Height 2.61 in (66.2 mm) x Depth 2.43 in (61.7 mm)
- Weight : 0.8
- Certification : UL, CSA
