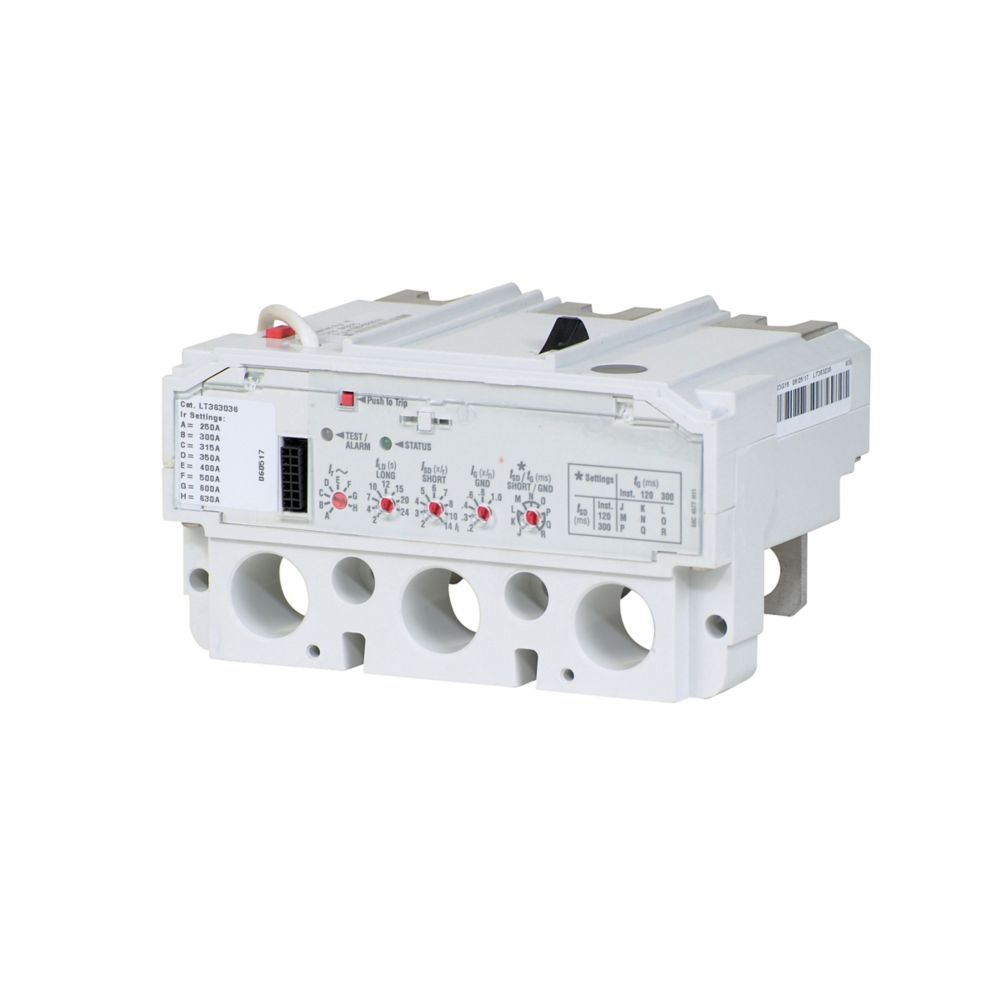

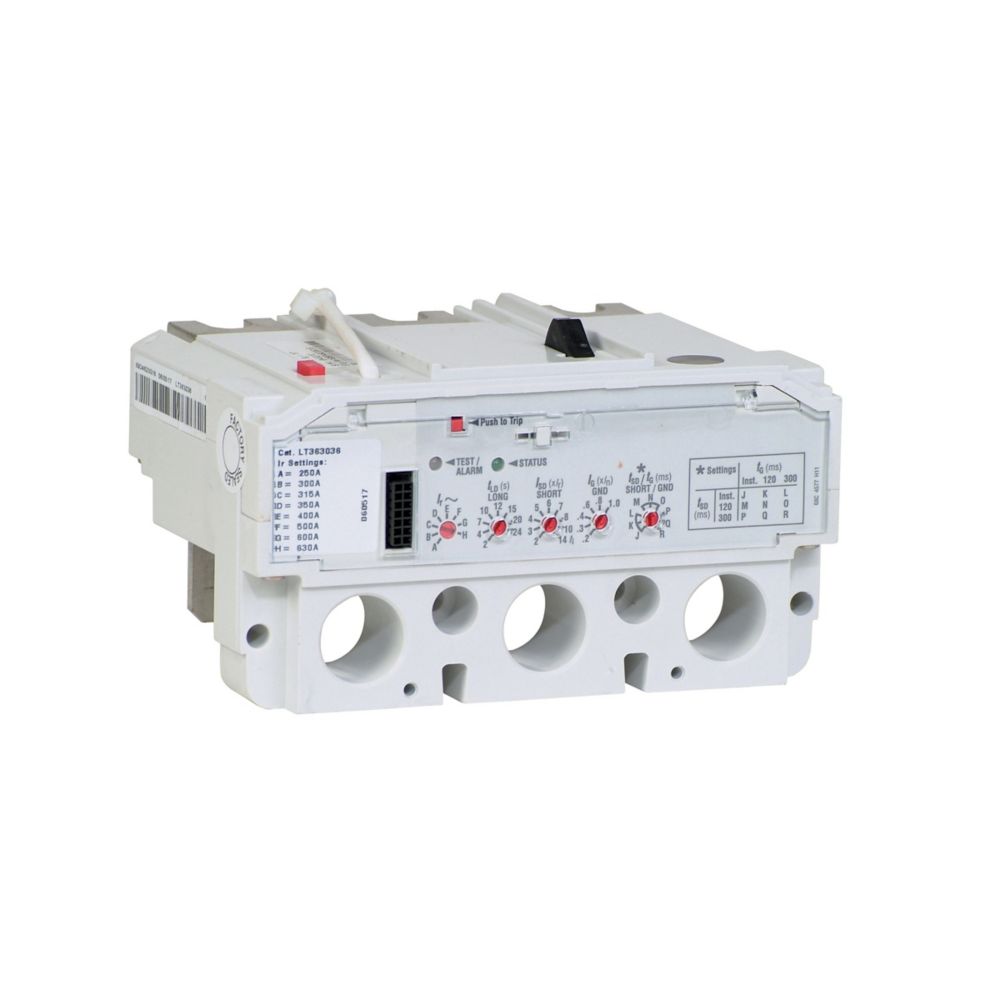

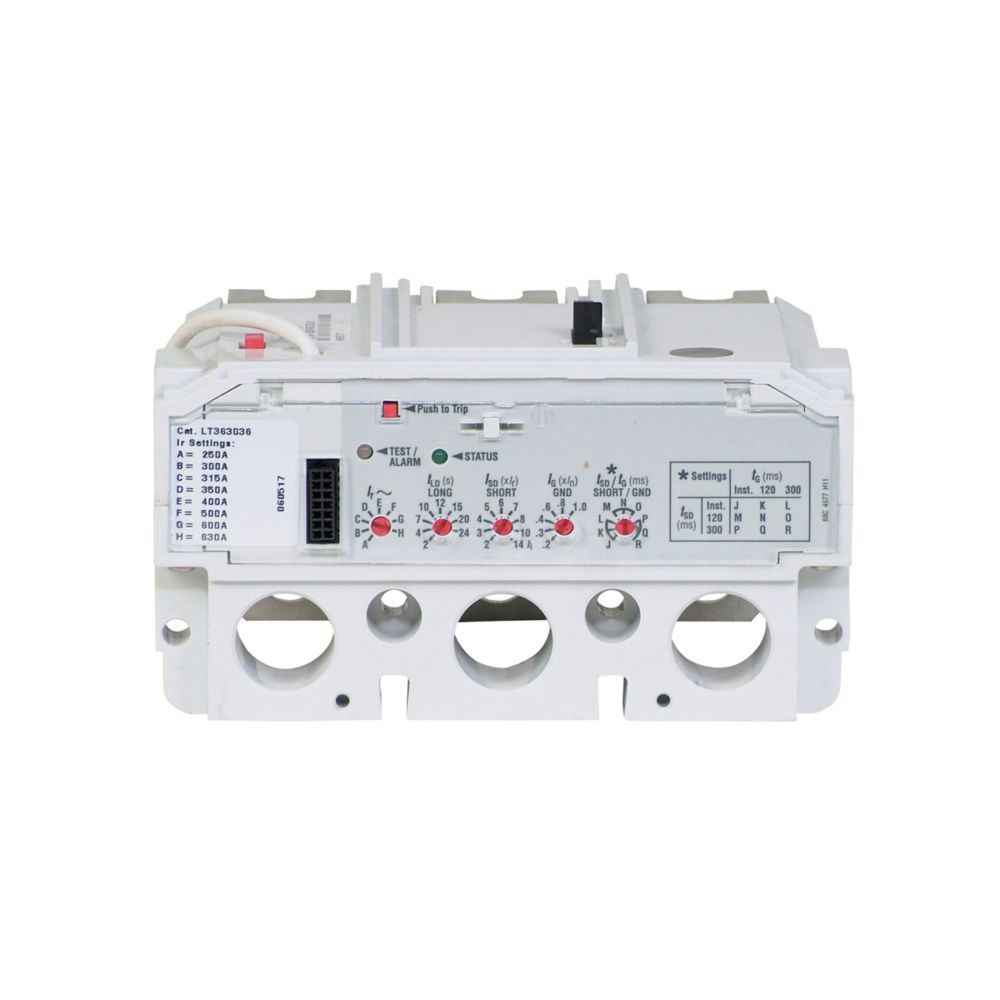

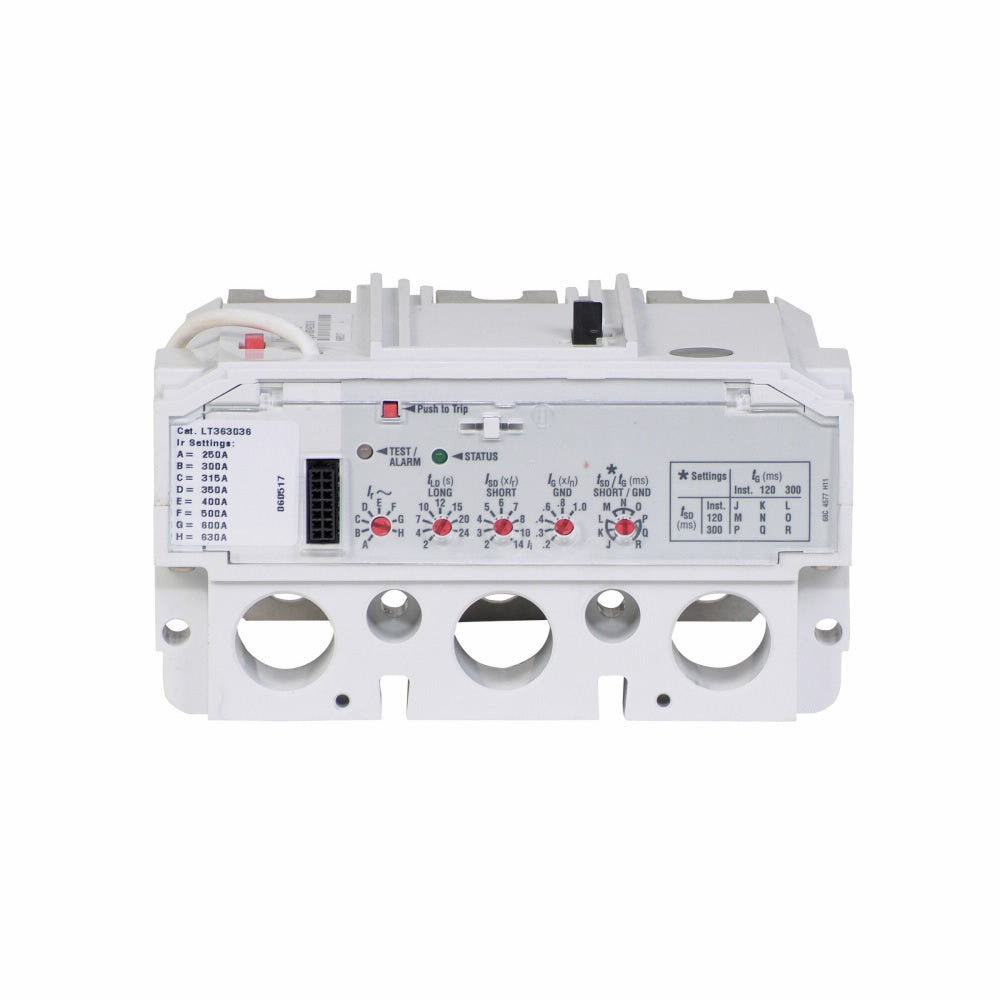

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Trip Units & Programmers
- Series
- Series G
- Frame
- LT
- Rated current
- 400
- Max current rating
- 400
- Voltage
- 600V
- Poles
- 3
- Trip functions
- LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Protection
- Solid State
- Standards
- IEC
- Country of origin
- United States
- Amperage Maximum
- 400
Show all specifications (6 more)
- Amperage Minimum
- 400
- Compatible Frames
- LGE,LGS,LGH,LGC,LGU,LGX
- UPC
- 782116366002
- GTIN
- 00782116366002
- Dimensions
- 8.5 in x 4 in x 4.5 in (Length/Depth x Height x Width)
- Weight
- 2.633
Product description & additional details
LT340036
LT340036 is a Cutler Hammer 400 Amp 3 Pole LSIG Electronic Trip Unit designed for LG frame circuit breakers.This trip unit features the Eaton 310+ LSIG Digitrip electronic trip technology, providing long time pickup with adjustable long and short delay times. It is UL and CSA approved, HACR rated, and complies with IEC standards. The unit is part of the Series G family and is suitable for use in 600 Volt applications.
- Key Specifications
- Amperage Rating: 400A
- Poles: 3
- Frame Type: LG
- Trip Type: 310+ LSIG Electronic
- Series: G
- Voltage Rating: 600V
- Approvals: UL, CSA
- HACR Rated
- Standards: IEC
Specifications
- Part Number: LT340036
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Series G
- Type : LT
- Voltage : 600
- Amperage : 400
- Poles : 3
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Amperage Maximum : 400
- Amperage Minimum : 400
- Protection : Solid State
- Compatible Frames : LGE,LGS,LGH,LGC,LGU,LGX
Product Data
- UPC : 782116366002
- GTIN : 00782116366002
- Country of Origin : United States
- Dimensions : 8.5 in x 4 in x 4.5 in (Length/Depth x Height x Width)
- Weight : 2.633
- Standards : IEC
