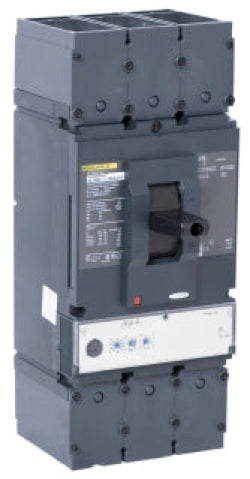

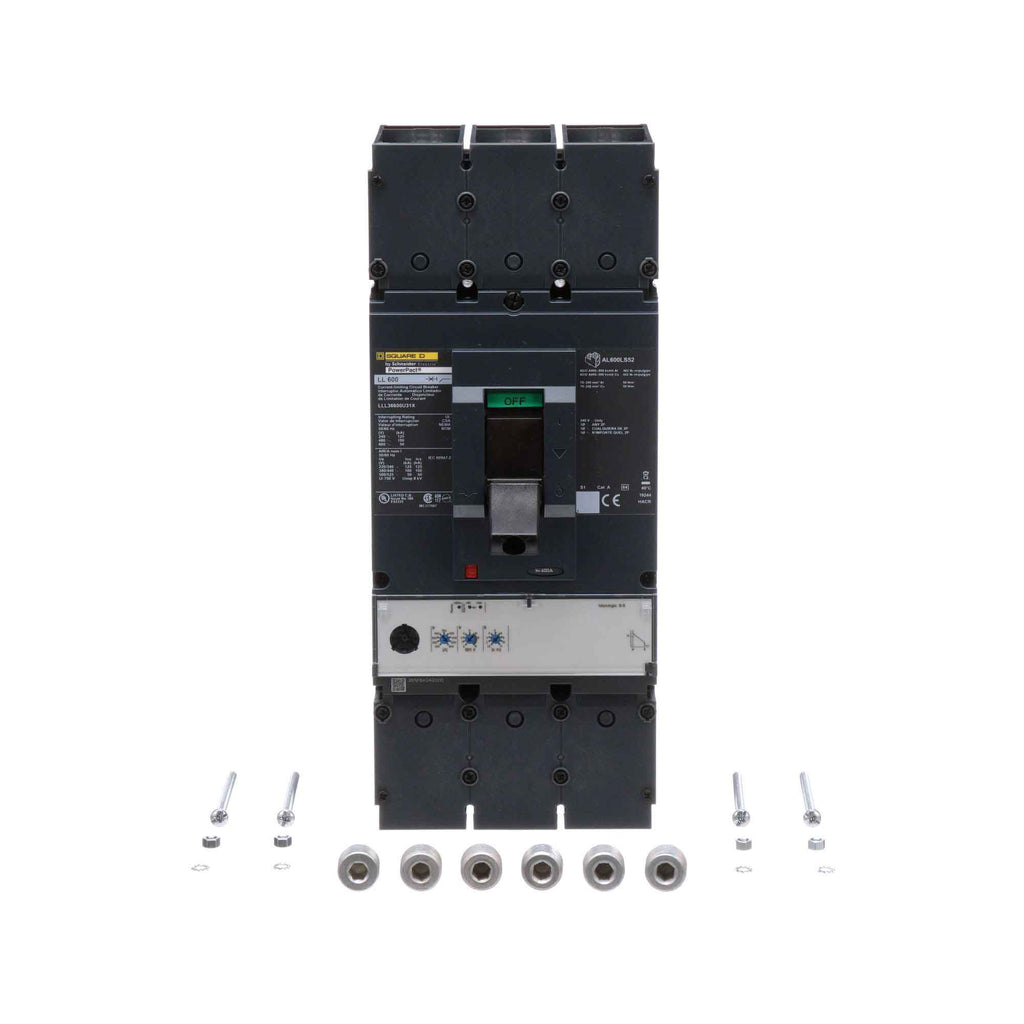

LLL36600U31X - Square D 600A 600V 3 Pole Molded Case Circuit Breaker L Frame with Micrologic 3.3 Trip

LLL36600U31X

LLL36600U31X is a Square D 3 pole molded case circuit breaker rated for 600 amps and 600 volts, designed for reliable power distribution protection.This L Frame breaker features a solid state electronic trip unit with Micrologic 3.3 standard trip providing long-time and instantaneous protection. It has a 100kA interrupt rating at 480V and is UL and CSA listed. The breaker includes feed-thru lugs for easy installation and is suitable for 3 phase applications.

• 600 Ampere current rating
• 600 Volt AC maximum voltage
• 3 Pole configuration
• L Frame type
• Micrologic 3.3 electronic trip unit
• 100kA interrupt rating at 480V
• Feed-thru lug connection
• UL and CSA certified
• Solid state electronic trip
• Dimensions: 5.51" W x 4.33" D x 13.38" H
• Weight: approximately 13.67 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LLL36600U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LLL
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 785901542537
• GTIN : 00785901542537
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 15
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
