LLA36250U33X - Square D 250A 600V 3P I-Line Plug-In Molded Case Circuit Breaker, PowerPacT L-Frame, Micrologic 3.3S Trip, 100kA Interrupt

LLA36250U33X

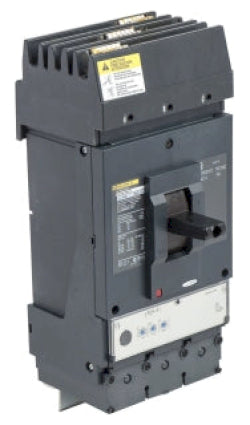

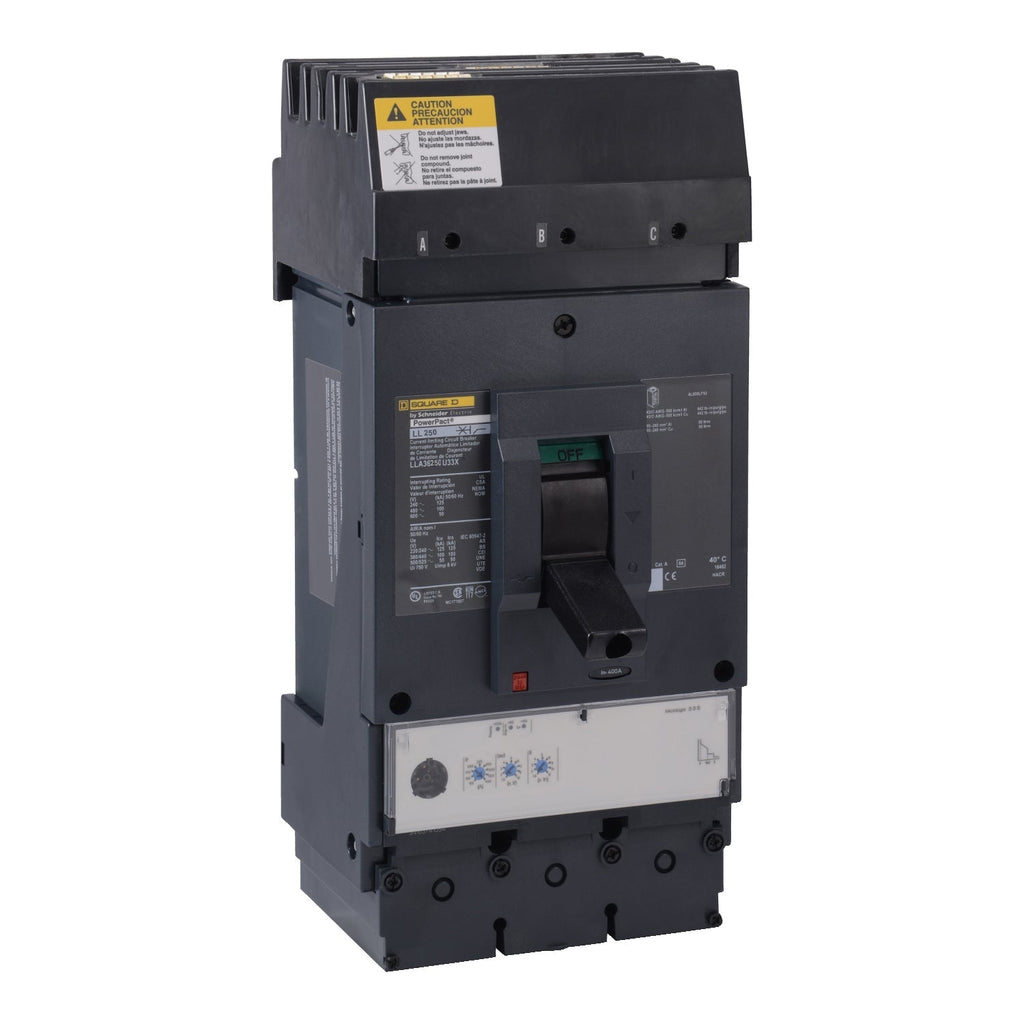

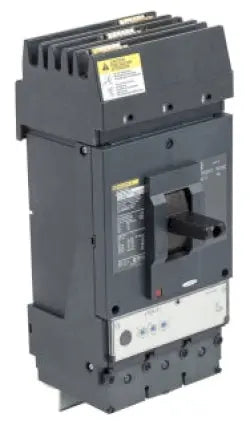

LLA36250U33X is a Square D PowerPacT L-Frame molded case circuit breaker designed for reliable protection in demanding electrical applications.

This 3-pole, 250A, 600V AC circuit breaker features an I-Line style plug-in mounting, electronic Micrologic 3.3S trip unit with LSI protection, and a high interrupting capacity. It is suitable for use in commercial and industrial power distribution systems, offering solid-state electronic protection and easy installation.

Key Specifications
• Part Number: LLA36250U33X
• Manufacturer: Square D (Schneider Electric)
• Amperage: 250A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: I-Line style plug-in
• Interrupt Rating: 100kA @ 480V
• Series/Frame: PowerPacT L-Frame
• Trip Unit: Micrologic 3.3S, electronic, LSI (Long-Time, Short-Time, Instantaneous)
• Certifications: UL listed
• Connection: I-Line connection line / lugs load
• Wire Size: AWG 2...600 kcmil copper / AWG 2...500 kcmil aluminum
• Continuous Current Rating: 80%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LLA36250U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LLA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : L Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 708556513516
• Country of Origin : United States

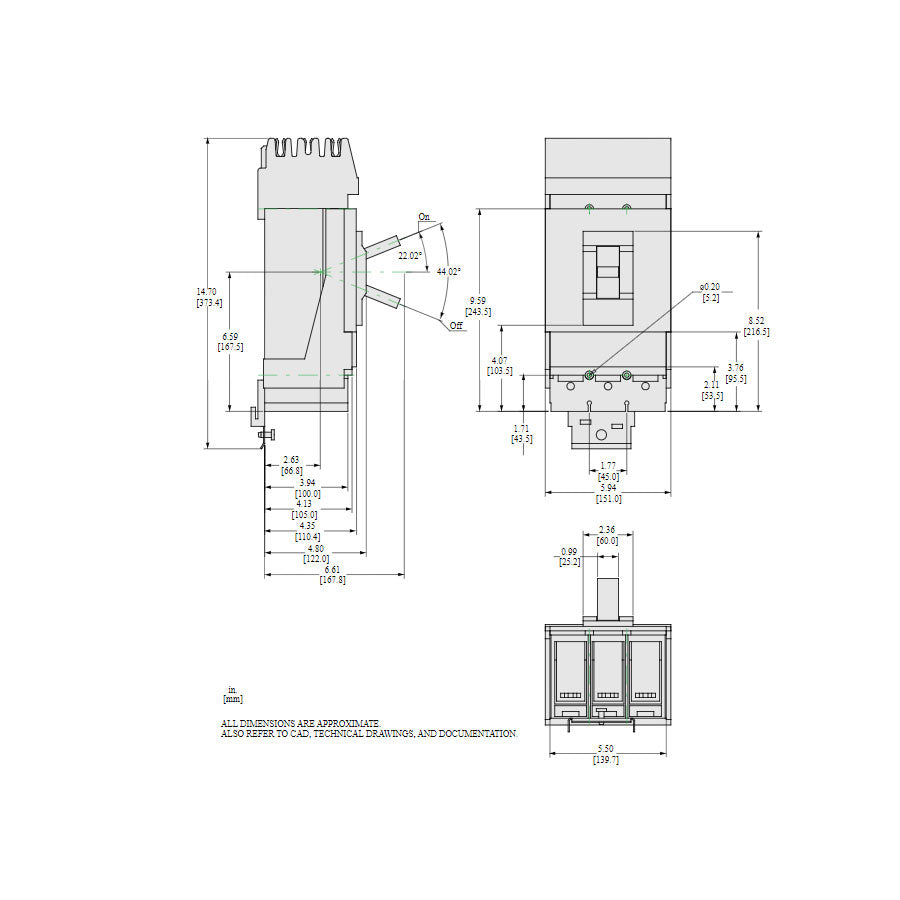

• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 2...600 kcmil copper
  AWG 2...500 kcmil aluminium
