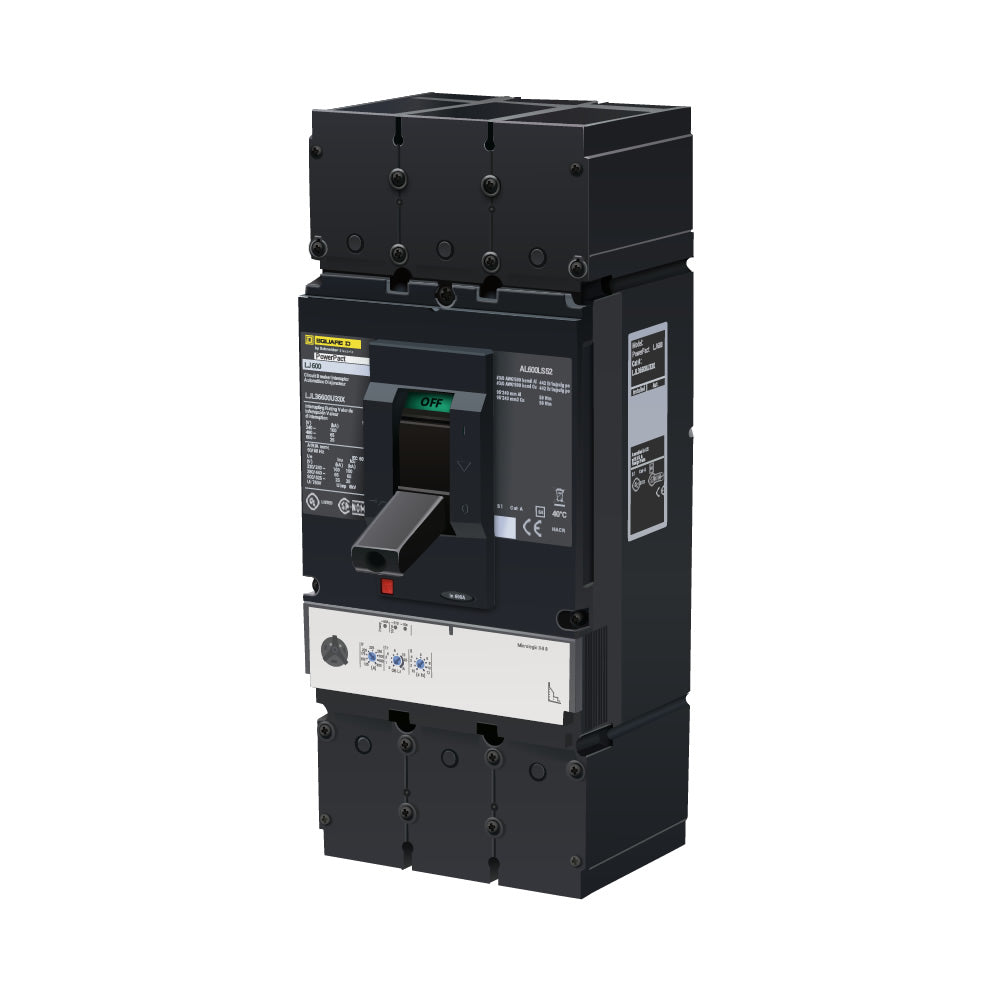

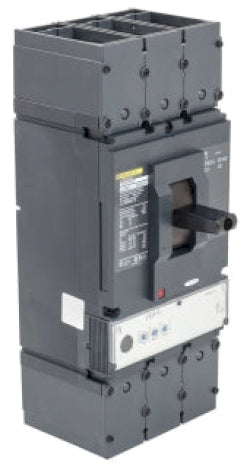

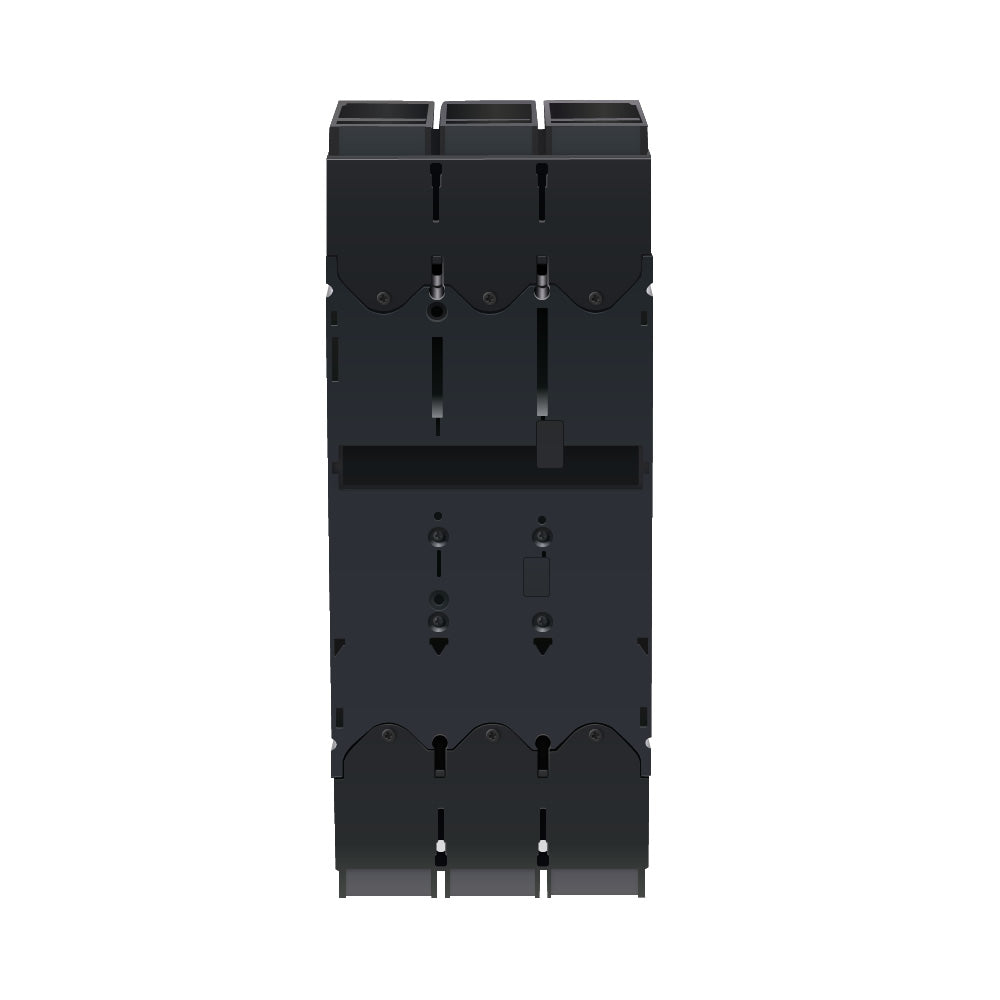

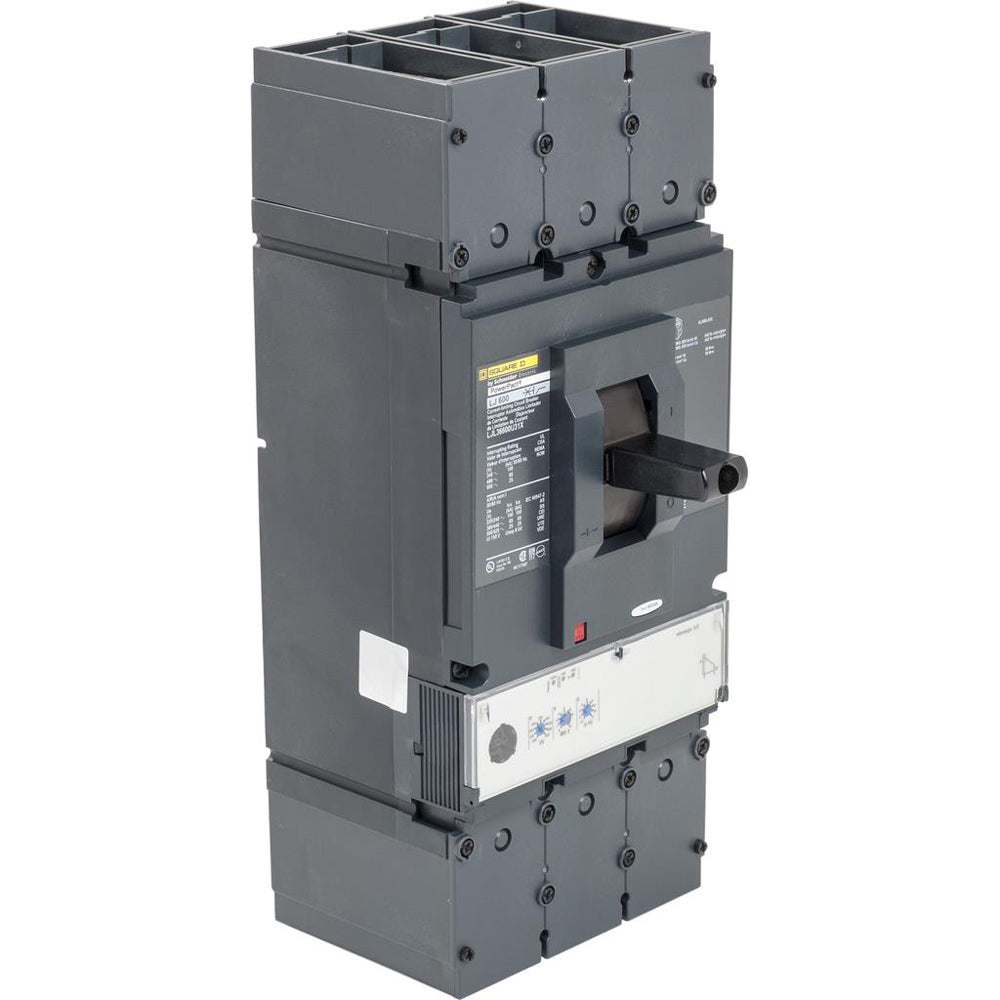

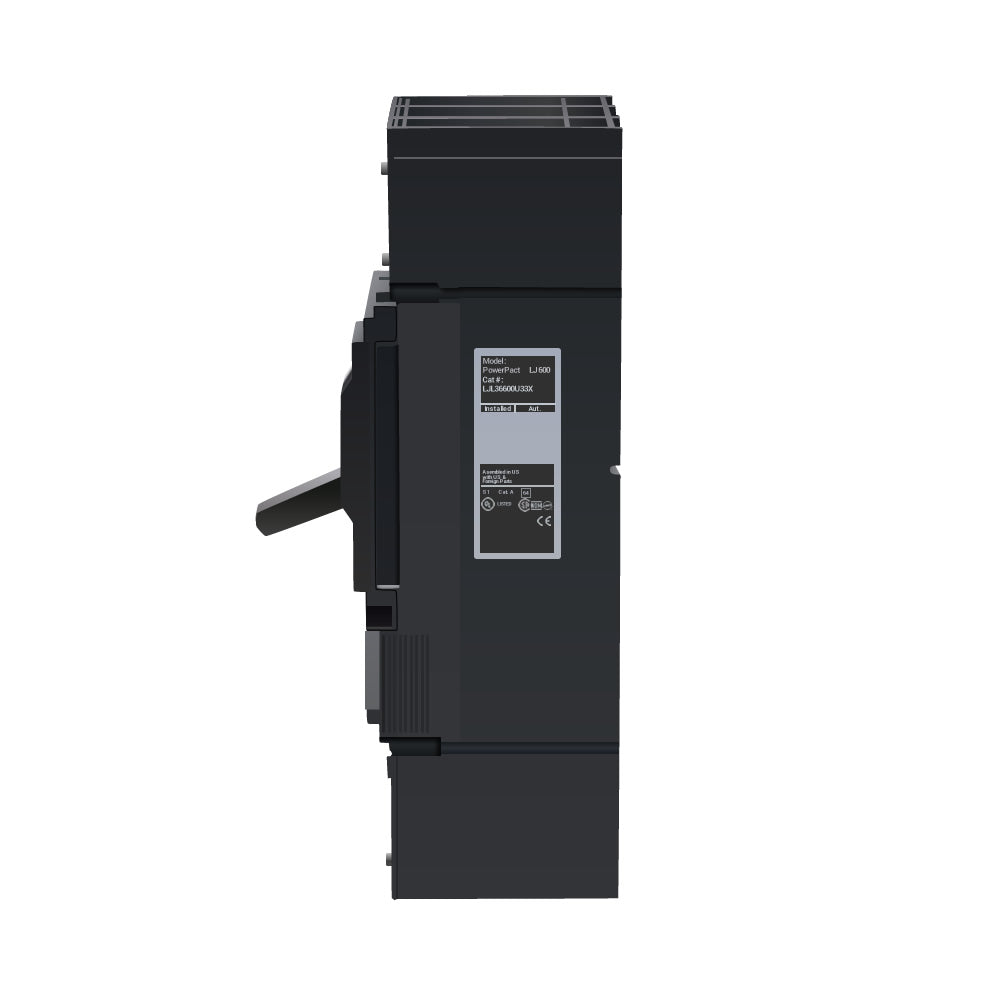

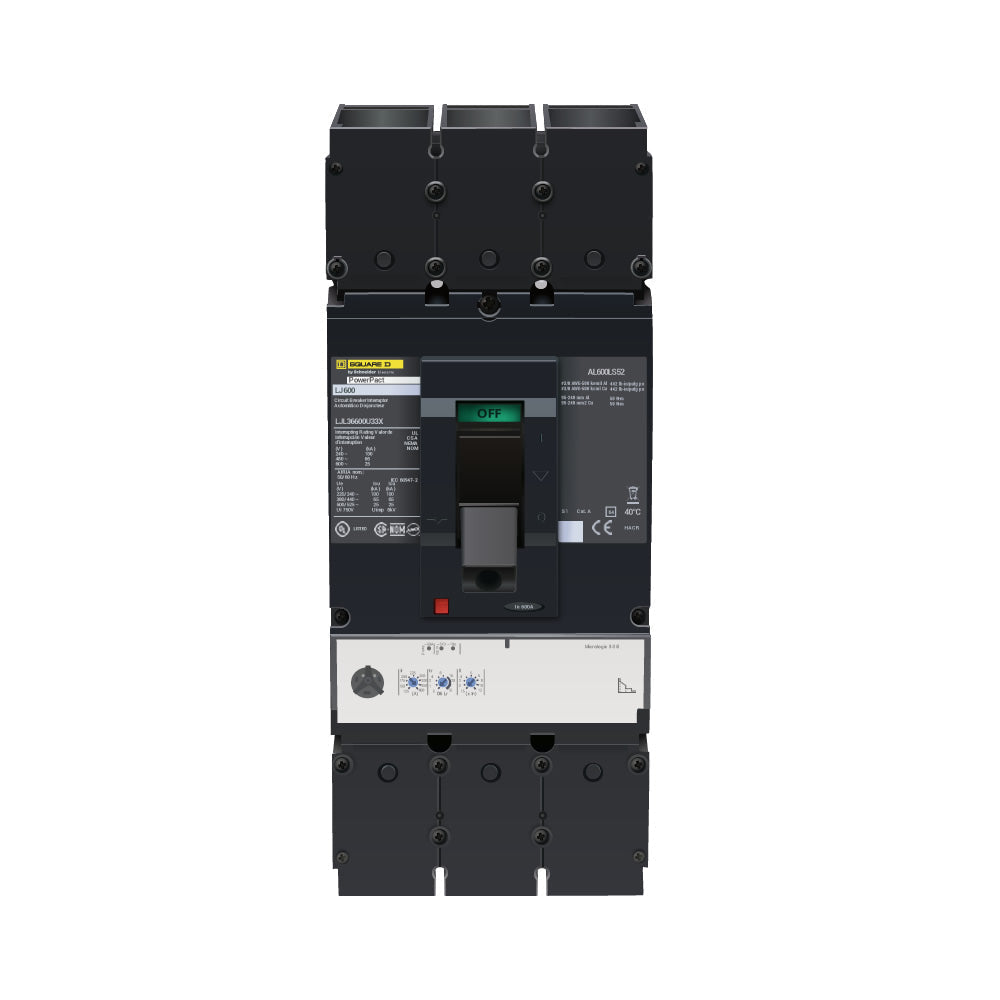

LJL36600U33X - Square D 600A 600VAC 3-Pole PowerPact L-Frame Circuit Breaker with MicroLogic 3.3S Trip Unit

LJL36600U33X

LJL36600U33X is a 3-pole molded case circuit breaker from Square D's PowerPact L-Frame series designed for 600 amps and 600VAC applications.This circuit breaker features a solid state protection system with MicroLogic 3.3S electronic trip unit providing long time, short time, and instantaneous trip functions for reliable overload and short circuit protection.

Key Specifications
• Amperage: 600A
• Voltage Rating: 600VAC
• Poles: 3
• Series/Frame: PowerPact L-Frame (LJL)
• Interrupting Rating: 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC
• Mounting Type: Unit Mount
• Trip Unit: MicroLogic 3.3S electronic
• Connection Type: Feed Thru with line and load lugs
• Wire Gauge Compatibility: AWG 2/0 to 500 kCMIL (Aluminum/Copper)
• Certifications: CE, CCC, UL, CSA, NMX, RoHS
• Actuator Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LJL36600U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LJL
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Protection : Solid State

Product Data

• UPC : 785901976301
• GTIN : 00785901976301
• Country of Origin : Mexico

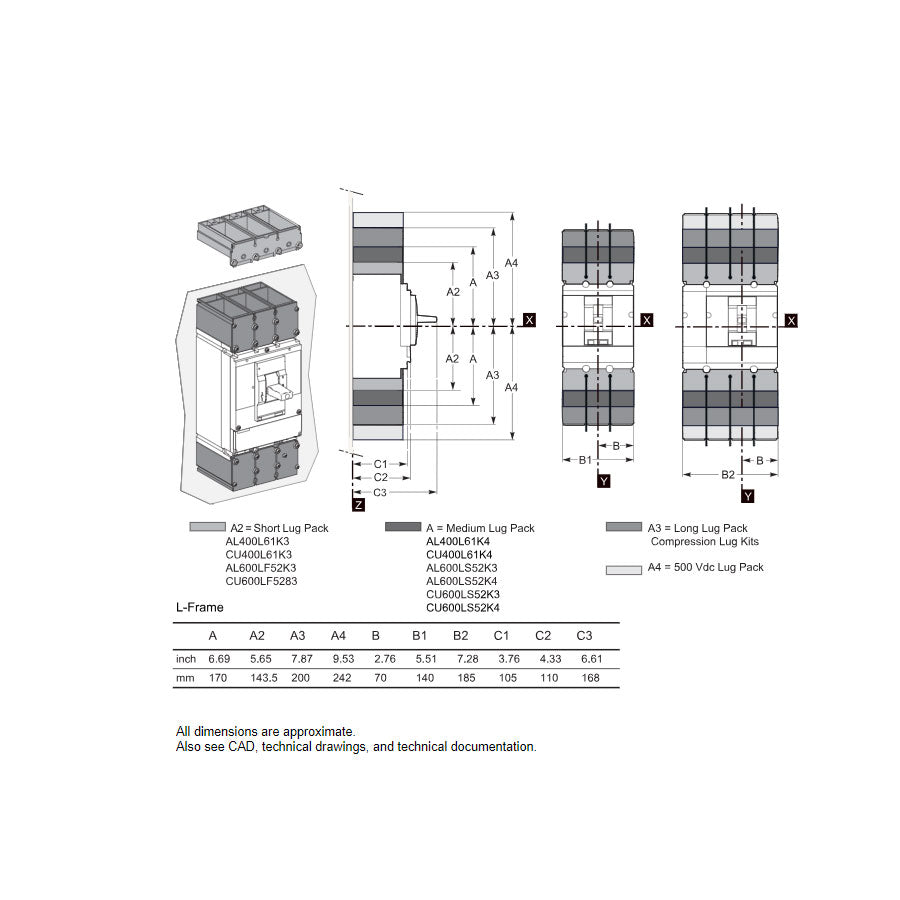

• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 15
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
