Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description

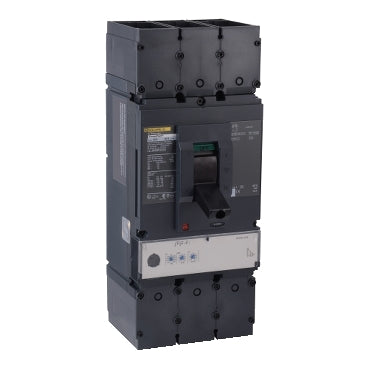

LJL36400CU33X
LJL36400CU33X is a Schneider Electric PowerPact L Frame molded case circuit breaker designed for reliable circuit protection.This circuit breaker features a 400 ampere rating, 600 volt AC voltage rating, and three poles for three-phase power applications. It includes a MicroLogic 3.3S trip unit for precise trip control and is UL 489 listed. The breaker has a unit mount design and a J interrupt rating, ensuring high interrupting capacity and safety.
- Manufacturer: Schneider Electric
- Series/Frame: PowerPact L Frame
- Amperage: 400A
- Voltage: 600 VAC
- Poles: 3
- Trip Unit: MicroLogic 3.3S
- Interrupt Rating: J
- Mounting Type: Unit Mount
- Certification: UL 489 Listed
Specifications
- Part Number: LJL36400CU33X
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : LJL
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : L Frame
- Temp Rating : 28-158 ¡F (-2-70 ¡C)
- Breaker Type : 100% rated
- Protection : Solid State
Product Data
- UPC : 785901512677
- GTIN : 00785901512677
- Country of Origin : United States
- Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
- Weight : 15
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
