LJF36600U33X - Square D PowerPact L-Frame 600A 600V 3-Pole Molded Case Circuit Breaker 65kA@480V

LJF36600U33X

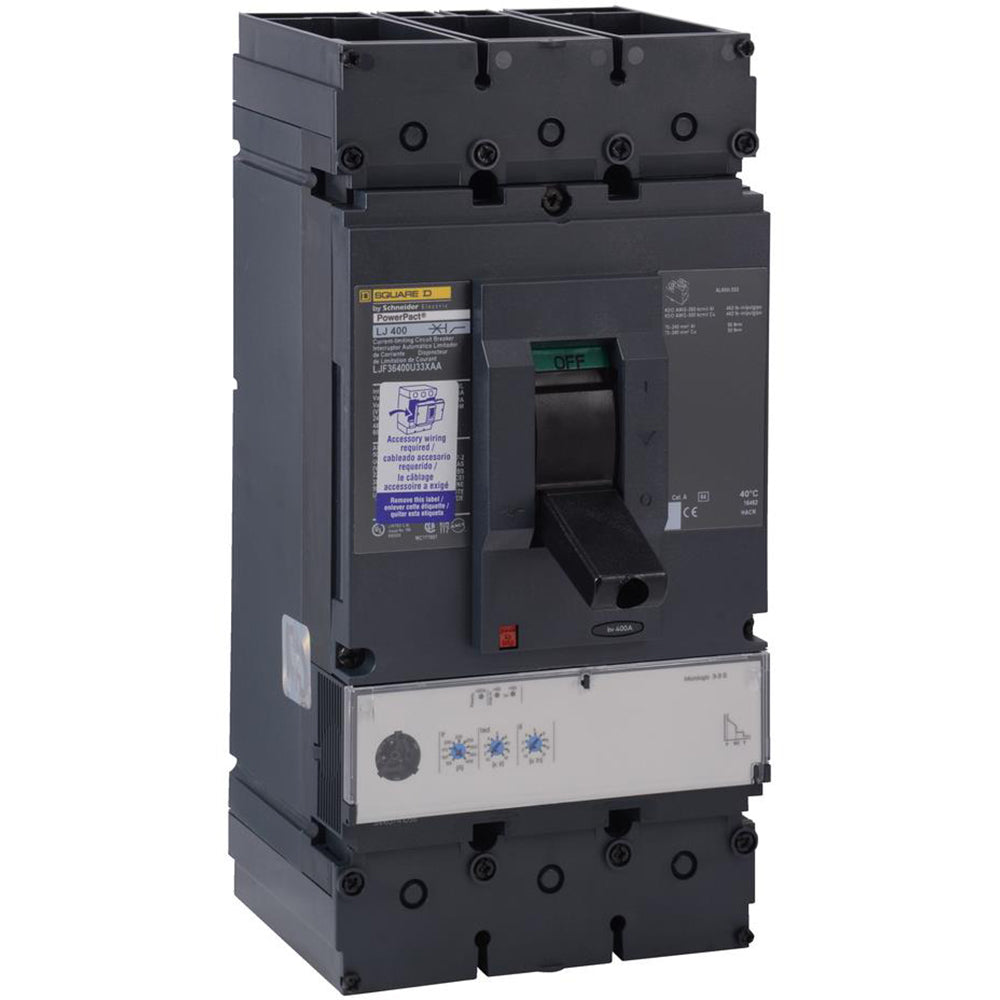

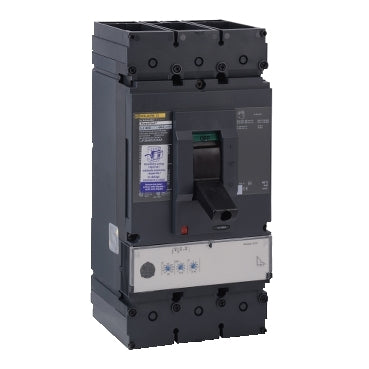

LJF36600U33X is a Square D PowerPact L-Frame molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This 3-pole, 600A, 600V circuit breaker features a high interrupt rating and is built for durability and safety in demanding environments. The LJF36600U33X is a bolt-on mounting circuit breaker with a 65kA interrupt rating at 480V, making it suitable for a wide range of applications. It is part of the PowerPact L-Frame series and is equipped with a MicroLogic 3.3 trip unit for precise protection and monitoring. The breaker is UL listed and designed for use in systems requiring solid-state electronic trip technology and current limiting capabilities.

• Part Number: LJF36600U33X
• Manufacturer: Square D
• Series: PowerPact L-Frame
• Poles: 3
• Amperage: 600A
• Voltage: 600V
• Interrupt Rating: 65kA @ 480V
• Mounting Type: Bolt-On
• Frame Type: L-Frame
• Series: PowerPact
• Protection Type: Solid-State Electronic
• Trip Unit: MicroLogic 3.3
• Certification: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: LJF36600U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LJF
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : L Frame
• Protection : Solid State

Product Data

• UPC : 606482046309
• GTIN : 03606482046306
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 15
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
