LJA36400CU33X - Schneider Electric 400A 3-pole, 600 Vac, I-Line, Micrologic 3.xS LSI

LJA36400CU33X

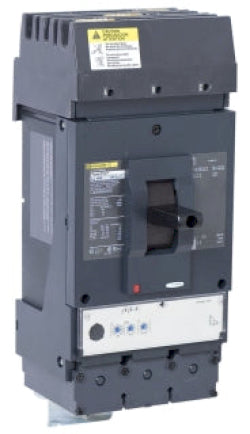

LJA36400CU33X is a PowerPact L-Frame 400A 3-pole molded case circuit breaker for 600 Vac I-Line applications, providing electronic protection with Micrologic 3.xS LSI (long-time, short-time, instantaneous). This LJA catalog variant features I-Line plug-on line terminations and load-side lugs for straightforward panelboard integration. Suffix decoding is included below to document the exact trip unit and factory options for this configured breaker.

• Frame: PowerPact L-Frame
• Poles: 3-pole
• Amperage: 400 A
• Voltage: 600 Vac
• Construction: I-Line line side, load lugs standard
• Trip unit: Micrologic 3.xS LSI (long-time, short-time, instantaneous)

Suffix meanings in this catalog number

• 100% rated continuous current (code C)
• I-Line plug-on line side; mechanical lugs on load side

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you g(more...)

Additional Information

Terminal lug AL600LS52K3

Specifications

• Part Number: LJA36400CU33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LJA
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Breaker Type : 100% rated
• Protection : Solid State

Product Data

• UPC : 785901093466
• GTIN : 00785901093466
• Country of Origin : Mexico
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 18.63
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
