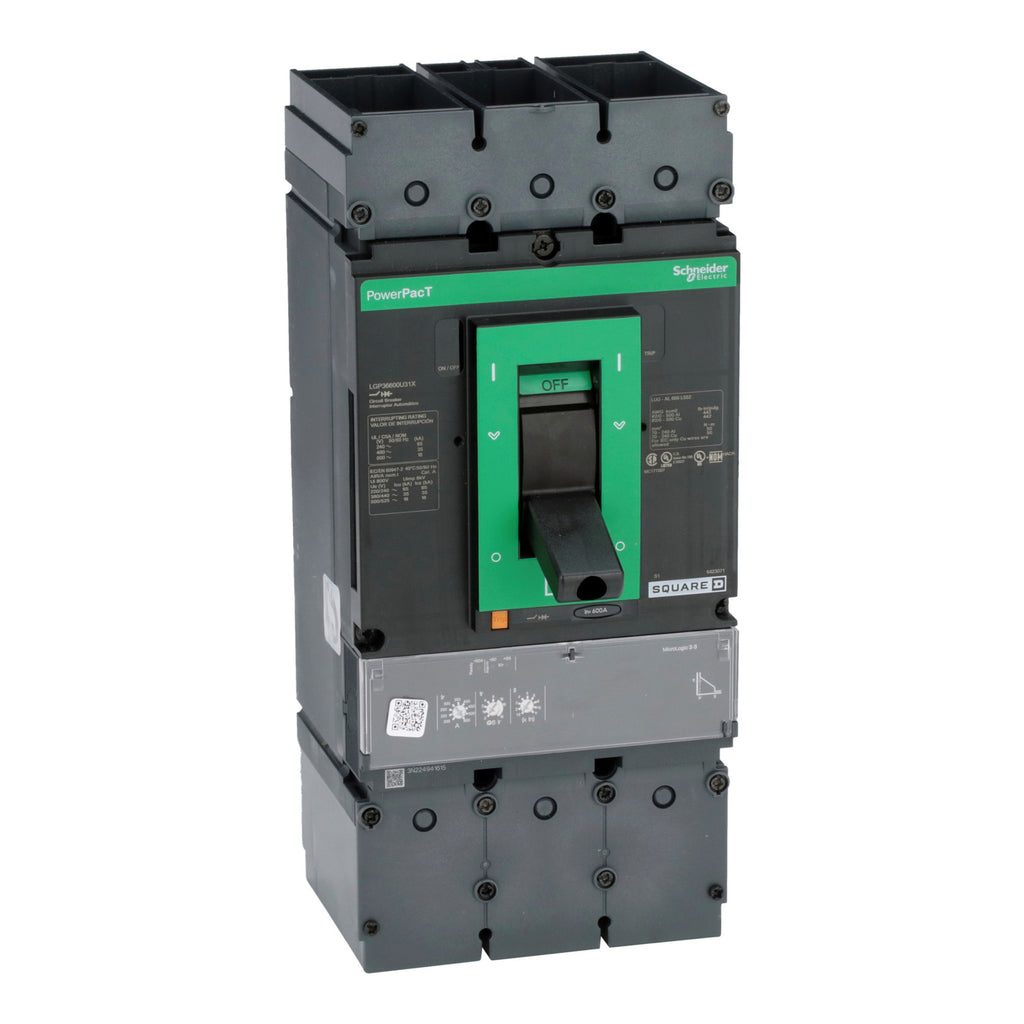

LGP36600U31X - Square D 600A 600V 3 Pole PowerPact L Circuit Breaker

LGP36600U31X

LGP36600U31X is a Square D PowerPact L series circuit breaker rated for 600 amps and 600 volts with 3 poles. It features a molded case design with an electronic trip unit for reliable protection.This circuit breaker offers a 35kA interrupt rating at 480V, suitable for demanding industrial and commercial applications. It includes lug-type mounting and MicroLogic 3.3 trip unit technology for advanced electronic trip functions and 80% rated current capability.

Key Specifications
• Amperage: 600A
• Voltage: 600V AC
• Poles: 3
• Interrupt Rating: 35kA @ 480V
• Series/Frame: PowerPact L
• Trip Unit: Electronic MicroLogic 3.3
• Mounting Type: Lug
• Certifications: NETA tested and certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LGP36600U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGP
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State



Product Data

• UPC : 078590195509
• GTIN : 00785901955092
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 15.92
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
