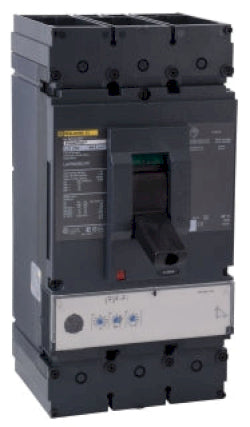

LGP36400U31X - Square D 400A 600V 3-Pole PowerPact L Molded Case Circuit Breaker

LGP36400U31X

LGP36400U31X is a Square D PowerPact L molded case circuit breaker rated for 400 Amps and 600 Volts AC with 3 poles.This circuit breaker features a 3-pole design with a 600VAC voltage rating and a 400A current rating. It has an interrupting rating of 65kA at 240VAC, 35kA at 480VAC, and 18kA at 600VAC. The breaker uses a bolt-on L-frame mounting type and includes long time and instantaneous trip functions with Micrologic 3.3 trip unit technology. It is UL 489 listed and certified to CSA, IEC, CE, NEMA, and other standards.

Key Specifications
• Amperage: 400 Amps
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: Bolt-On L-Frame
• Interrupting Rating: 65kA @ 240V, 35kA @ 480V, 18kA @ 600V
• Series/Frame: PowerPact L
• Trip Unit: Micrologic 3.3
• Terminal Connection: Lugs Load
• Certifications: UL 489, CSA, IEC, CE, NEMA, CCC, NMX
• Phase: 3
• Wire Gauge: AWG 3/0 - 500 kcmil Aluminum/Copper
• Temperature Rating: -25°C to +70°C (-13°F to 158°F)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LGP36400U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGP
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : L Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State



Product Data

• UPC : 785901639824
• GTIN : 00785901639824
• Country of Origin : Mexico
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 15
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
