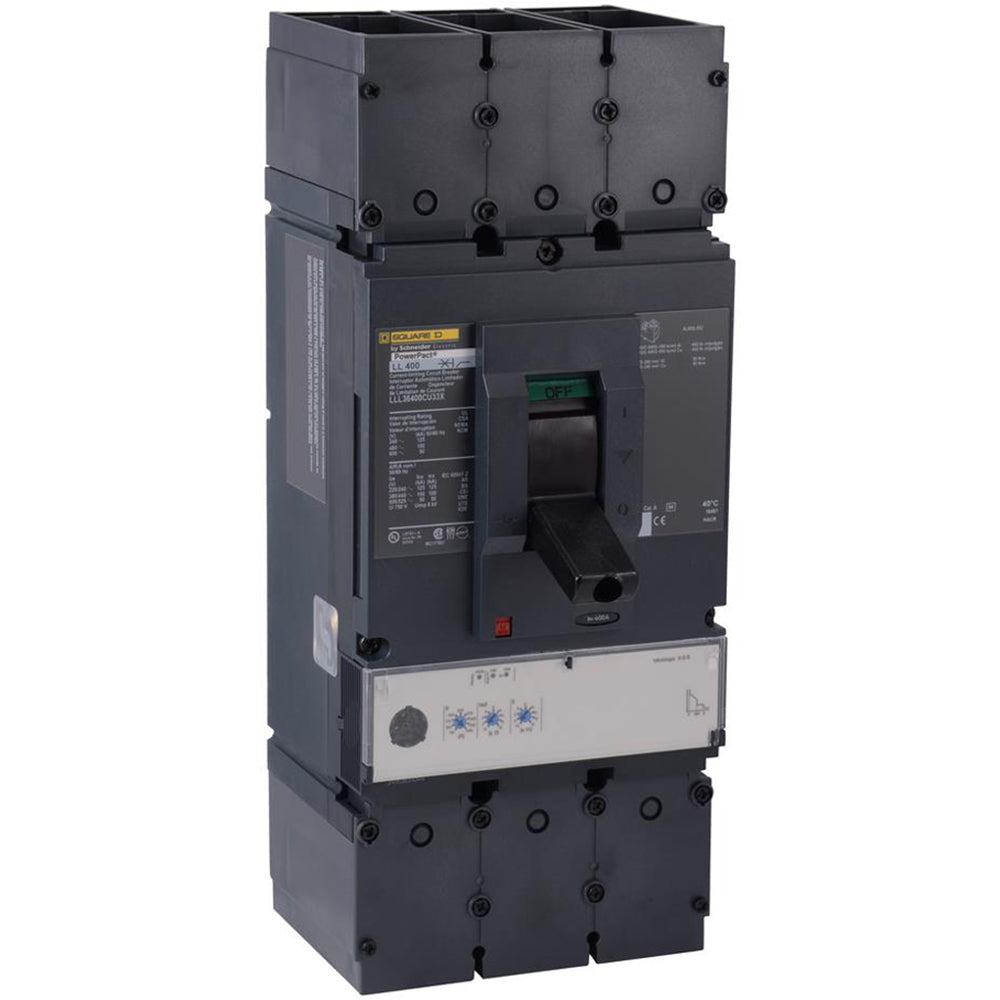

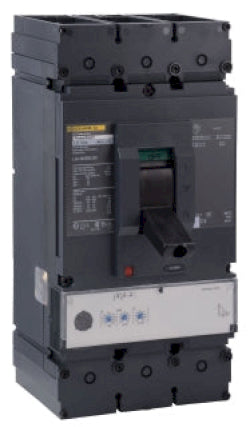

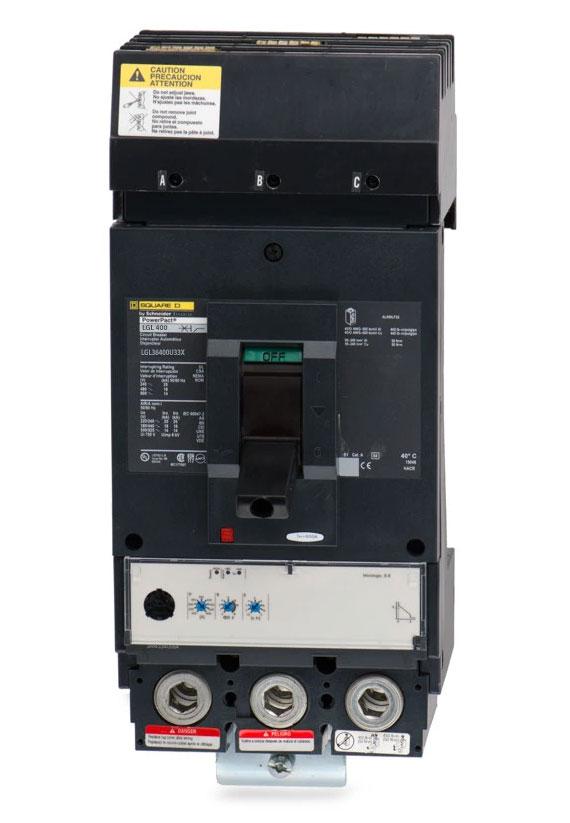

LGL36400U33X - Square D PowerPacT L 400A 3 Pole 600VAC 18kAIC Molded Case Circuit Breaker with MicroLogic 3.3S Trip Unit, UL/CSA Certified

LGL36400U33X

This electronic trip circuit breaker features a 400A rating, 3 poles, and a 600VAC voltage rating, with an 18kA interrupt rating at 600V. It is equipped with a MicroLogic 3.3S trip unit for precise overload and short circuit protection, and is suitable for use as a main panel disconnect in control panels. The unit is UL 489 listed, CSA certified, and meets NEMA, NMX, VDE, BS, CCC, IEC, and CE standards for global compliance.

Key Specifications
• Amperage: 400A
• Voltage: 600VAC (also rated 240/480VAC)
• Poles: 3
• Mounting Type: Molded case, lug connection
• Interrupt Rating: 18kA at 600VAC, 35kA at 480VAC, 65kA at 240VAC
• Series/Frame: PowerPacT L-frame
• Trip Unit: MicroLogic 3.3S, electronic, LSI protection
• Certifications: UL 489, CSA, NEMA, NMX, VDE, BS, CCC, IEC, CE
• Continuous Current: 80%
• Dimensions: 5.51" W x 6.61" D x 13.38" H
• Approvals: UL, CSA
• Environmental: Carbon footprin(more...)


  Specifications

  • Part Number: LGL36400U33X
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : LGL
  • Voltage : 600
  • Amperage : 400
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : Feed-Thru
  • Functions : LSI - Long Time, Short Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : L Frame
  • Temp Rating : 28-158 ¡F (-2-70 ¡C)
  • MCM Size : Min. Wire Size (2) 2/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
  • Protection : Solid State



  Product Data

  • UPC : 785901637622
  • GTIN : 00785901637622
  • Country of Origin : United States
  • Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
  • Weight : 15
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
