Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LGF36400U33X

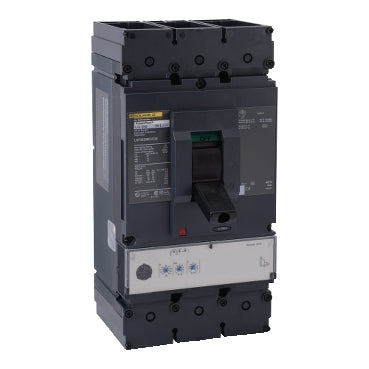

LGF36400U33X is a Square D PowerPacT L-frame molded case circuit breaker designed for reliable protection in commercial and industrial electrical systems. This 3-pole, 400A unit features a 600VAC rating and an interrupting capacity of 18kAIC at 600VAC, making it suitable for demanding applications. The breaker is equipped with a MicroLogic 3.3S electronic trip unit for precise and adjustable protection settings. The LGF36400U33X is built for durability and ease of installation, with a robust L-frame design and standard lug connections. It is engineered to protect electrical circuits from overloads and short circuits, ensuring system safety and minimizing downtime. The MicroLogic 3.3S trip unit provides advanced protection features and flexibility for various load requirements.
- Manufacturer: Square D
- Series/Frame: PowerPacT L-Frame
- Amperage: 400A
- Voltage: 600VAC
- Number of Poles: 3
- Interrupt Rating: 18kAIC at 600VAC
- Mounting Type: Unit Mount
- Trip Unit: MicroLogic 3.3S
- Frequency Rating: 50/60 Hz
- Breaker Type: Molded Case Circuit Breaker
- Application: Commercial and Industrial
- Protection: Overload and Short Circuit
Additional Information
This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.
Specifications
- Part Number: LGF36400U33X
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : LGF
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Frame Size : L Frame
- Temp Rating : 28-158 °F (-2-70 °C)
- Protection : Solid State
Product Data
- UPC : 078590195471
- GTIN : 00785901954712
- Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
- Weight : 15
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
