LGF36400CU31X - Square D PowerPact L 400A 3 Pole 600VAC Circuit Breaker

LGF36400CU31X

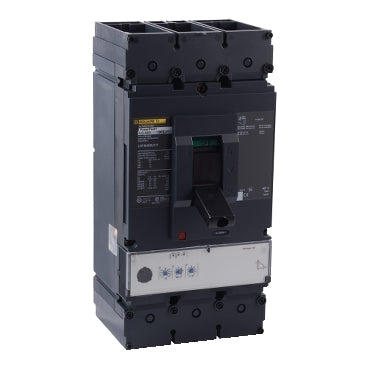

LGF36400CU31X is a PowerPact L molded case circuit breaker designed for industrial and commercial power distribution applications requiring reliable overcurrent protection.

This 3 pole circuit breaker operates at 600 volts AC and is rated for 400 amperes. It features a MicroLogic 3.3 trip unit with 100% rating and busbar connection. The breaker delivers a breaking capacity of 65 kA at 240V AC and 18 kA at 600VAC, making it suitable for demanding electrical systems.

• Amperage Rating: 400A
• Voltage Rating: 600VAC
• Poles: 3 Pole
• Series: PowerPact L
• Trip Unit: MicroLogic 3.3
• Breaking Capacity: 65 kA @ 240V AC, 18 kA @ 600VAC
• Connection Type: Busbar
• Mounting: Plug-in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LGF36400CU31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGF
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 078590195470
• GTIN : 00785901954705
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 15
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
