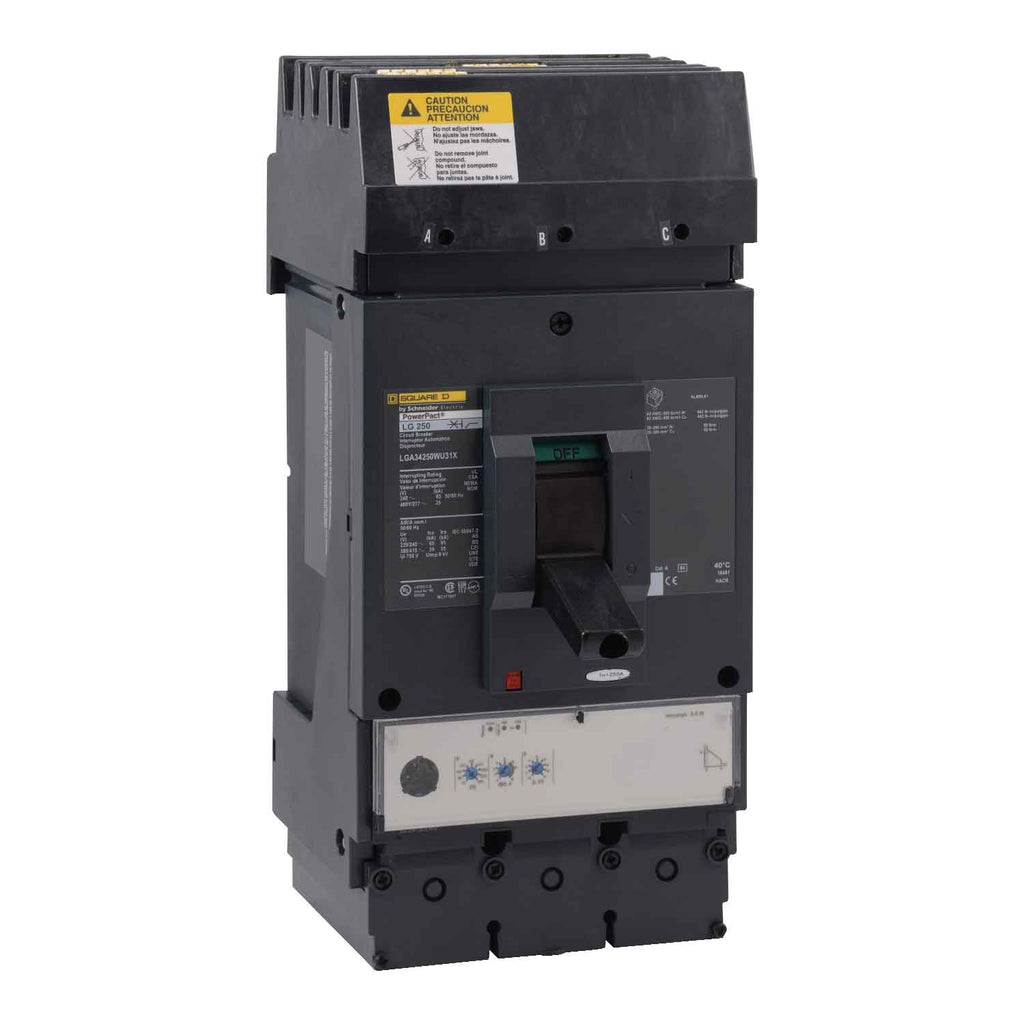

LGA36250U31X - Square D PowerPact L 250A 3-Pole 600V I-Line Circuit Breaker with Micrologic 3.3 Trip Unit

LGA36250U31X

LGA36250U31X is a Square D PowerPact L molded case circuit breaker designed for reliable protection of electrical systems.This 3-pole circuit breaker features a 250 ampere rating, 600 VAC maximum voltage, and an 18 kA interrupt rating at 600 volts. It uses the I-Line mounting style and includes the advanced Micrologic 3.3 electronic trip unit for precise overload and short circuit protection. The breaker is rated at 80% and complies with UL 489 and other international certifications.

• Amperage: 250A
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: I-Line
• Interrupt Rating: 18 kA at 600V, 35 kA at 480V, 65 kA at 240V
• Frame Type: L Frame
• Trip Unit: Micrologic 3.3 electronic
• Rated 80%
• Certifications: UL 489, CSA, IEC, CE, CCC, NMX
• Series: PowerPact L

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LGA36250U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Protection : Solid State

Product Data

• UPC : 785901564478
• GTIN : 00785901564478
• Country of Origin : United States

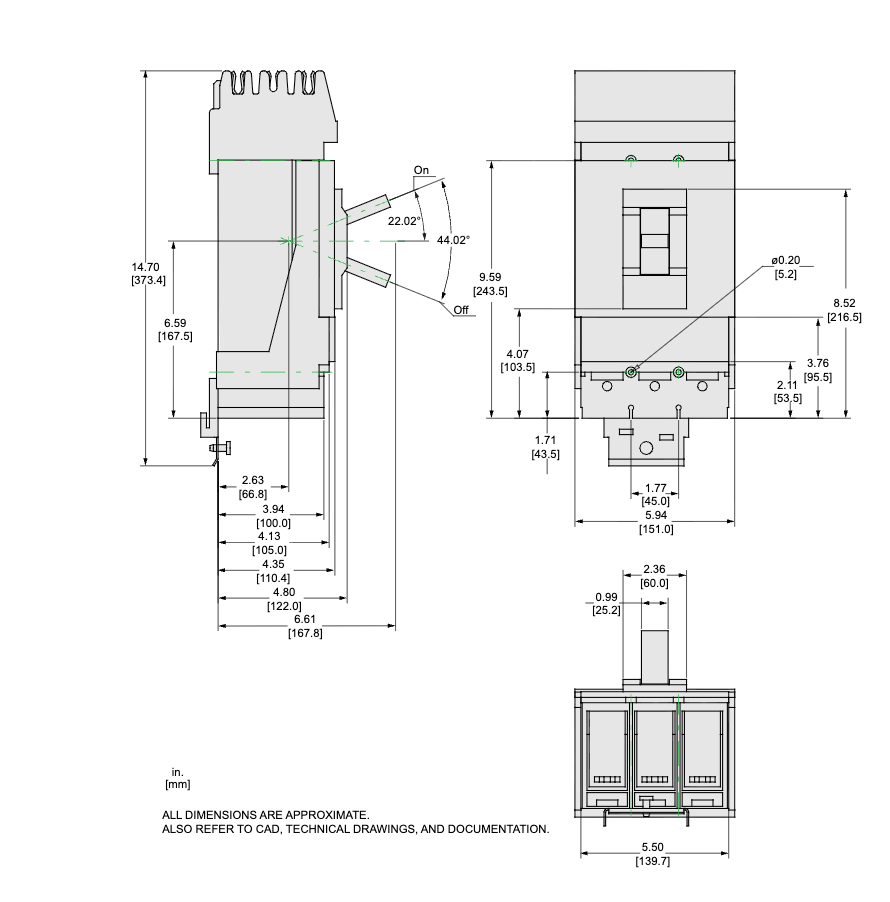

• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 2...600 kcmil copper
  AWG 2...500 kcmil aluminium
