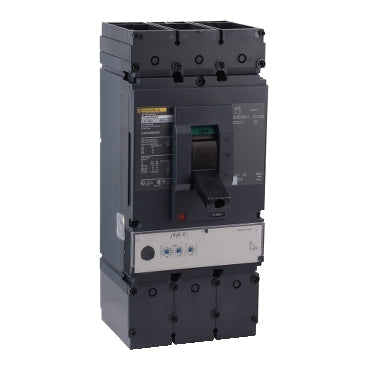

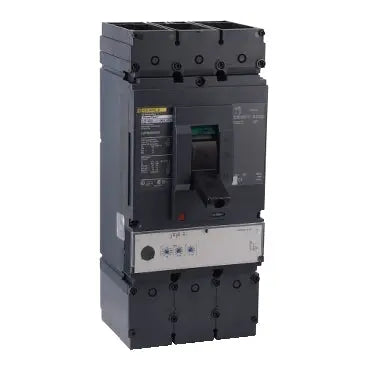

LDP36600U31X - Square D 600A 600V 3 Pole Molded Case Circuit Breaker Bolt-On Frame LDP

LDP36600U31X

LDP36600U31X is a Square D 3 pole molded case circuit breaker rated for 600 amps and 600 volts with bolt-on mounting.This circuit breaker features an interrupting rating of 18kA at 480V and 14kA at 600V, designed for industrial and commercial power distribution applications. It belongs to the LDP series/frame and includes solid state protection with long-time and instantaneous trip functions. The breaker is UL and CSA certified, with line and load side lug terminal connections.

Key Specifications
• Amperage: 600A
• Voltage: 600V AC
• Poles: 3
• Interrupt Rating: 18kA @ 480V, 14kA @ 600V
• Frame Type: LDP
• Mounting Type: Bolt-On
• Trip Unit: Solid State with LI - Long-Time and Instantaneous
• Terminal Connection: Line and Load Side Lug
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LDP36600U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LDP
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Solid State

Product Data

• UPC : 060648611957
• GTIN : 03606486119570
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
