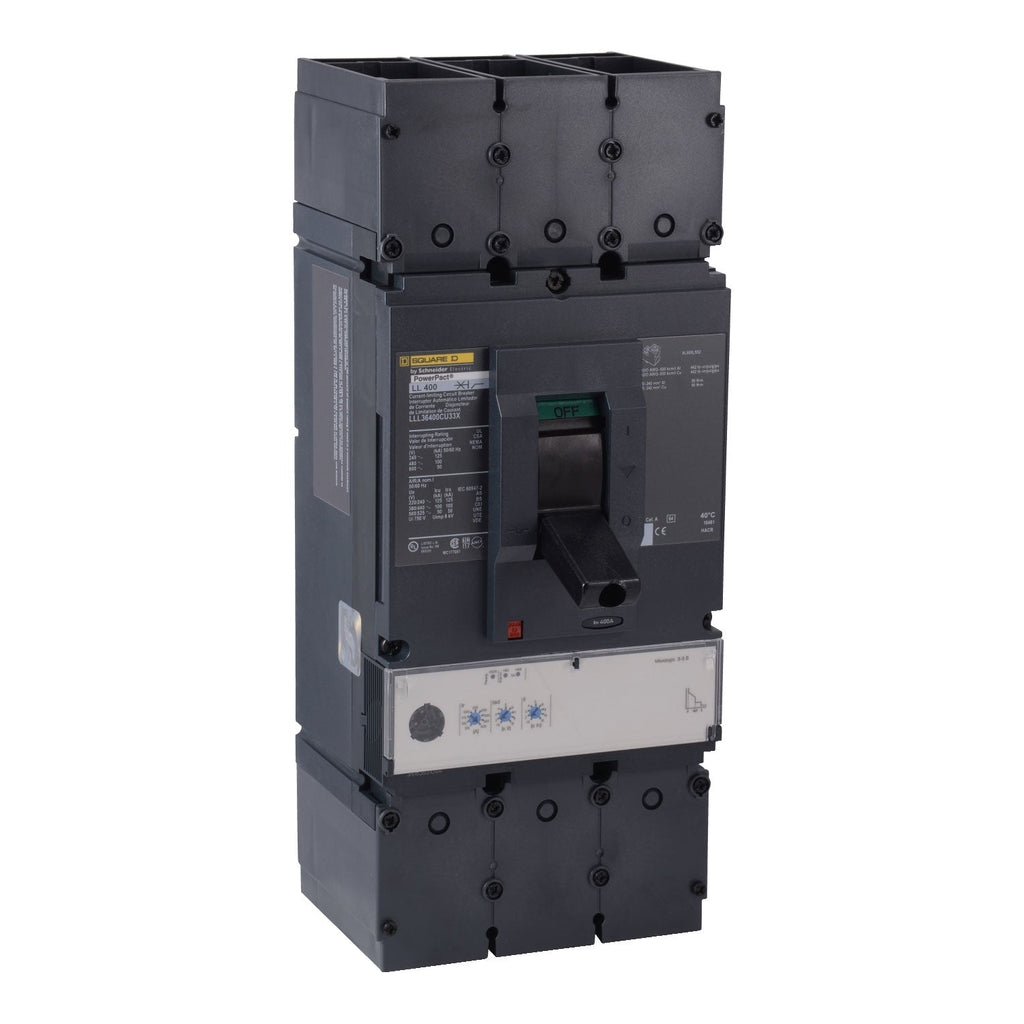

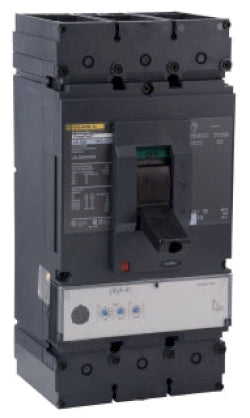

LDL36600U33X - Square D 600A 600V 3-Pole Molded Case Circuit Breaker L Frame Electronic Trip

LDL36600U33X

LDL36600U33X is a Square D 600 Amp, 600 Volt, 3-pole molded case circuit breaker with electronic trip unit technology.This breaker features a Micrologic 3.3 S electronic trip unit with LSI (Long-time, Short-time, Instantaneous) protection and current limiting type design. It is an L Frame breaker with a unit mount style, UL and CSA approved, suitable for industrial and commercial power distribution applications. Interrupt ratings vary by voltage, including 18kA at 480VAC.

Key Specifications
• Amperage: 600 Amp
• Voltage Rating: 600 VAC max, 250 VDC max
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 18kA @ 480VAC, 14kA @ 600VAC, 25kA @ 240VAC
• Series/Frame: L Frame
• Trip Unit: Electronic, Micrologic 3.3 S with LSI
• Type: LDL Molded Case Circuit Breaker
• Certifications: UL 489, CSA Approved
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LDL36600U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LDL
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Protection : Solid State



Product Data

• UPC : 078590176586
• GTIN : 00785901765868
• Country of Origin : Mexico
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17.09 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
