Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LAL363001027

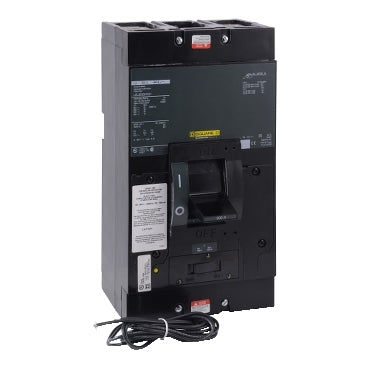

LAL363001027 is a 3-pole, 300A, 600V thermal magnetic circuit breaker with shunt trip, designed for reliable protection in industrial and commercial power distribution systems.This Square D molded case circuit breaker features an L frame and is equipped with a shunt trip for remote tripping capability. It is suitable for applications requiring high interrupting capacity and dependable thermal magnetic protection. The breaker is designed for fixed mounting and is compatible with standard panel configurations.
- 300A rated current
- 600V maximum AC voltage
- 3 poles
- Thermal magnetic trip unit
- Shunt trip included
- 30kA interrupt rating @ 480V
- 42kA interrupt rating @ 240V
- L frame
- Fixed mounting type
Additional Information
complete with 24Vdc shunt trip
Specifications
- Part Number: LAL363001027
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LAL Series
- Type : LAL
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901727071
- GTIN : 00785901727071
- Country of Origin : Mexico
- Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
- Weight : 16.766
