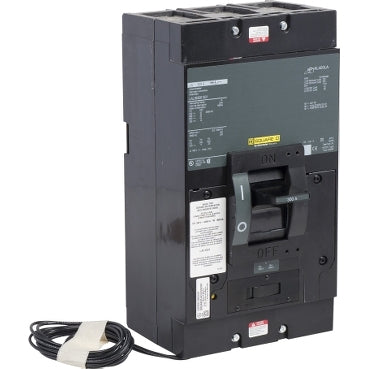

LAL363001021 - Square D 300A 600V 3-Pole Molded Case Circuit Breaker Thermal Magnetic Adjustable Trip

LAL363001021

LAL363001021 is a Square D 300 Amp, 600 Volt, 3-pole molded case circuit breaker with thermal magnetic adjustable trip for reliable circuit protection.This circuit breaker features a robust L frame design with line and load lug terminals, suitable for unit mount applications. It offers a high interrupting rating of up to 42 kA at 240 VAC and 22 kA at 600 VAC, ensuring safe interruption of fault currents. The breaker supports both AC and DC voltages with ratings of 600 VAC and 250 VDC respectively. It is UL and CSA certified, designed for 50/60 Hz frequency, and includes a toggle handle actuator.

Key Specifications
• Amperage: 300 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Frame: L
• Interrupting Rating: 42 kA at 240 VAC, 22 kA at 600 VAC, 10 kA at 250 VDC
• Trip Unit: Thermal Magnetic Adjustable
• Mounting Type: Unit Mount
• Terminal Type: Line and Load Lugs
• Frequency: 50/60 Hz
• Certifications: UL, CSA
• Dimensions: 6 in W x 5.84 in D x 11 in H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

complete with 120/240Vac shunt trip




Specifications

• Part Number: LAL363001021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 300
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : L Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 785901339472
• GTIN : 00785901339472
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 16.8
• Standards : CSA, UL Listed, IEC
• Certification : CSA, UL Listed, IEC
