LAL36300 - Square D 300A 600V 3-Pole Molded Case Circuit Breaker LAL Frame Bolt-On Mount

LAL36300

LAL36300 is a Square D molded case circuit breaker designed for reliable power distribution protection.This 3-pole circuit breaker features a 300 ampere rating and 600 volt AC voltage capacity with a bolt-on mounting type. It belongs to the LAL frame series and uses a thermal magnetic trip unit for overload and short circuit protection. The breaker has an interrupt rating of 22kA at 600VAC and 10kA at 250VDC. It is UL Listed, CE, and CSA certified, ensuring compliance with industry safety standards.

Key Specifications
• Manufacturer: Square D
• Part Number: LAL36300
• Frame Type: LAL
• Amperage: 300A
• Voltage: 600VAC, 250VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 22kA @ 600VAC, 10kA @ 250VDC
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CE, CSA Certified
• Terminal Type: Line/Load Lug
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LAL36300
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 300
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 400A/LA
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 785901426783
• GTIN : 00785901426783
• Country of Origin : Mexico

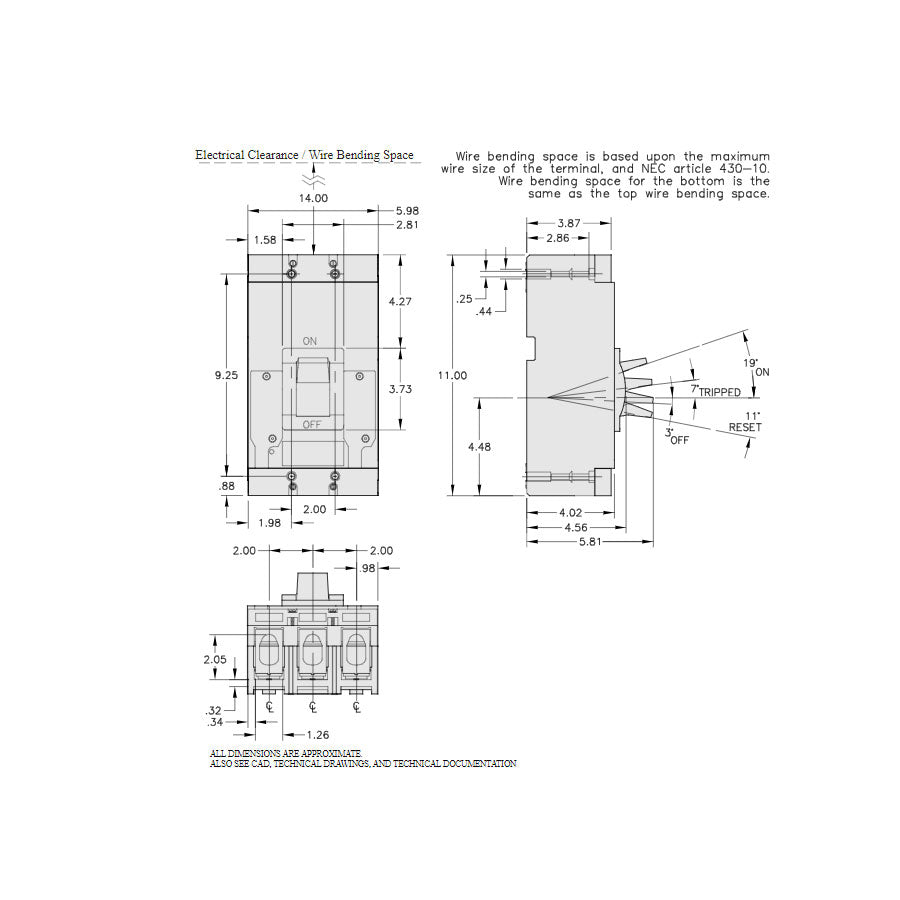

• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 16.189
• Panel Type : Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
• Standards : CSA, IEC, UL Listed
• Certification : CSA, IEC, UL Listed
