Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
JXD63M350

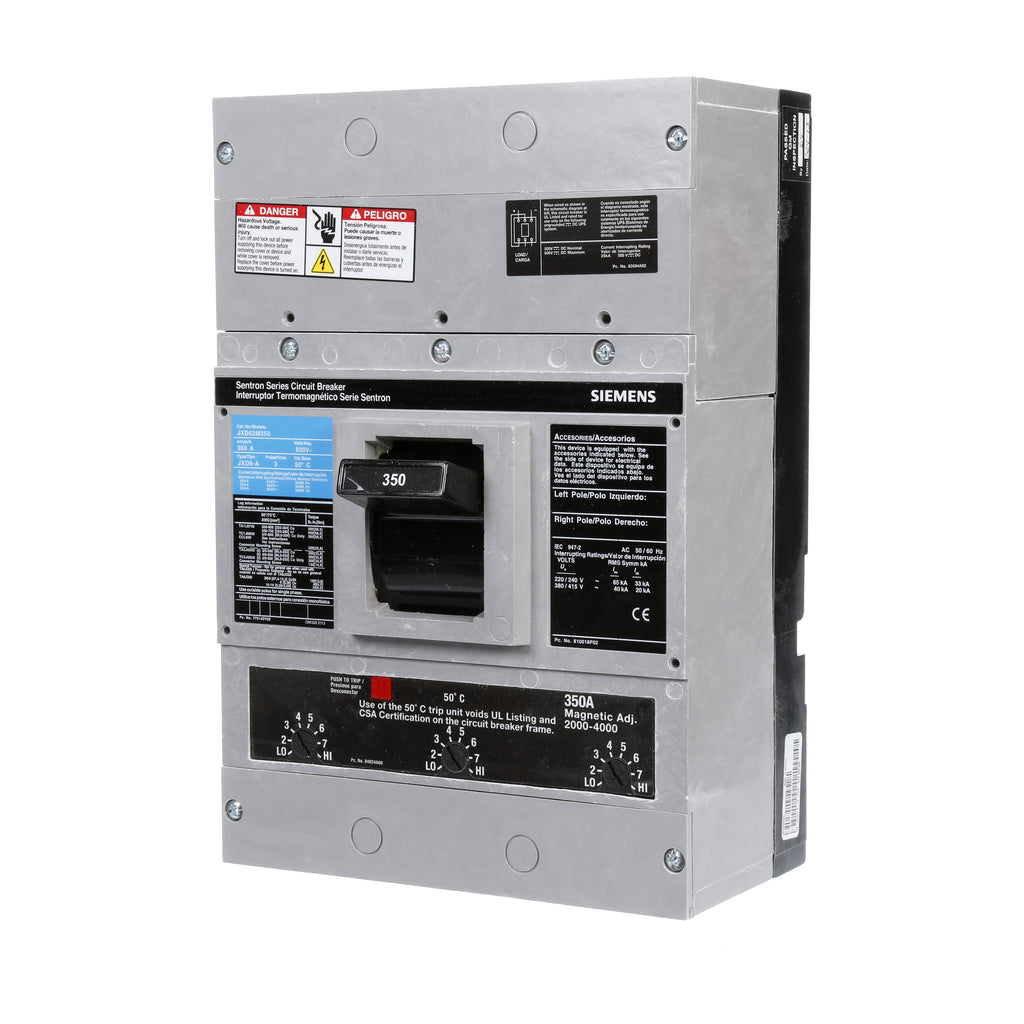

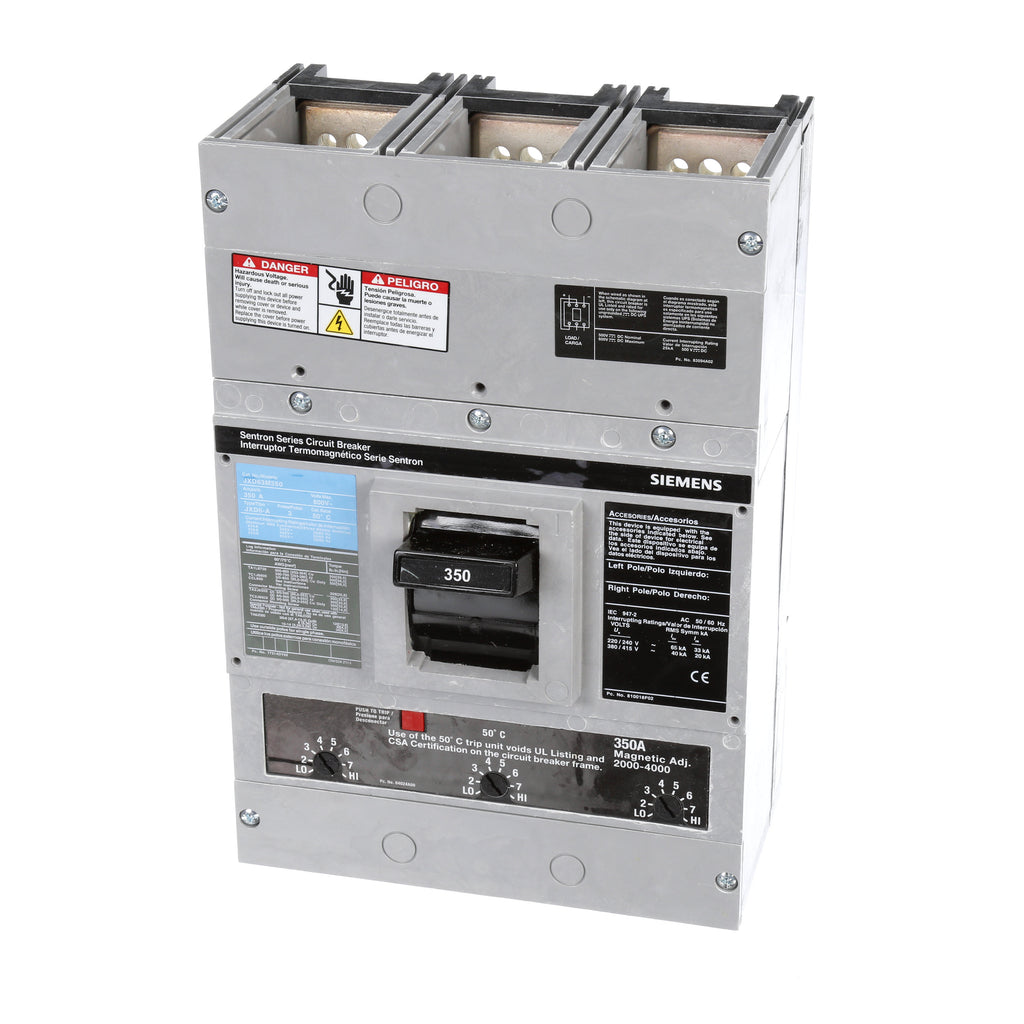

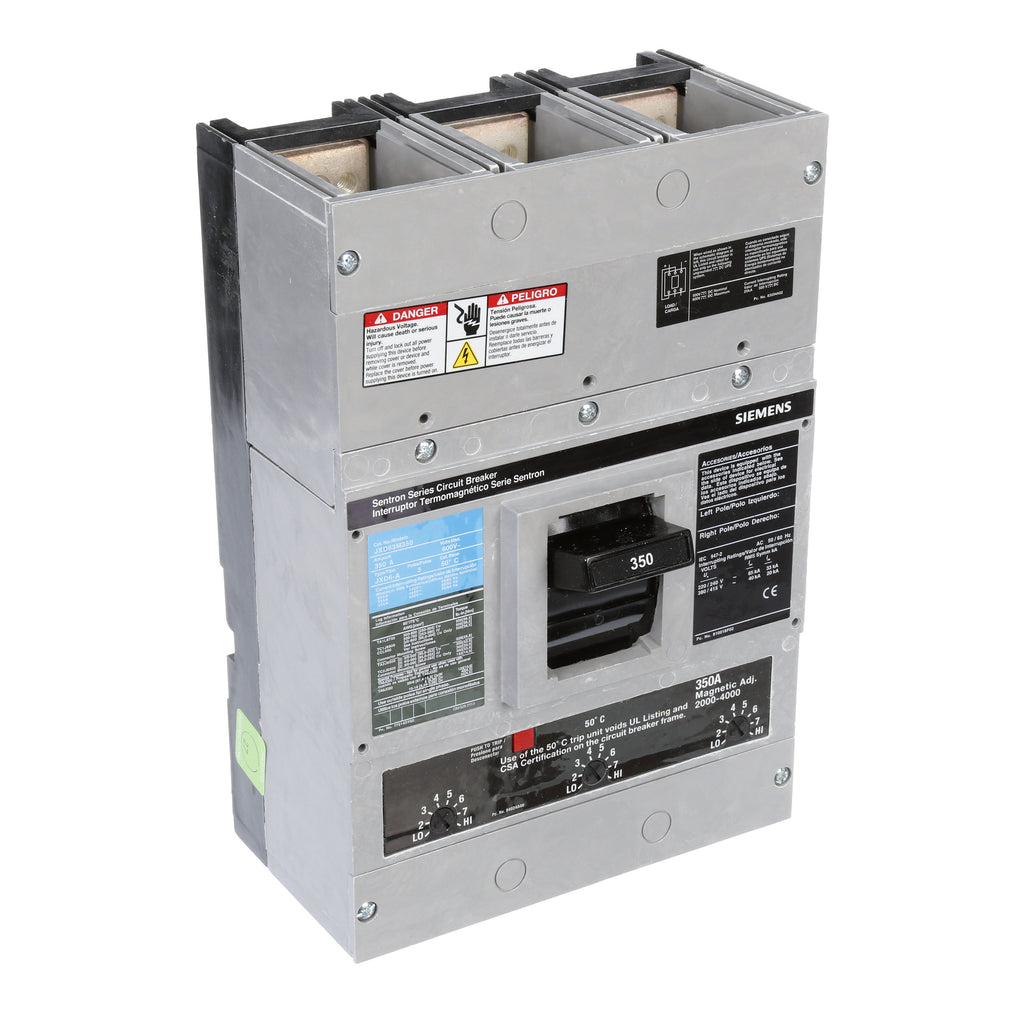

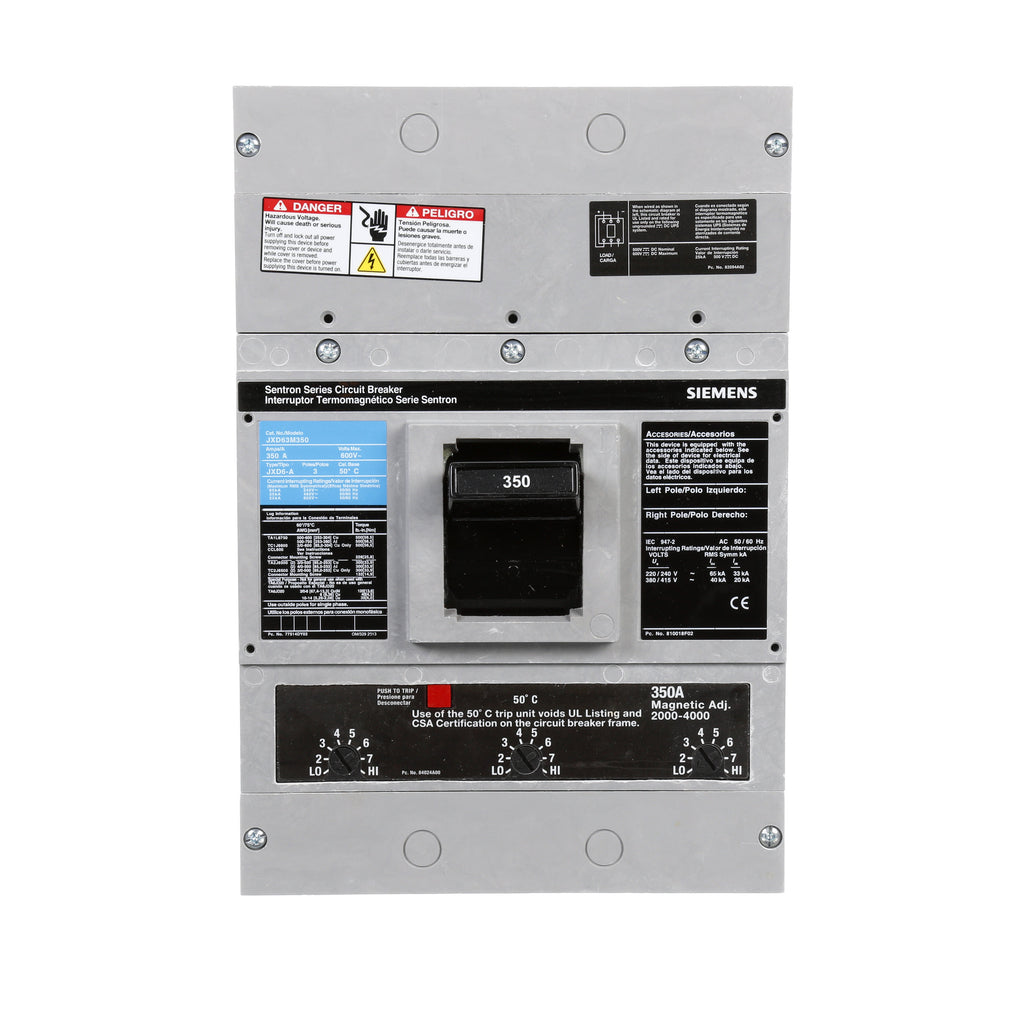

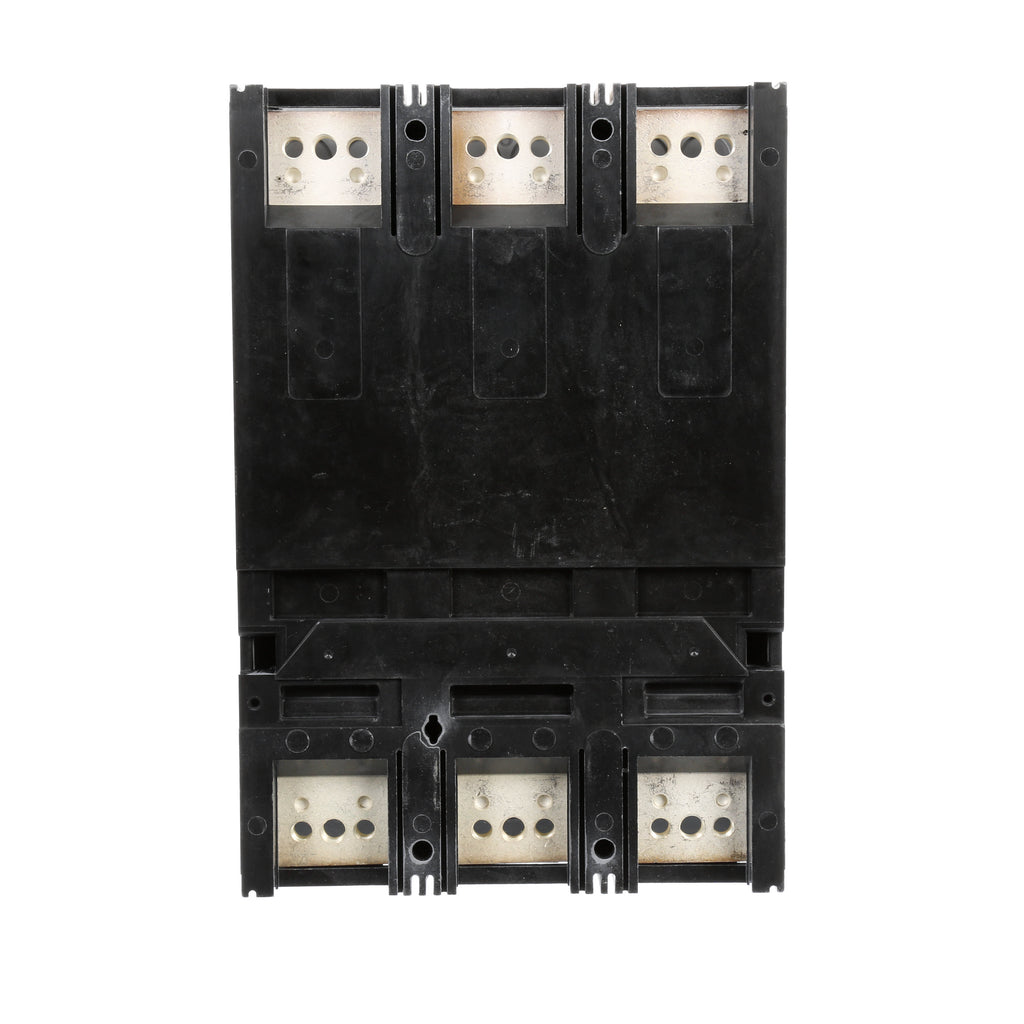

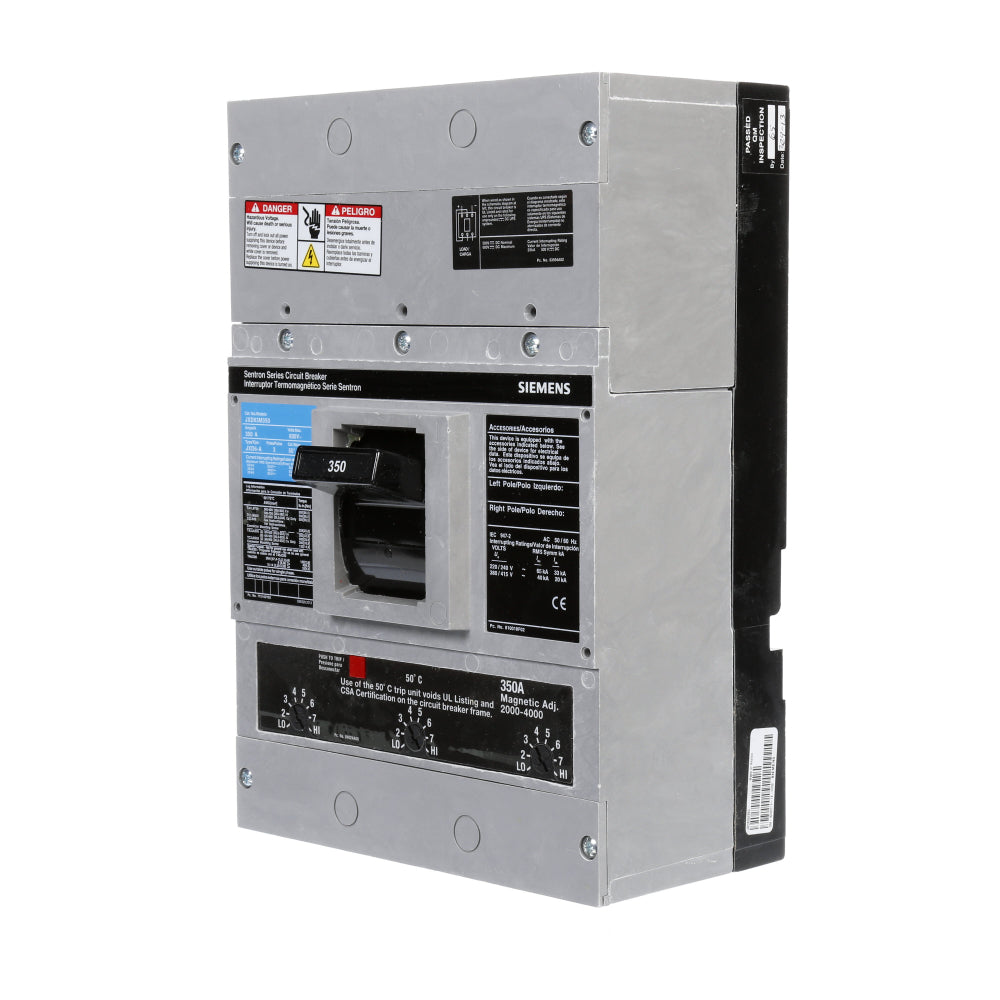

JXD63M350 is a Siemens 3 pole, 350 amp, 600 volt bolt-on circuit breaker designed for reliable circuit protection.This molded case circuit breaker features a JD frame with a thermal magnetic trip unit. It has a 35kA interrupt rating at 480V and 25kA at 600V, suitable for industrial and commercial applications. The breaker is calibrated for 50¡C operation and includes a non-interchangeable trip unit.
- Key Specifications
- Amperage: 350A
- Voltage Rating: 600V AC, 250V DC
- Poles: 3
- Frame/Series: JD Frame
- Mounting Type: Bolt-On
- Interrupt Rating: 35kA at 480V, 25kA at 600V
- Trip Unit: Thermal Magnetic, Non-Interchangeable
- Calibrated for 50¡C operation
- Part Number: JXD63M350
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : JXD
- Voltage : 600
- Amperage : 350
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : JD Frame
- Temp Rating : -13¡F-158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
- UPC : 783643238602
- GTIN : 00783643238602
- Country of Origin : Mexico
- Dimensions : 8.661 x 12.992 x 6.726
- Weight : 18.301
- Standards : RoHS
- Certification : UL, IEC
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
