Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
JXD63B200

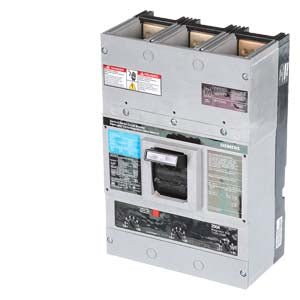

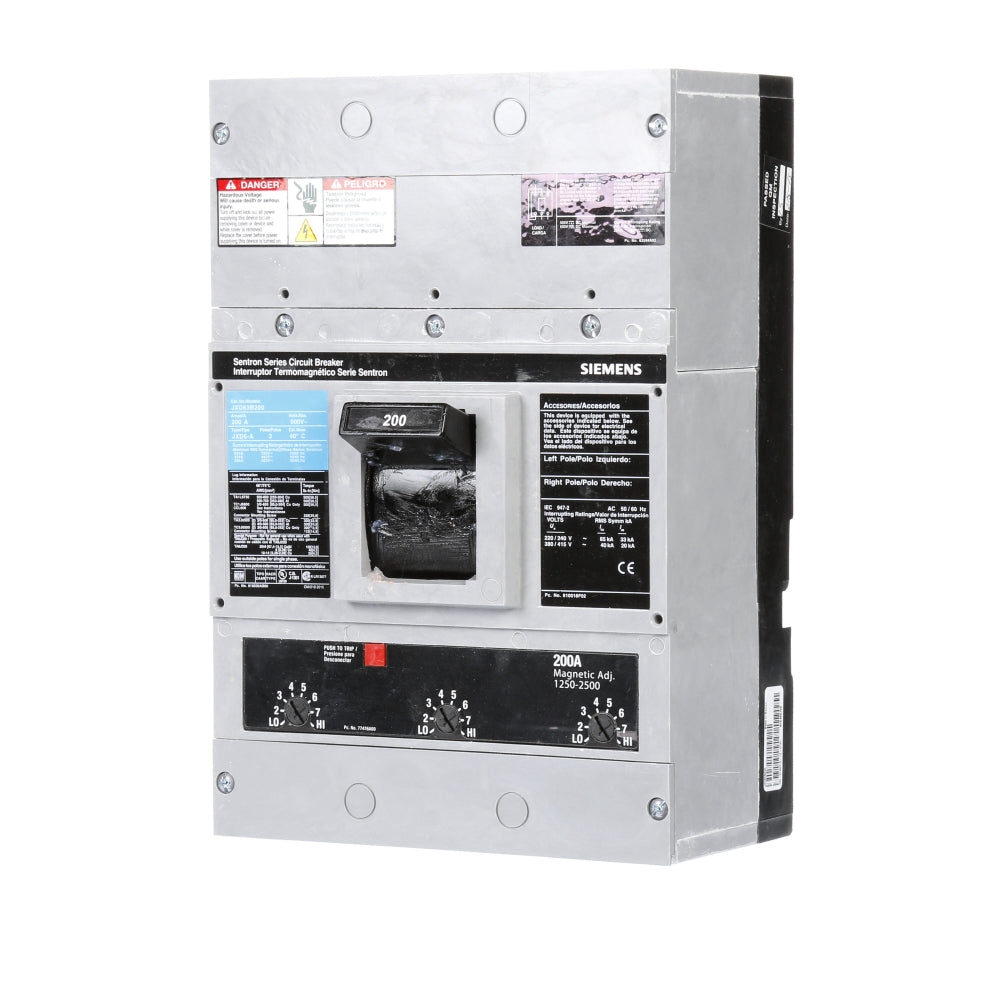

JXD63B200 - Siemens Sentron molded case circuit breaker with JD frame, 200A rating, 3 poles, and standard breaking capacity.This Type JXD6 low voltage circuit breaker features thermal magnetic trip unit with 1250-2500A trip range, bolt-on mounting, and load lug connections for 3/0 AWG to 500 kcmil wire. Rated for 600VAC/250VDC at 50/60Hz and 40 deg C, it provides reliable overcurrent protection in industrial applications.
- Part Number: JXD63B200
- Manufacturer: Siemens
- Amperage Rating: 200A
- Voltage Rating: 600VAC/250VDC
- Poles: 3
- Frame: JD
- Trip Type: Thermal Magnetic
- Trip Range: 1250-2500A
- Interrupt Rating: 25kA@600V, 35kA@480V, 65kA@240V
- Mounting Type: Bolt-On
- Frequency: 50/60Hz
- Connection: Load Lug
- Wire Size: 3/0 AWG - 500 kcmil
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: JXD63B200
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : JXD
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : JD Frame
- Temp Rating : -13¡F-158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643213043
- GTIN : 00783643213043
- Country of Origin : Mexico
- Dimensions : 8.661 x 12.992 x 6.693
- Weight : 18.301
- Standards : RoHS
- Certification : UL, IEC
