Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
JXD63B250H

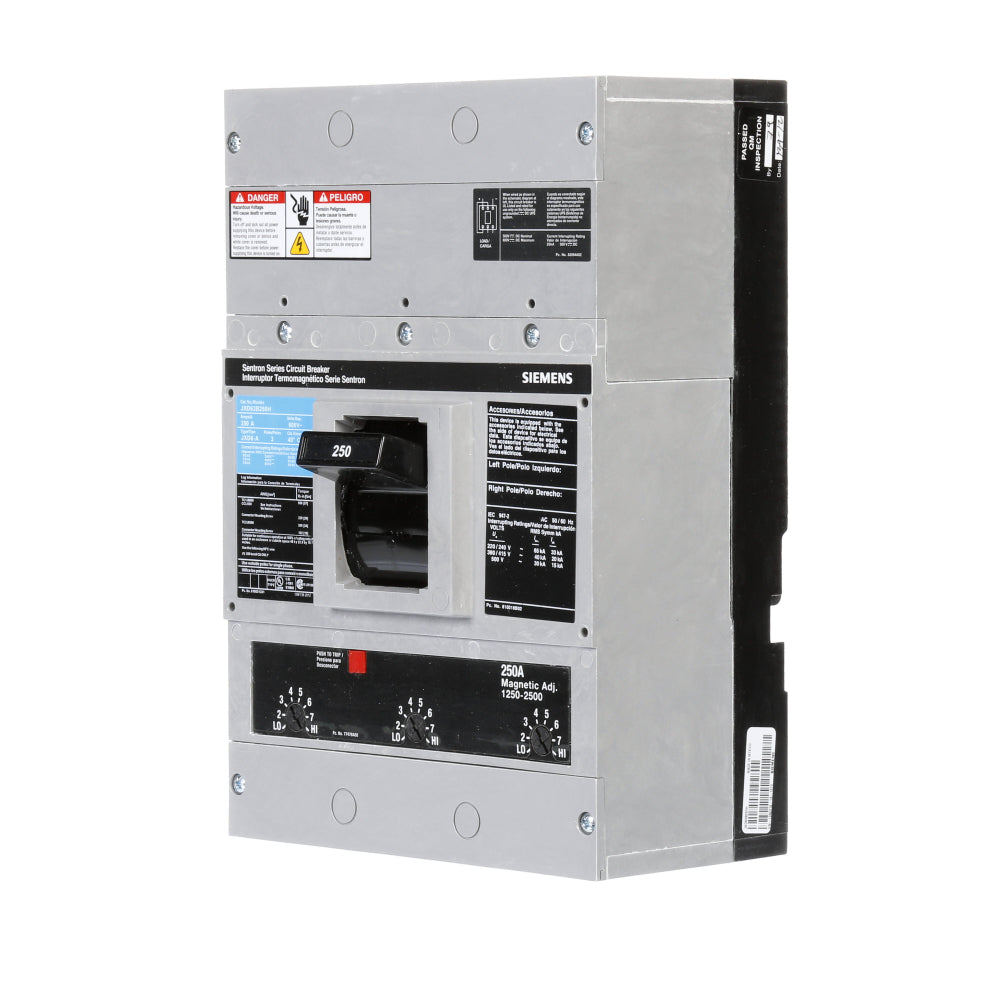

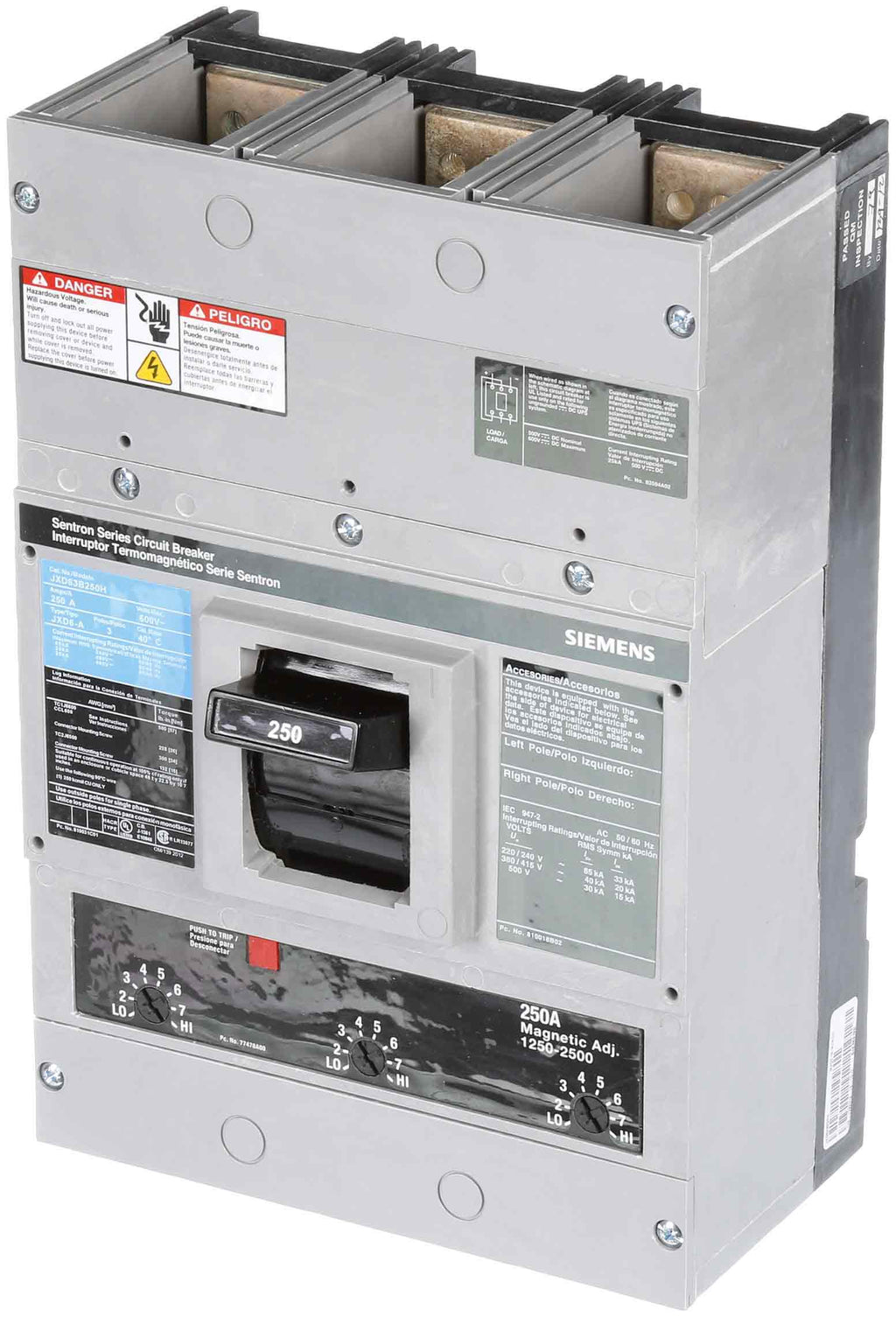

JXD63B250H is a Siemens 3-pole molded case circuit breaker with a 250 ampere rating and 600 volt AC voltage capacity, designed for reliable circuit protection.This Siemens Sentron series breaker features a JD frame with thermal magnetic trip unit, 25 kA interrupt rating at 600 VAC, and is 100% rated at 40 degrees Celsius. It is suitable for low voltage applications requiring robust and standard breaking capacity.
- Manufacturer: Siemens
- Series: Sentron JD Frame
- Poles: 3
- Amperage: 250 A
- Voltage Rating: 600 VAC / 250 VDC
- Interrupt Rating: 25 kA at 600 VAC, 35 kA at 480 VAC
- Trip Unit: Thermal Magnetic
- Mounting Type: Molded Case
- Non-Interchangeable
- 100% Rated at 40¡C
- Certifications: UL Listed
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: JXD63B250H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : JXD
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13¡F-158¡F (-25¡C - 70¡C)
Product Data
- UPC : 783643229334
- GTIN : 00783643229334
- Country of Origin : Mexico
- Dimensions : 8.661 x 12.992 x 6.700
- Weight : 17
- Standards : RoHS
- Certification : UL, IEC
