Description
A01JLD64

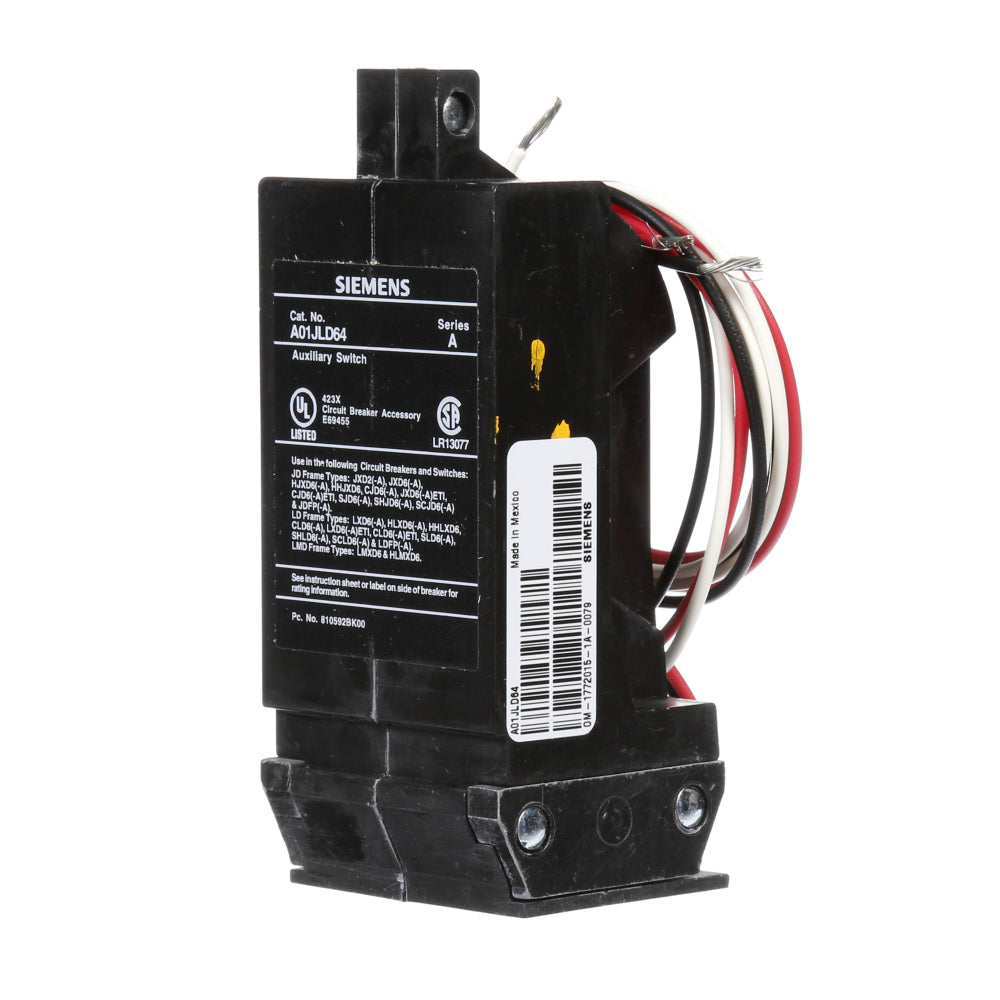

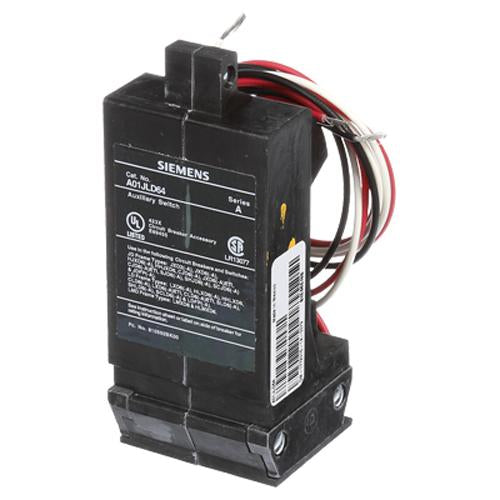

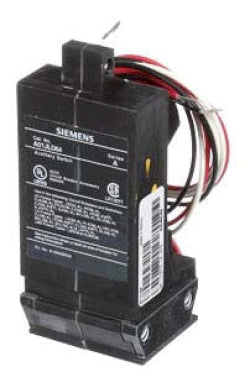

A01JLD64 is a Siemens auxiliary switch designed for use with JD, LD, LMD, SJD, and SLD frame molded case circuit breakers. It features a 1NC-1NO contact configuration and supports both left and right mounting.This auxiliary switch is rated for 480 V AC and 250 V DC operation, suitable for circuit breakers with amperages up to 800 A depending on frame type. It operates at 50/60 Hz frequency and is UL and CSA certified. The compact dimensions are 4.7 in L x 10.8 in W x 23.3 in H, and it is manufactured in Mexico.
- Manufacturer: Siemens
- Part Number: A01JLD64
- Type: Auxiliary Switch Combination
- Contact Configuration: 1NC-1NO, 1NO-1NC
- Voltage Rating: 480 V AC / 250 V DC
- Mounting Type: Left/Right Mount
- Compatible Frames: JD, LD, LMD, SJD, SLD
- Frequency: 50/60 Hz
- Operating Temperature: 40°C
- Dimensions: 4.7 in L x 10.8 in W x 23.3 in H
- Certifications: UL, CSA
- Country of Origin: Mexico
Specifications
- Part Number: A01JLD64
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Auxiliary
- Family : Sentron Series
- Type : Sentron
- Voltage : 480VAC, 250VDC
- Configuration : 1NO, 1NC
- Compatible Frames : JD, LD, LMD, HJD, HLD, HLMD, HHJD, HHLD, JXD, LXD, LMXD, HJXD, HLXD, HLMXD, HHJXD, HHLXD, CJD, CLD, SLD, SJD, SHLD, SHJD, SCLD, SCJD, JM6B, JMKB, LM6B, LMKB
Product Data
- UPC : 783643220607
- GTIN : 00783643220607
- Country of Origin : Mexico
- Weight : 0.549
