Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
JXD63B200L

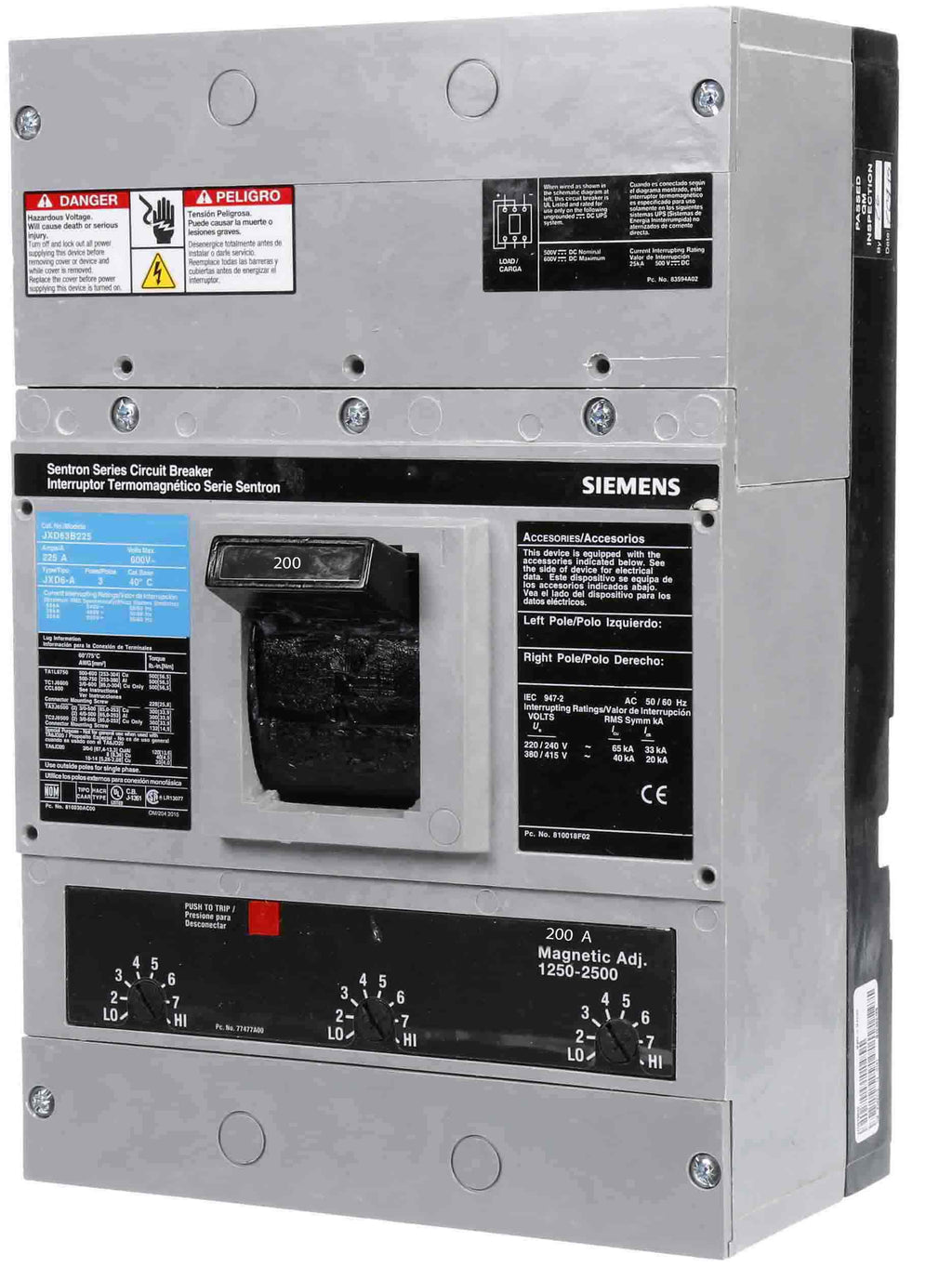

JXD63B200L is a Siemens Sentron JD frame molded case circuit breaker rated for 200 amps and 600 volts with 3 poles.This Siemens circuit breaker features a non-interchangeable trip unit with a bolt-on mounting type. It has a standard interrupting capacity of 25kA at 600V AC and 35kA at 480V AC, suitable for general power distribution applications. The breaker is designed for use in industrial and commercial electrical systems, providing reliable overcurrent protection.
- Manufacturer: Siemens
- Series/Frame: Sentron JD
- Amperage: 200A
- Voltage Rating: 600V AC
- Poles: 3
- Interrupt Rating: 25kA at 600V, 35kA at 480V
- Mounting Type: Bolt-on
- Trip Unit: Non-interchangeable
Specifications
- Part Number: JXD63B200L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : JXD
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : JD Frame
- Temp Rating : -13¡F-158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643009493
- GTIN : 00783643009493
- Country of Origin : Mexico
- Dimensions : 8.661 x 12.992 x 6.695
- Weight : 19.533
- Standards : RoHS
- Certification : UL, IEC
