Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
JXD63B300L

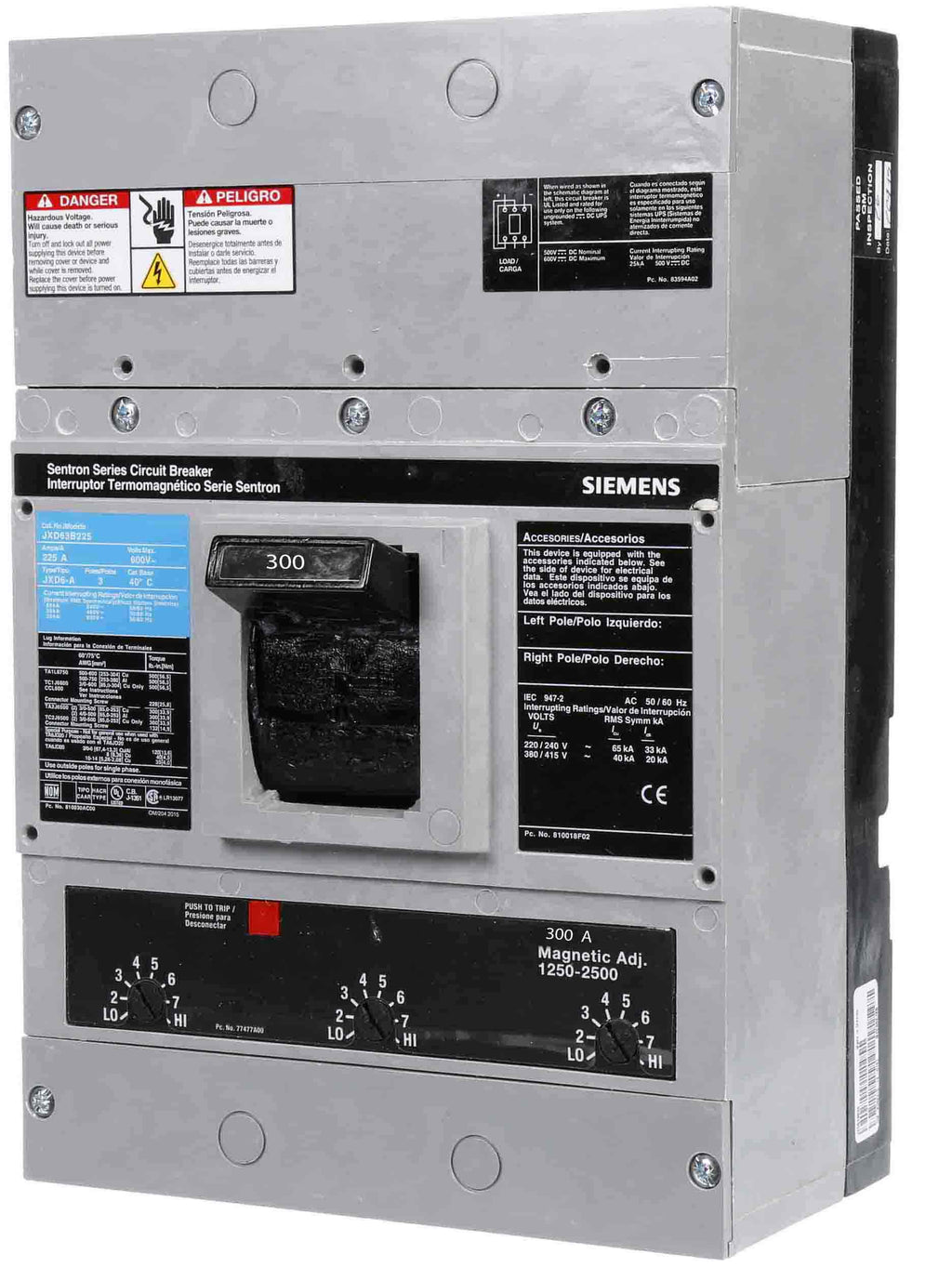

JXD63B300L is a 3 Pole, 300A, 600V thermal magnetic molded case circuit breaker from Siemens Sentron Series, designed for reliable protection in commercial and industrial applications. This Siemens JXD63B300L circuit breaker features a JD frame, 35kA interrupting capacity at 480V, and a non-interchangeable trip unit for secure operation. It is a bolt-on mounting type, suitable for 3-phase systems, and is UL listed for safety and compliance.
- Part Number: JXD63B300L
- Manufacturer: Siemens
- Series/Frame: Sentron Series, JD Frame
- Amperage: 300A
- Voltage: 600V
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 35kA @ 480V
- Trip Unit: Non-Interchangeable, Thermal Magnetic
- Protection Type: LI (Long-Time and Instantaneous)
- Operating Temperature: 40¡C
- Certifications: UL Listed
Specifications
- Part Number: JXD63B300L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : JXD
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : JD Frame
- Temp Rating : -13¡F-158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643009523
- GTIN : 00783643009523
- Country of Origin : Mexico
- Dimensions : 8.661 x 12.992 x 6.705
- Weight : 19.511
- Standards : RoHS
- Certification : UL, IEC
