Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
JXD63B250

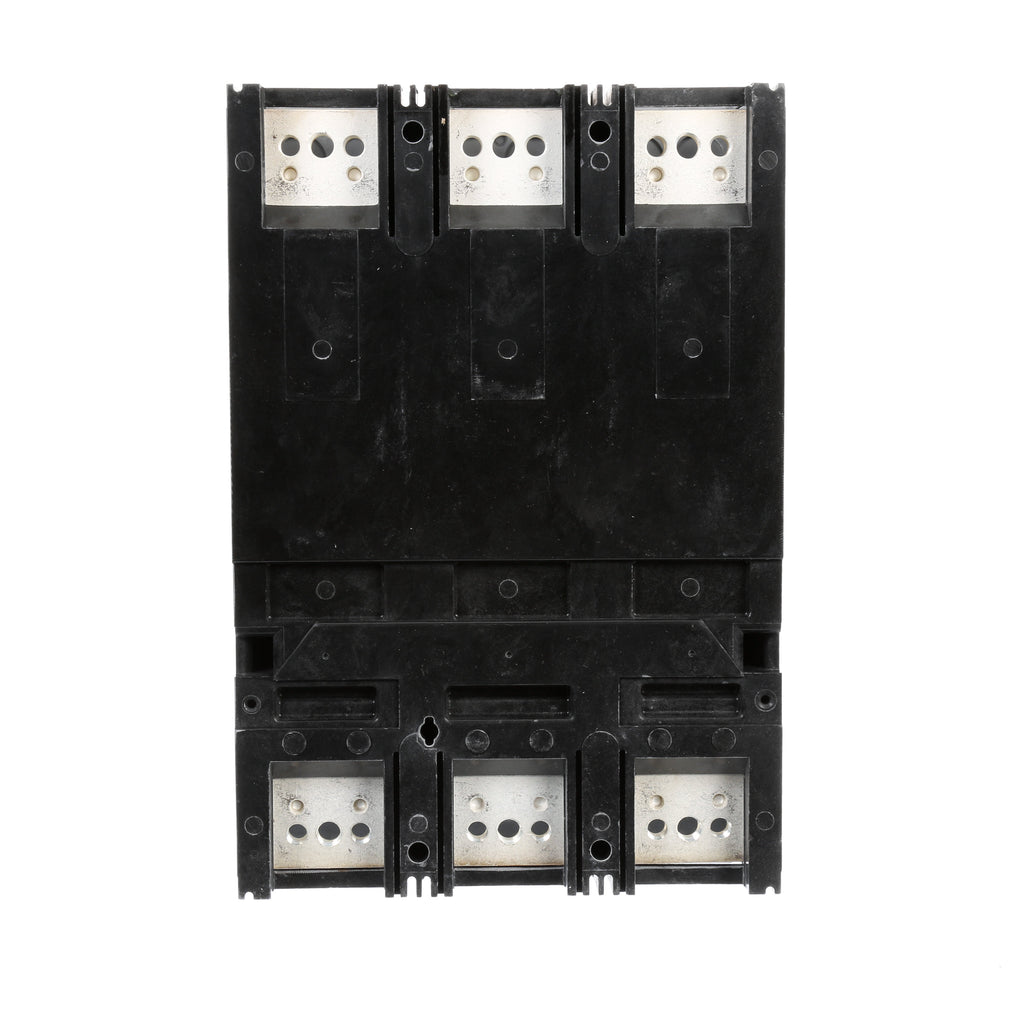

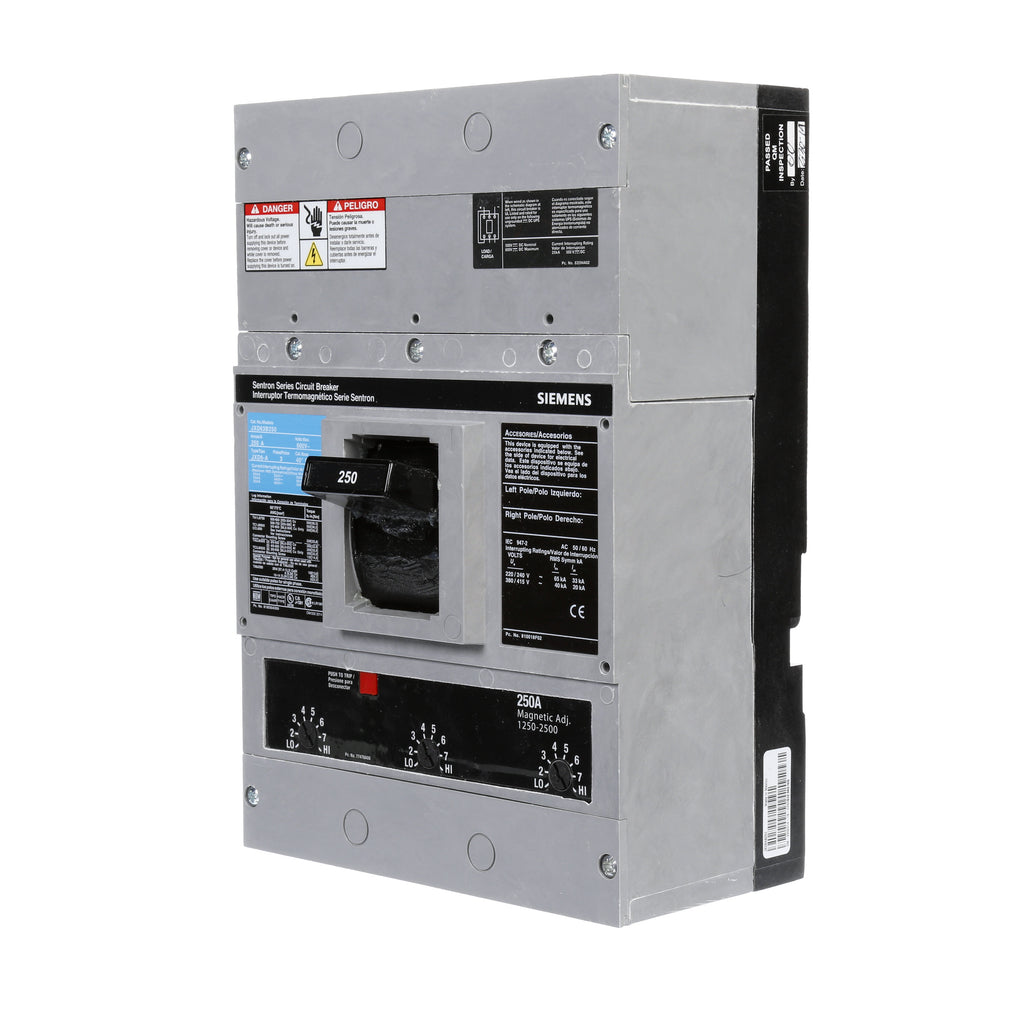

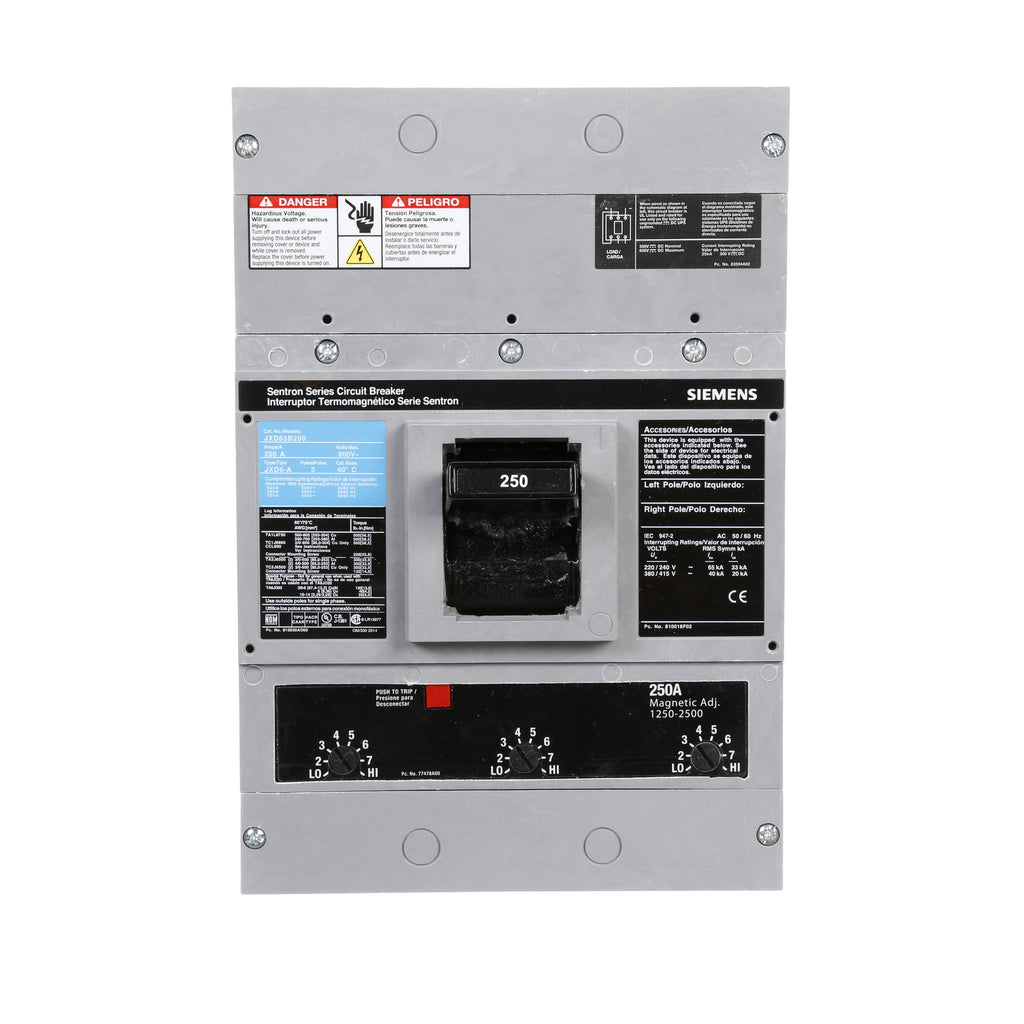

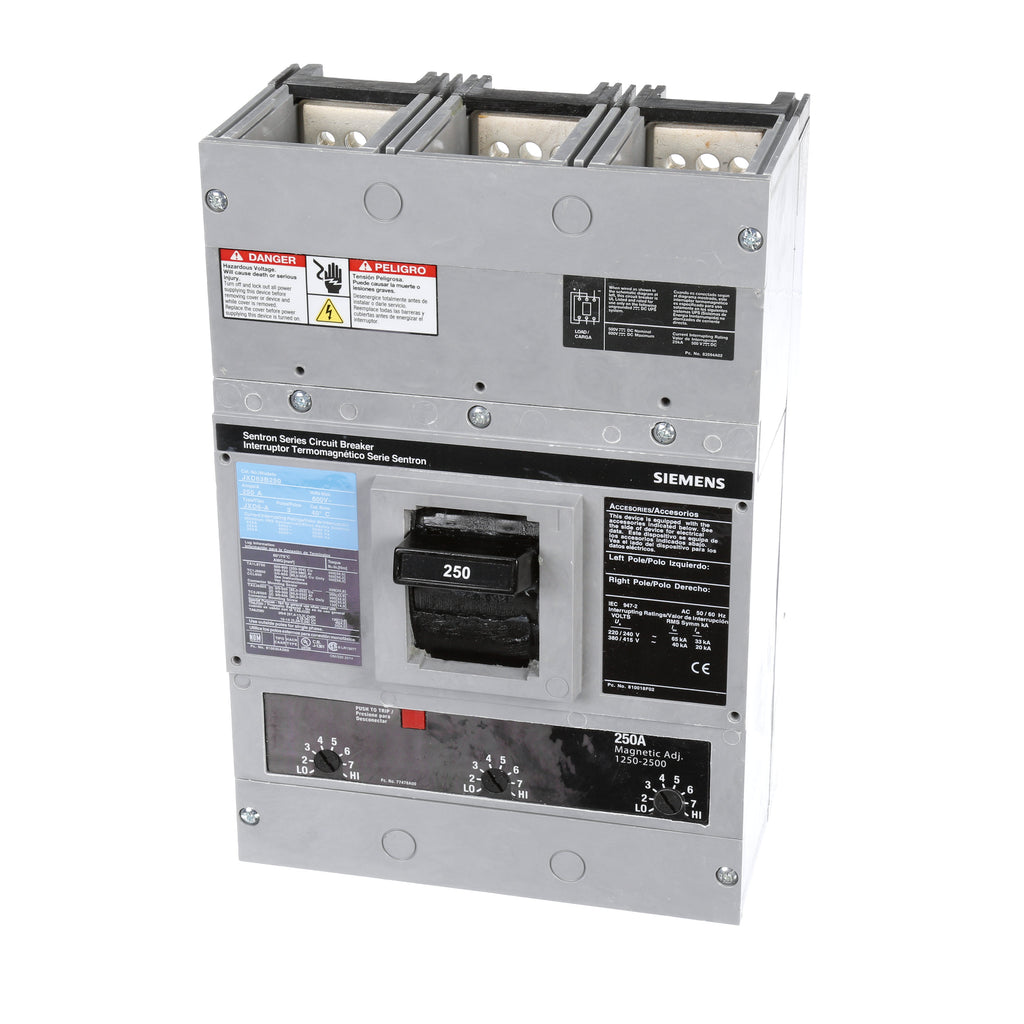

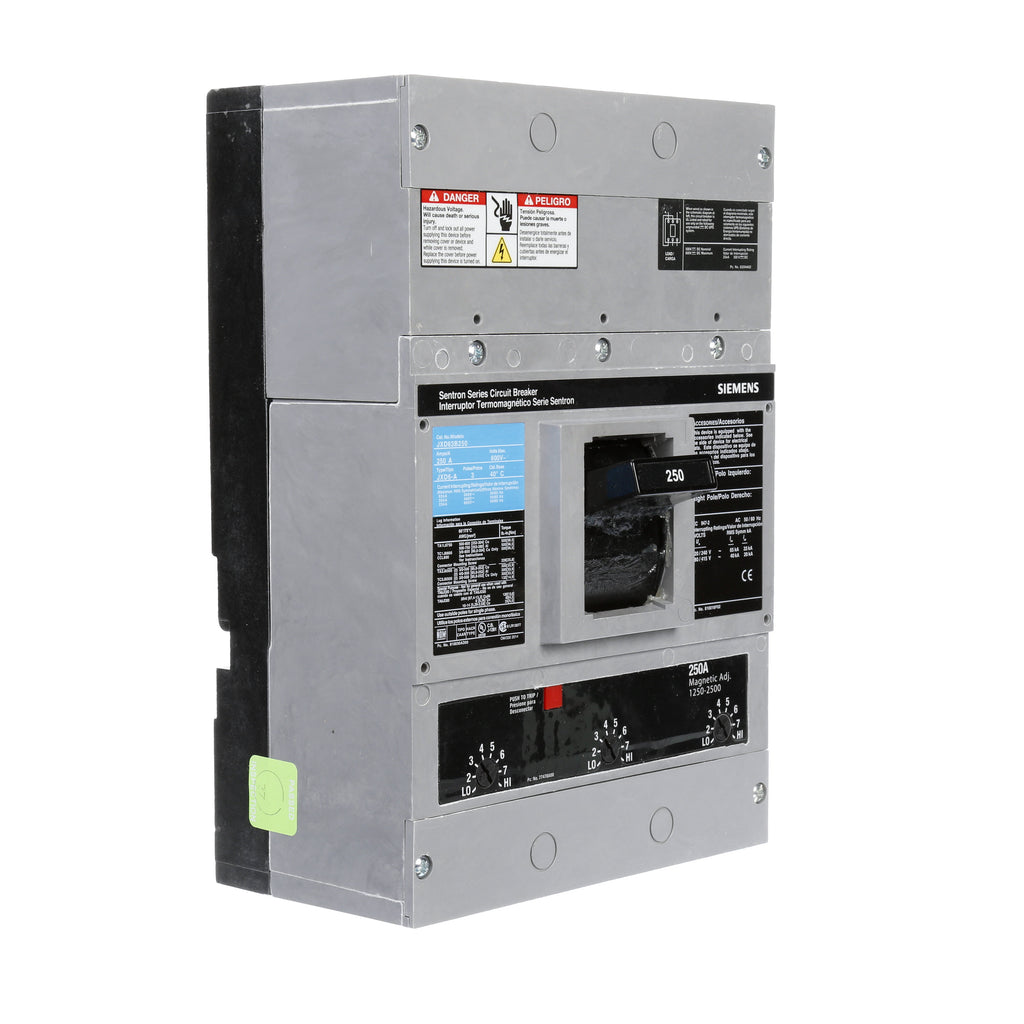

JXD63B250 is a Siemens 3-pole, 250 amp, 600 volt molded case circuit breaker designed for reliable power distribution protection.This Siemens JXD63B250 circuit breaker features a thermal magnetic trip unit, bolt-on mounting type, and JXD frame series. It is UL and IEC certified, with an interrupt rating of 25 kA at 600V and 35 kA at 480V, suitable for 3-phase applications. The breaker has no lugs installed and measures approximately 7.5 x 11 x 4 inches.
- Manufacturer: Siemens
- Part Number: JXD63B250
- Amperage: 250A
- Voltage: 600V AC
- Poles: 3
- Frame Type: JXD
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 25 kA at 600V, 35 kA at 480V
- Certifications: UL and IEC Certified
- Dimensions (W x H x D): 7.5 x 11 x 4 inches
- Phase: 3
Additional Information
Lugs are not included
Specifications
- Part Number: JXD63B250
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : JXD
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : JD Frame
- Temp Rating : -13¡F-158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643213067
- GTIN : 00783643213067
- Country of Origin : Mexico
- Dimensions : 8.661 x 12.992 x 6.699
- Weight : 18.301
- Standards : RoHS
- Certification : UL, IEC
